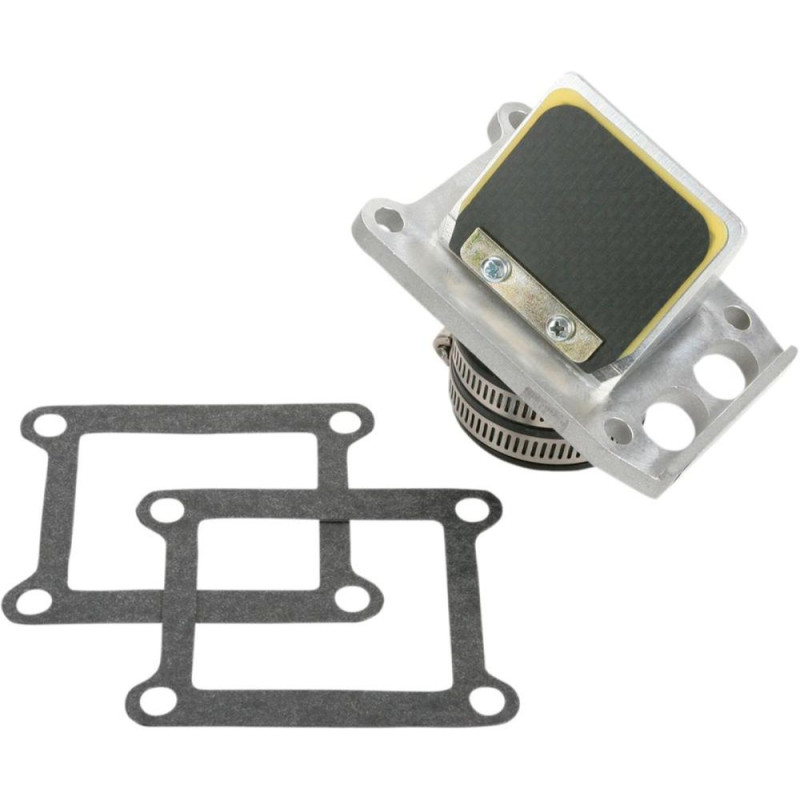

BOYESEN Reed Valve for SUZUKI RM 85 2002-2021

The BOYESEN BOYRAD-20A reed valve block is designed for SUZUKI RM 85 from 2002 to 2021. On a two-stroke, the reed valve block meters the mixture into the crankcase. A complete reed valve block replaces the original cage and petals in one go.

Specifications

• Brand: BOYESEN
• Manufacturer part number: BOYRAD-20A
• Weight: 300 g
• Engine: 2-stroke

Who is it for?

• Original cage damaged, or petals wearing out again and again.
• You want more pick-up and response when you open the throttle.

Good to know

Check the petals at every piston change and replace them as soon as a tip is chipped.

Fitting tips

1. Clean the gasket face of the cylinder or crankcase.
2. Fit the reed valve block with a new gasket, petals facing the engine.
3. Tighten the screws in a criss-cross pattern to the recommended torque.
4. Check the carburation and the colour of the spark plug after the first few rides.

Why BOYESEN?

Boyesen is an American brand specialising in the intake and the engine covers of two-stroke engines: reed petals, RAD Valve reed blocks, engine covers and Supercooler water pumps.

Spare parts and items to plan

• Reed block gasket : BOYESEN · V FORCE
• Reed petals : V FORCE · BOYESEN
• Spark plug : NGK 6801 · NGK 4832

Frequently asked questions

Do I need to change the jetting?
Usually not; check the colour of the spark plug after the first few rides and adjust if needed.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
SUZUKI RM 85 2021
SUZUKI RM 85 2020
SUZUKI RM 85 2019
SUZUKI RM 85 2018
SUZUKI RM 85 2017
SUZUKI RM 85 2016
SUZUKI RM 85 2015
SUZUKI RM 85 2014
SUZUKI RM 85 2013
SUZUKI RM 85 2012
SUZUKI RM 85 2011
SUZUKI RM 85 2010
SUZUKI RM 85 2009
SUZUKI RM 85 2008
SUZUKI RM 85 2007
SUZUKI RM 85 2006
SUZUKI RM 85 2005
SUZUKI RM 85 2004
SUZUKI RM 85 2003
SUZUKI RM 85 2002
