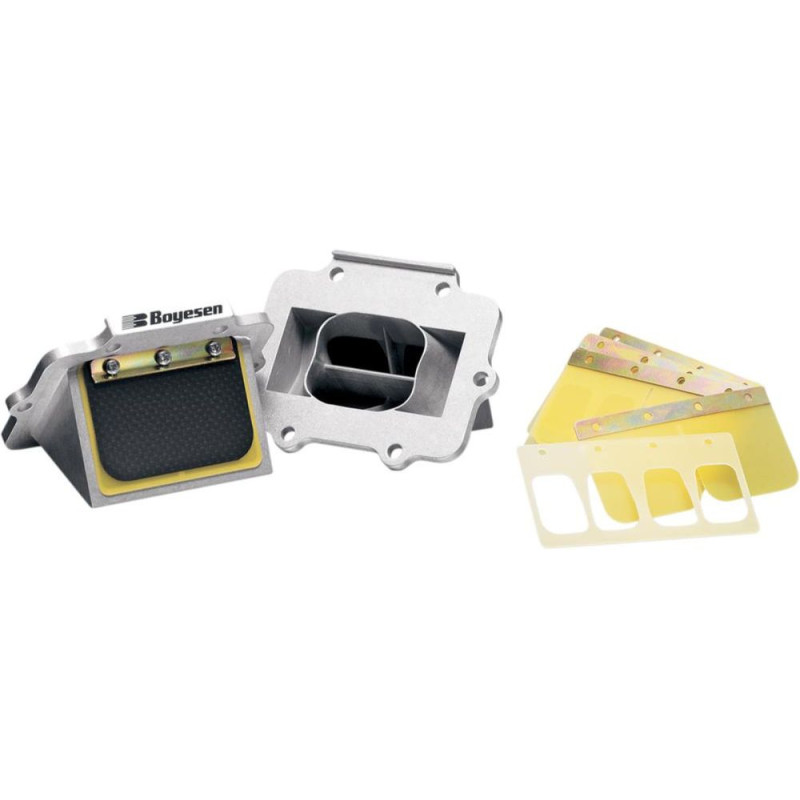

BOYESEN Reed Valve for KAWASAKI KX 65 and SUZUKI RM 65 2000-2021

The BOYESEN BOYRAD-15 reed valve block is designed for KAWASAKI KX 65 and SUZUKI RM 65 from 2000 to 2021. On a two-stroke, the reed valve block sits between the carburettor and the engine. Its petals open under suction and close again as soon as the pressure reverses: the engine's pick-up and power depend on how quickly they react and how much air gets through.

Specifications

• Brand: BOYESEN
• Manufacturer part number: BOYRAD-15
• Weight: 300 g
• Engine: 2-stroke

Who is it for?

• Original cage damaged, or petals wearing out again and again.
• You want more pick-up and response when you open the throttle.

Good to know

Check the petals at every piston change and replace them as soon as a tip is chipped.

Fitting tips

1. Clean the gasket face of the cylinder or crankcase.
2. Fit the reed valve block with a new gasket, petals facing the engine.
3. Tighten the screws in a criss-cross pattern to the recommended torque.
4. Check the carburation and the colour of the spark plug after the first few rides.

Why BOYESEN?

Boyesen is an American brand specialising in the intake and the engine covers of two-stroke engines: reed petals, RAD Valve reed blocks, engine covers and Supercooler water pumps.

Spare parts and items to plan

• Reed block gasket : V FORCE
• Reed petals : TECNIUM · BOYESEN
• Spark plug : NGK 6801 · NGK 3830

Frequently asked questions

Do I need to change the jetting?
Usually not; check the colour of the spark plug after the first few rides and adjust if needed.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
KAWASAKI KX 65 2021
KAWASAKI KX 65 2020
KAWASAKI KX 65 2019
KAWASAKI KX 65 2018
KAWASAKI KX 65 2017
KAWASAKI KX 65 2016
KAWASAKI KX 65 2015
KAWASAKI KX 65 2014
KAWASAKI KX 65 2013
KAWASAKI KX 65 2012
KAWASAKI KX 65 2011
KAWASAKI KX 65 2010
KAWASAKI KX 65 2009
KAWASAKI KX 65 2008
KAWASAKI KX 65 2007
KAWASAKI KX 65 2006
KAWASAKI KX 65 2005
KAWASAKI KX 65 2004
KAWASAKI KX 65 2003
KAWASAKI KX 65 2002
KAWASAKI KX 65 2001
KAWASAKI KX 65 2000
SUZUKI RM 65 2005
SUZUKI RM 65 2004
SUZUKI RM 65 2003
