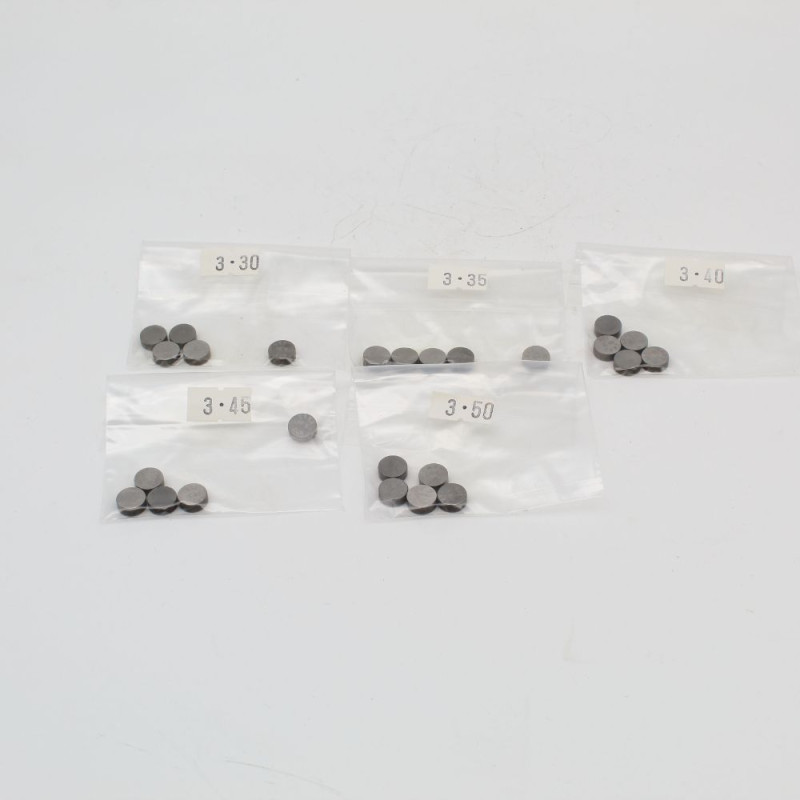

HOT CAMS Valve Shims (pack of 5) ref. HCSHIM14

The HOT CAMS HCSHIM14 set of valve shims is a universal part. On motocross four-strokes, the valve clearance is set with calibrated shims that sit on the valve stem, under the bucket. Each thickness gives a clearance: changing the shim brings the clearance back within the manufacturer's tolerances.

Specifications

• Brand: HOT CAMS
• Manufacturer part number: HCSHIM14
• Engine: 4-stroke

When to replace it?

• Valve clearance out of tolerance when checked.
• Hard hot starting: clearance too tight.
• Valve train noise: clearance too wide.

At every valve clearance check, at the intervals in the service manual, and after any valve replacement.

Fitting tips

1. Set the engine at top dead centre on the compression stroke, with the marks aligned.
2. Remove the camshaft concerned as described in the manual, then lift the shim out with a magnet.
3. Fit the new shim, number facing the valve, then refit the camshaft, respecting the timing and the cap torque.
4. Turn the engine over by hand and recheck the clearance, then refit with a valve cover gasket in good condition.

Spare parts and items to plan

• Valve cover gasket : see the selection
• Valves : see the selection
• Valve stem seals : see the selection

Frequently asked questions

Why a pack of 5?
The shims are sold in packs of 5 of the same thickness: enough to adjust several valves or keep some in reserve.

Clearance keeps closing up?
That's a sign that the valve and its seat are wearing: check the valves.

Compatibility

Universal part: check the dimensions given before ordering.
