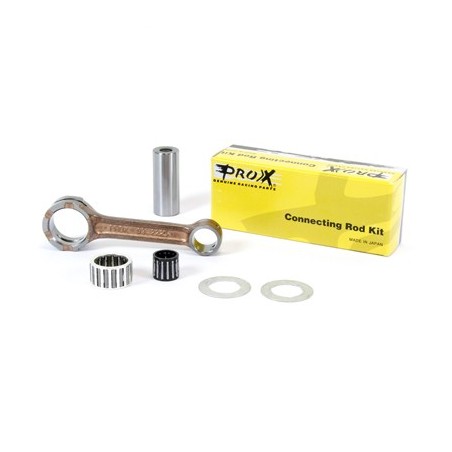

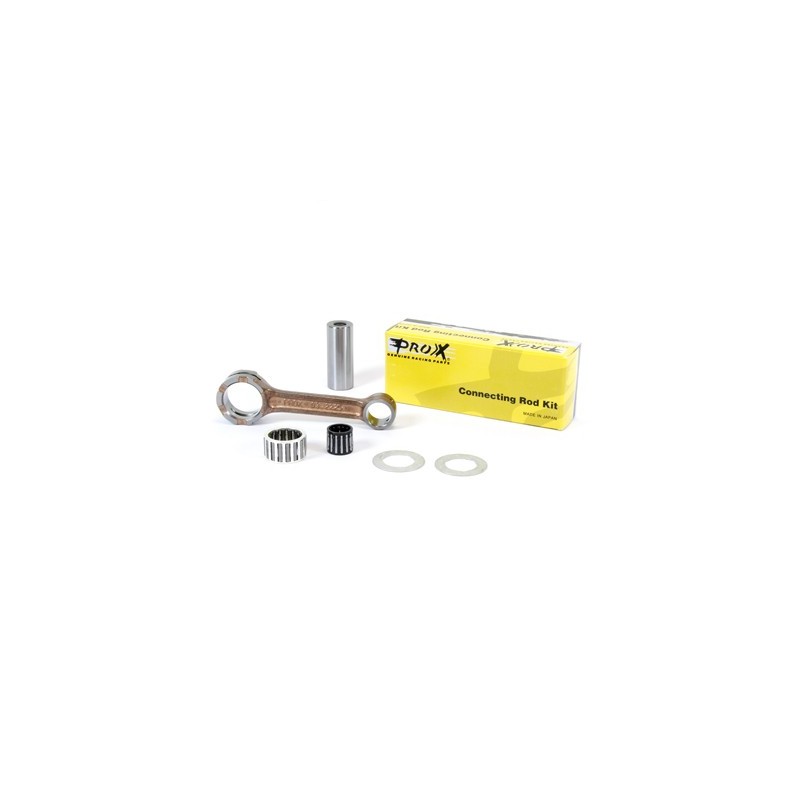

PROX offers you this complete connecting rod kit for your YAMAHA YZ/YZ-X 125 quad. This complete package will enable you to refurbish your crankshaft, which may have some play from top to bottom. Rather than changing the complete crankshaft, you'll often just need to change the connecting rod. This connecting rod is a cast model sold with its needle cage, anti-friction shims and crankpin. It has the same original dimensions. No adaptation is required. To change a connecting rod, you'll need a press, a balancing bench and a little patience. If you don't have the equipment to do this, you can send us your crankshaft so we can do the fitting ourselves. You can also e-mail us for a quote. All connecting rod dimensions are given below.

Technical data:

Center distance (mm) : 102

Connecting-rod bore (mm): 19

Connecting rod foot bore (mm): 29

Connecting-rod bore width (mm): 16

Connecting-rod bore width (mm): 17

Crankpin diameter (mm): 22

Crankpin length (mm): 54.5

Connecting-rod bushing (mm) :

Connecting-rod bushing (mm) :

Connecting-rod washers (mm): 1

Fits on :

FANTIC XX 125 2022

FANTIC XX 125 2021

FANTIC XE 125 2022

FANTIC XE 125 2021

YAMAHA YZ 125 (CE16) 2021

YAMAHA YZ 125 (CE16) 2020

YAMAHA YZ 125 (CE16) 2019

YAMAHA YZ 125 (CE16) 2017

YAMAHA YZ 125 (CE16) 2015

YAMAHA YZ 125 (CE16) 2014

YAMAHA YZ 125 (CE16) 2013

YAMAHA YZ 125 (CE16) 2012

YAMAHA YZ 125 (CE16) 2011

YAMAHA YZ 125 (CE16) 2010

YAMAHA YZ 125 (CE16) 2009

YAMAHA YZ 125 (CE16) 2008

YAMAHA YZ 125 (CE16) 2007

YAMAHA YZ 125 (CE16) 2006

YAMAHA TT-R 125 LW BIG WHEELS E (CE21) 2021

YAMAHA YZ 125 (CE15) 2005

YAMAHA YZ 125 (CE16) 2018

YAMAHA YZ 125 (CE16) 2016
