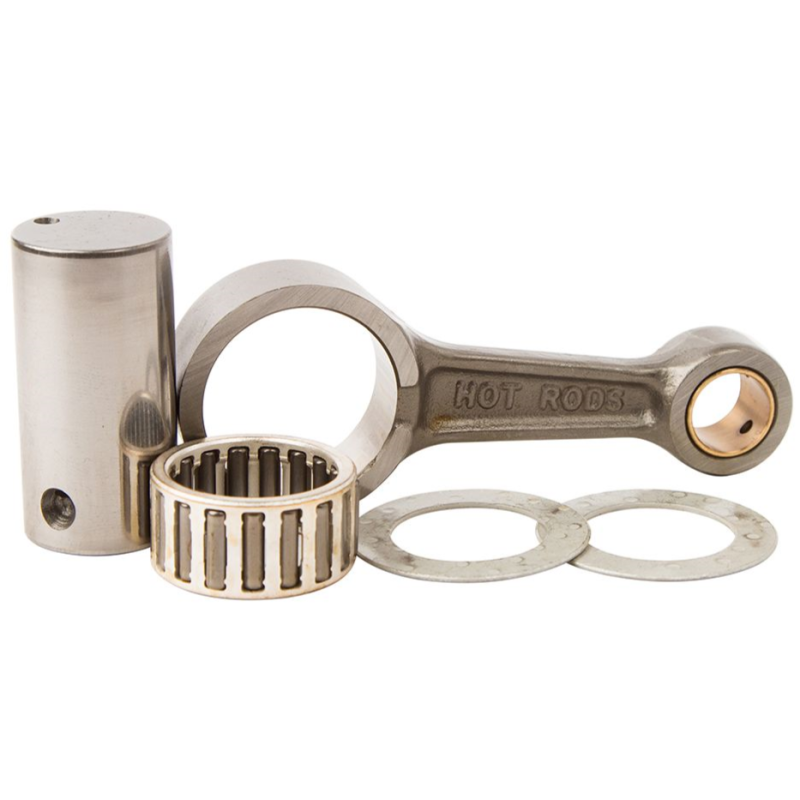

HOT RODS offers you this complete connecting rod kit for your HONDA CRF 150R. This complete package will enable you to refurbish your crankshaft, which may have some play from top to bottom. Rather than changing the complete crankshaft, you'll often just need to change the connecting rod. This connecting rod is a cast model sold with its connecting-rod needle cage, anti-friction shims and crank pin. It has the same original dimensions. No adaptation is required. To change a connecting rod, you'll need a press, a balancing bench and a little patience. If you don't have the equipment to do this, you can send us your crankshaft so we can do the fitting ourselves. You can also e-mail us for a quote. All connecting rod dimensions are given below.

Technical data :

Center-to-center length (mm): 75.4

Small pin bore (mm): 14

Connecting rod head bore (mm): 32

Small pin bore width (mm): 14

Connecting-rod bore width (mm): 15.75

Crank pin Ø (mm): 25

Crankpin length (mm): 50

Small pin bearing (mm) :

Connecting rod head bearing (mm): 25 x 32 x 15.7

Washers (mm): 0.95

Fits on :

HONDA CRF 150 R 2007

HONDA CRF 150 R 2008

HONDA CRF 150 R 2009

HONDA CRF 150 R 2010

HONDA CRF 150 R 2011

HONDA CRF 150 R 2012

HONDA CRF 150 R 2013

HONDA CRF 150 R 2014

HONDA CRF 150 R 2015

HONDA CRF 150 R 2016

HONDA CRF 150 R 2017

HONDA CRF 150 R 2018

HONDA CRF 150 R 2019

HONDA CRF 150 R 2020

HONDA CRF 150 R 2021

HONDA CRF 150 R 2022

HONDA CRF 150R 2023

HONDA CRF 150 R 2024
