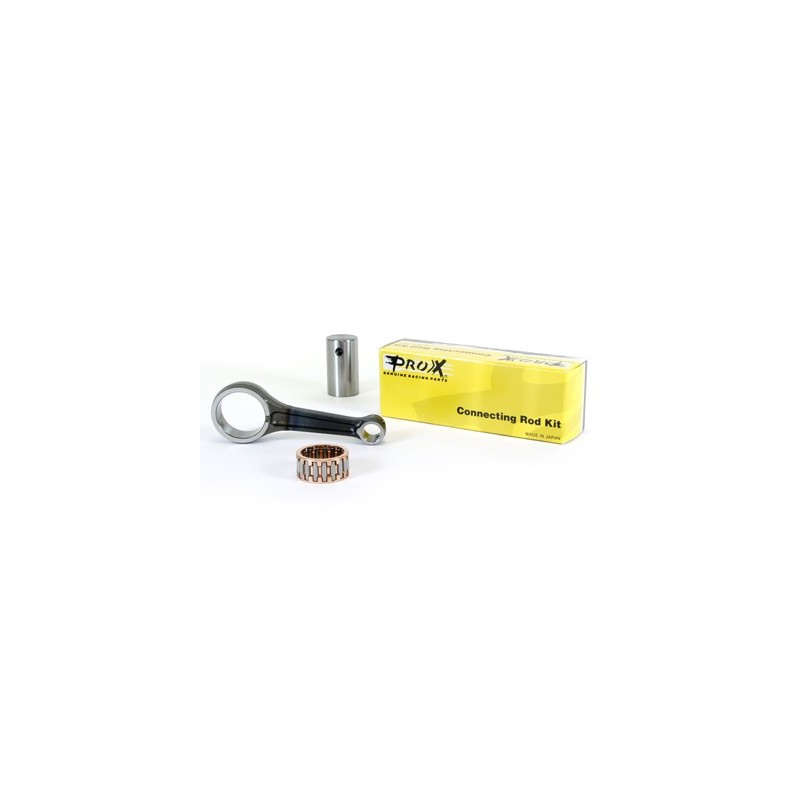

PROX offers you this complete connecting rod kit for your HONDA XL125R and HONDA XR200R. This complete pack will enable you to refurbish your crankshaft, which may have some play from top to bottom. Rather than replacing the complete crankshaft, you'll often just need to change the connecting rod. This connecting rod is a cast model sold with its connecting-rod needle cage, anti-friction shims and crank pin. It has the same original dimensions. No adaptation is required. To change a connecting rod, you'll need a press, a balancing bench and a little patience. If you don't have the equipment to do this, you can send us your crankshaft so we can do the fitting ourselves. You can also e-mail us for a quote. All connecting rod dimensions are given below.

Technical data :

Center distance (mm): 103.5

Short side bore (mm): 15

Connecting rod head bore (mm): 38

Bore width short side (mm): 18

Connecting-rod bore width (mm): 18

Crank pin Ø (mm): 30

Crankpin length (mm): 54

Short-side bearing (mm) :

Connecting rod head bearing (mm) :

Washers (mm): 1

Fits on :

HONDA XL125R

HONDA XR200R
