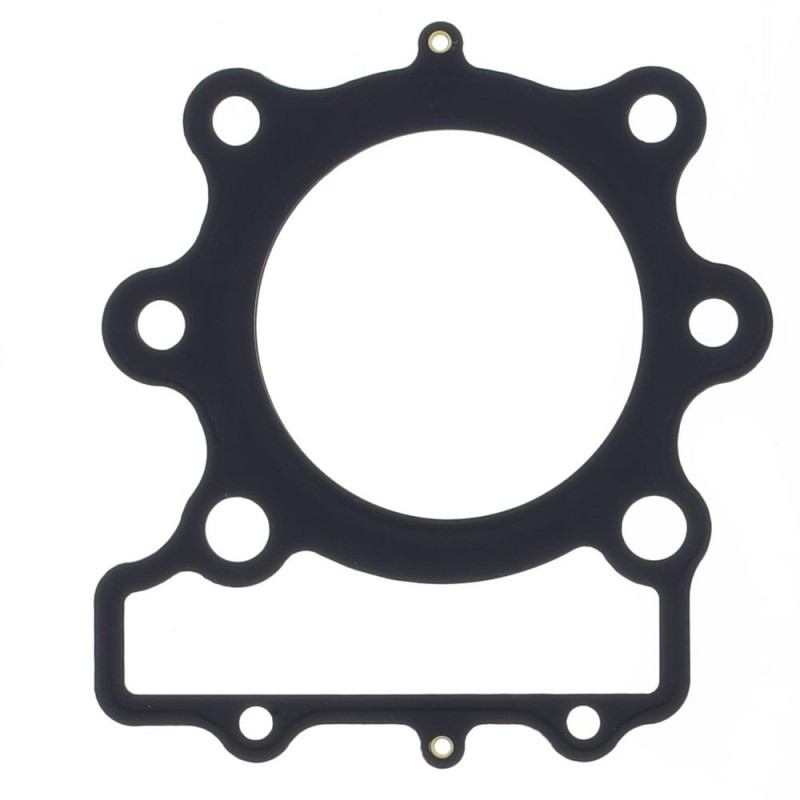

ATHENA Cylinder Head Gasket for YAMAHA TT 350 1985-1995

On YAMAHA TT 350 from 1985 to 1995, the ATHENA S410485001035 head gasket fits in place of the original part. Between the cylinder head and the cylinder, the head gasket contains the pressure of every explosion. Once tightened, it takes the shape of the parts: on reassembly you need a new gasket to keep full compression.

Specifications

• Brand: ATHENA
• Manufacturer part number: S410485001035
• EAN code: 8051757125258
• Thickness: OE
• Weight: 90 g
• Engine: 4-stroke

When to replace it?

• Loss of compression, less lively engine.
• Black marks or hissing at the head/cylinder joint.

Every time the cylinder head is removed, and therefore at every piston change.

Fitting tips

1. Clean the cylinder head and cylinder faces without scratching them.
2. Fit the gasket dry, the right way round and centred on the studs.
3. No sealant on the gasket.
4. Tighten the cylinder head in a criss-cross pattern, in several stages, to the manufacturer's torque.
5. Take the opportunity to replace the spark plug.

Why ATHENA?

Founded in 1973 near Vicenza, Athena is an Italian engine gasket specialist that has made its gaskets on its own production lines since day one, as well as a renowned manufacturer of pistons and cylinder kits. The brand supplies original equipment to manufacturers such as KTM, Ducati, Fantic, Piaggio and Triumph, and is a partner of the MXGP motocross world championship.

Spare parts and items to plan

• Top-end gasket kit : CENTAURO
• Piston : see the selection
• Spark plug : NGK 2120 · NGK 6681

Frequently asked questions

Is the gasket enough to refit the cylinder head?
It replaces the head gasket only. If you also remove the cylinder, go for a complete top end gasket kit instead.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
YAMAHA TT 350 1995
YAMAHA TT 350 1994
YAMAHA TT 350 1993
YAMAHA TT 350 1992
YAMAHA TT 350 1991
YAMAHA TT 350 1990
YAMAHA TT 350 1989
YAMAHA TT 350 1988
YAMAHA TT 350 1987
YAMAHA TT 350 1986
YAMAHA TT 350 1985
