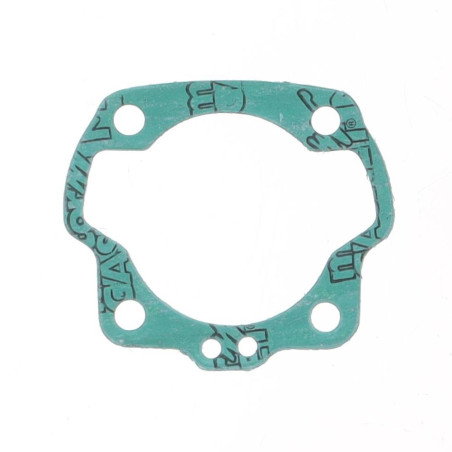

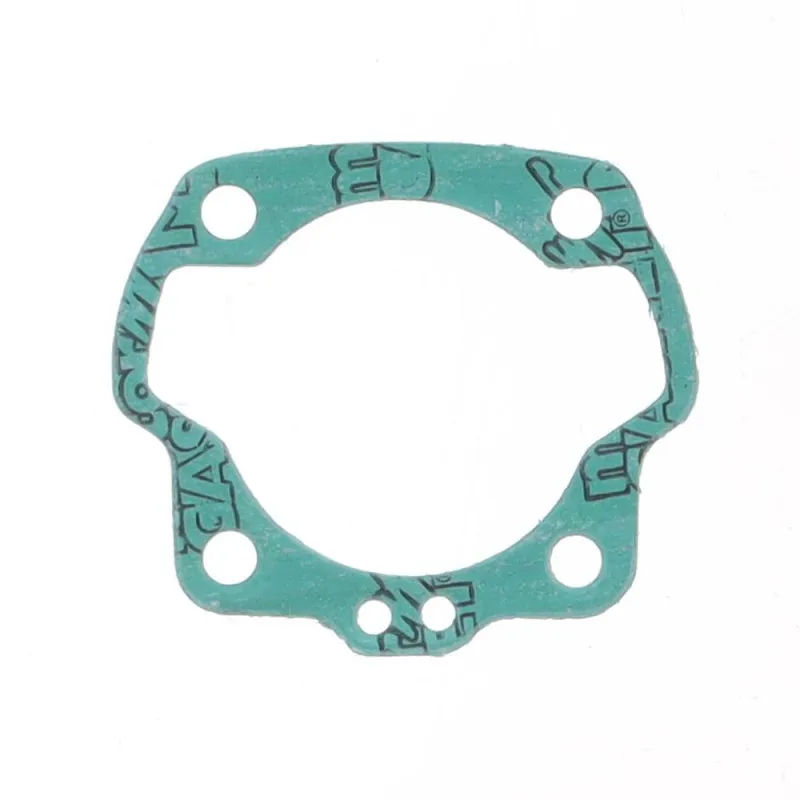

ATHENA Cylinder Base Gasket for SUZUKI JR 50 1978-1995

On SUZUKI JR 50 from 1978 to 1995, the ATHENA S410510006070 cylinder base gasket fits in place of the original part. Fitted under the cylinder, the base gasket is more than just a seal: its thickness sets the height of the cylinder, and with it the engine's squish and compression.

Key features

• Several thicknesses available for the same bike.
• The right tool for setting squish, compression and timing, according to Athena.

Specifications

• Brand: ATHENA
• Manufacturer part number: S410510006070
• EAN code: 8051757069965
• Thickness: OE
• Weight: 50 g
• Engine: 2-stroke

When to replace it?

• Oil or coolant seeping at the base of the cylinder.
• Gasket crushed or torn on removal.

Every time the cylinder is removed: a crushed base gasket can't be reused.

Fitting tips

1. Clean the crankcase face and the base of the cylinder without scratching them.
2. Fit the gasket dry, centred on the studs.
3. Tighten the cylinder in a criss-cross pattern to the manufacturer's torque.
4. If you have changed the thickness, measure the squish before refitting the cylinder head with a new head gasket.

Why ATHENA?

Founded in 1973 near Vicenza, Athena is an Italian engine gasket specialist that has made its gaskets on its own production lines since day one, as well as a renowned manufacturer of pistons and cylinder kits. The brand supplies original equipment to manufacturers such as KTM, Ducati, Fantic, Piaggio and Triumph, and is a partner of the MXGP motocross world championship.

Spare parts and items to plan

• Top-end gasket kit : CENTAURO · ATHENA
• Piston : VERTEX 22491 · VERTEX 22491
• Piston rings : PROX · VERTEX
• Coolant : LIQUI MOLY 1 L · TWIN AIR

Frequently asked questions

Which thickness should I choose?
The same as your original gasket, unless you are deliberately adjusting the squish.

Should the other gaskets be replaced?
Yes, as soon as the cylinder is removed: a top end gasket kit includes all the gaskets that need replacing.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
SUZUKI JR 50 1995
SUZUKI JR 50 1994
SUZUKI JR 50 1993
SUZUKI JR 50 1992
SUZUKI JR 50 1991
SUZUKI JR 50 1990
SUZUKI JR 50 1989
SUZUKI JR 50 1988
SUZUKI JR 50 1987
SUZUKI JR 50 1986
SUZUKI JR 50 1985
SUZUKI JR 50 1984
SUZUKI JR 50 1983
SUZUKI JR 50 1982
SUZUKI JR 50 1981
SUZUKI JR 50 1980
SUZUKI JR 50 1979
SUZUKI JR 50 1978
