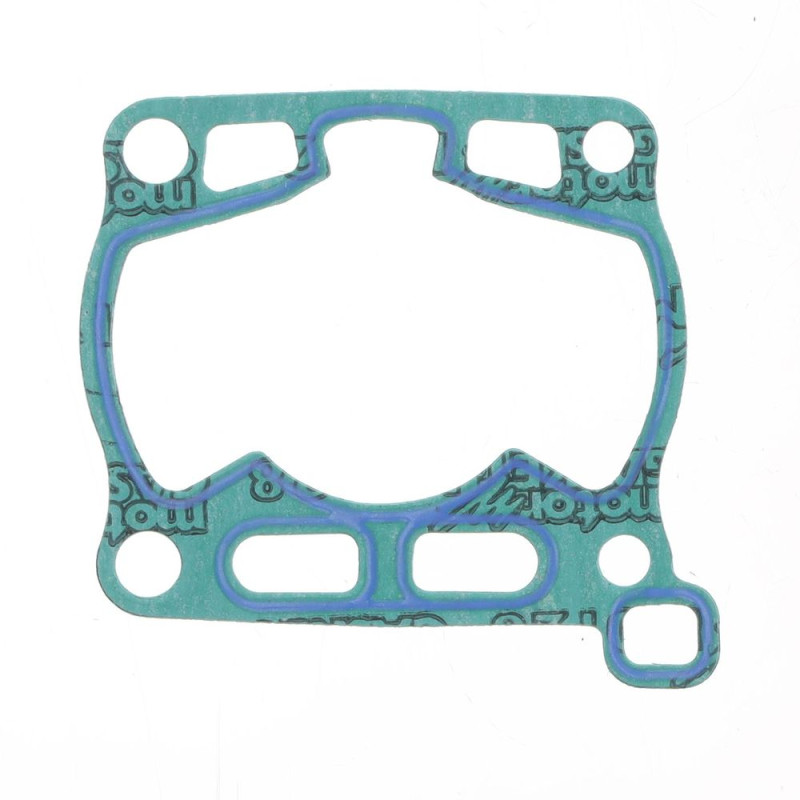

ATHENA Cylinder Base Gasket for SUZUKI RM 85 2002-2023

ATHENA offers this cylinder base gasket for SUZUKI RM 85 2002-2023. The base gasket sits under the cylinder, on the crankcase. Crushed when tightened, it cannot be reused: replace it every time the cylinder comes off.

Why does the thickness matter?

The benefits:

• The OE thickness keeps the cylinder height intended by the manufacturer.
• Another thickness lets you correct piston-to-head clearance after machining or adjust the port timing of a 2-stroke.
• A new gasket keeps the bottom end sealed against oil and gases.

Why choose ATHENA?

Athena, founded in 1973 by Giovanni Mancassola near Vicenza and based in Alonte (Italy), designs gaskets, pistons and cylinder kits; it supplies original equipment to manufacturers such as KTM, Ducati, Fantic and Triumph.

When should you replace the base gasket on your SUZUKI RM 85?

Every time the cylinder comes off: piston change, top-end rebuild or cylinder inspection. Oil or mixture seeping at the base of the cylinder also points to a tired gasket.

No manufacturer figure in hours for this model. Cross-Mania guideline: compression check every 15 h of hard use and every 30 h of leisure riding.

Specifications and fitting tips

• Manufacturer part numbers: S410510006154 (OE), S410510006218 (0.40 mm)

Choose the thickness from the list. "OE" is the factory thickness; another thickness is used to set the cylinder height after a rebuild (piston-to-head clearance, port timing on a 2-stroke).

Cross-Mania tip: Choose the OE thickness if the cylinder and head have not been machined; if in doubt, measure the squish with solder wire before final assembly.

Spare parts and items to plan

• Top-end gasket kit : PROX · MOOSE
• Piston : WISECO · PROX
• Piston rings : WISECO · VERTEX
• Coolant : LIQUI MOLY 1 L · TWIN AIR

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
SUZUKI RM 85 2023
SUZUKI RM 85 2022
SUZUKI RM 85 2021
SUZUKI RM 85 2020
SUZUKI RM 85 2019
SUZUKI RM 85 2018
SUZUKI RM 85 2017
SUZUKI RM 85 2016
SUZUKI RM 85 2015
SUZUKI RM 85 2014
SUZUKI RM 85 2013
SUZUKI RM 85 2012
SUZUKI RM 85 2011
SUZUKI RM 85 2010
SUZUKI RM 85 2009
SUZUKI RM 85 2008
SUZUKI RM 85 2007
SUZUKI RM 85 2006
SUZUKI RM 85 2005
SUZUKI RM 85 2004
SUZUKI RM 85 2003
SUZUKI RM 85 2002
