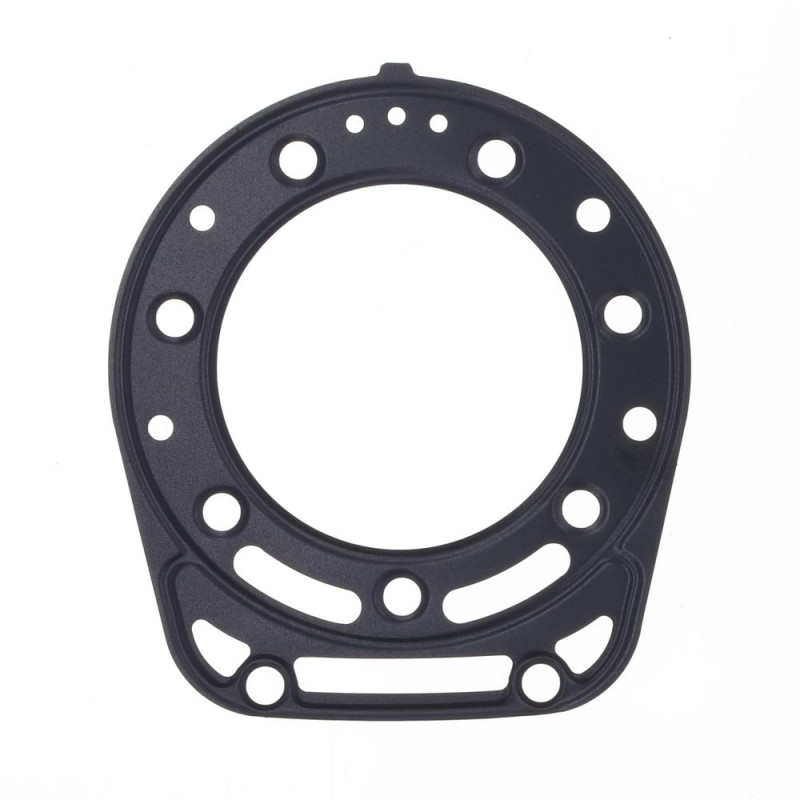

ATHENA Cylinder Head Gasket for KAWASAKI KX 500 1989-2004

The ATHENA S410250001113 head gasket is designed for KAWASAKI KX 500 from 1989 to 2004. The head gasket seals between the cylinder head and the cylinder: it holds in the combustion pressure and, depending on the engine, the coolant. Crushed when tightened, it can never be reused.

Specifications

• Brand: ATHENA
• Manufacturer part number: S410250001113
• EAN code: 8051757211241
• Thickness: 0.40 mm
• Weight: 50 g
• Engine: 2-stroke

When to replace it?

• Loss of compression, less lively engine.
• Black marks or hissing at the head/cylinder joint.
• Coolant level dropping, bubbles in the radiator.

Every time the cylinder head is removed, and therefore at every piston change.

Fitting tips

1. Clean the cylinder head and cylinder faces without scratching them.
2. Fit the gasket dry, the right way round, centred on the studs and the coolant holes.
3. No sealant on the gasket.
4. Tighten the cylinder head in a criss-cross pattern, in several stages, to the manufacturer's torque.
5. Refill the coolant and take the opportunity to replace the spark plug.

Why ATHENA?

Athena, an Italian company founded in 1973 near Vicenza, designs gaskets, pistons and cylinder kits for motorcycles. An OEM supplier to KTM, Ducati, Fantic, Piaggio and Triumph and a partner of the MXGP world championship, it develops its parts on the test bench and on the track with racing teams.

Spare parts and items to plan

• Top-end gasket kit : PROX · ATHENA
• Piston : WOSSNER · WISECO
• Coolant : LIQUI MOLY 1 L · TWIN AIR
• Spark plug : see the selection

Frequently asked questions

Is the gasket enough to refit the cylinder head?
It replaces the head gasket only. If you also remove the cylinder, go for a complete top end gasket kit instead.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
KAWASAKI KX 500 2004
KAWASAKI KX 500 2003
KAWASAKI KX 500 2002
KAWASAKI KX 500 2001
KAWASAKI KX 500 2000
KAWASAKI KX 500 1999
KAWASAKI KX 500 1998
KAWASAKI KX 500 1997
KAWASAKI KX 500 1996
KAWASAKI KX 500 1995
KAWASAKI KX 500 1994
KAWASAKI KX 500 1993
KAWASAKI KX 500 1992
KAWASAKI KX 500 1991
KAWASAKI KX 500 1990
KAWASAKI KX 500 1989
