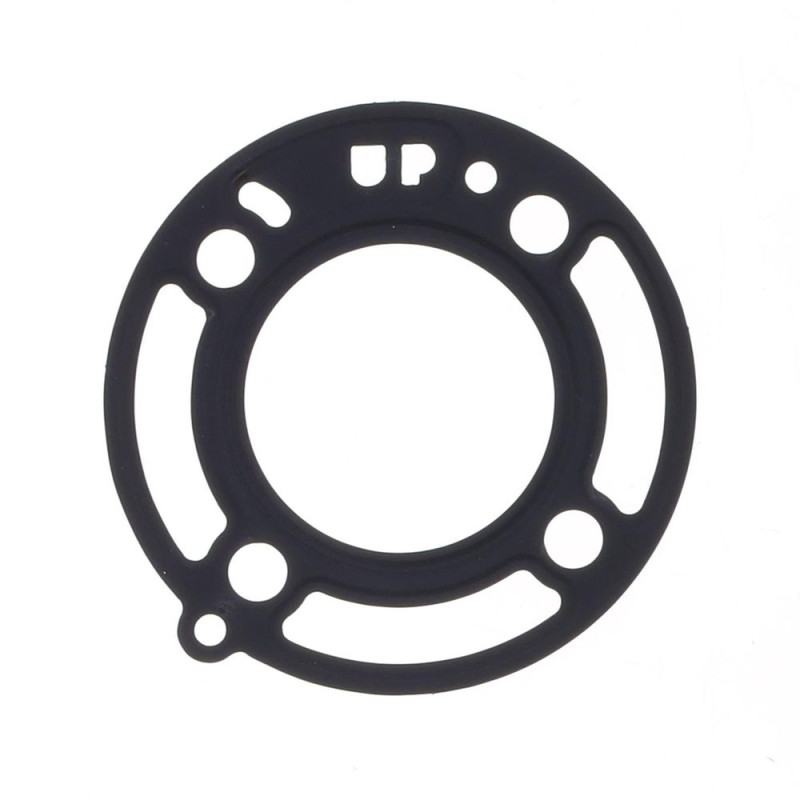

ATHENA Cylinder Head Gasket for KAWASAKI KX 65 and SUZUKI RM 65 2000-2025

The ATHENA S410250001117 head gasket is designed for KAWASAKI KX 65 and SUZUKI RM 65 from 2000 to 2025. The head gasket seals between the cylinder head and the cylinder: it holds in the combustion pressure and, depending on the engine, the coolant. Crushed when tightened, it can never be reused.

Specifications

• Brand: ATHENA
• Manufacturer part number: S410250001117
• EAN code: 8051757181421
• Thickness: 0.25 mm
• Weight: 50 g
• Engine: 2-stroke

When to replace it?

• Loss of compression, less lively engine.
• Black marks or hissing at the head/cylinder joint.
• Coolant level dropping, bubbles in the radiator.

Every time the cylinder head is removed, and therefore at every piston change.

Fitting tips

1. Clean the cylinder head and cylinder faces without scratching them.
2. Fit the gasket dry, the right way round, centred on the studs and the coolant holes.
3. No sealant on the gasket.
4. Tighten the cylinder head in a criss-cross pattern, in several stages, to the manufacturer's torque.
5. Refill the coolant and take the opportunity to replace the spark plug.

Why ATHENA?

Athena, an Italian company founded in 1973 near Vicenza, designs gaskets, pistons and cylinder kits for motorcycles. An OEM supplier to KTM, Ducati, Fantic, Piaggio and Triumph and a partner of the MXGP world championship, it develops its parts on the test bench and on the track with racing teams.

Spare parts and items to plan

• Top-end gasket kit : ATHENA · PROX
• Piston : METEOR · WISECO
• Coolant : LIQUI MOLY 1 L · TWIN AIR
• Spark plug : NGK 6801 · NGK 3830

Frequently asked questions

Is the gasket enough to refit the cylinder head?
It replaces the head gasket only. If you also remove the cylinder, go for a complete top end gasket kit instead.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
KAWASAKI KX 65 2025
KAWASAKI KX 65 2024
KAWASAKI KX 65 2023
KAWASAKI KX 65 2022
KAWASAKI KX 65 2021
KAWASAKI KX 65 2020
KAWASAKI KX 65 2019
KAWASAKI KX 65 2018
KAWASAKI KX 65 2017
KAWASAKI KX 65 2016
KAWASAKI KX 65 2015
KAWASAKI KX 65 2014
KAWASAKI KX 65 2013
KAWASAKI KX 65 2012
KAWASAKI KX 65 2011
KAWASAKI KX 65 2010
KAWASAKI KX 65 2009
KAWASAKI KX 65 2008
KAWASAKI KX 65 2007
KAWASAKI KX 65 2006
KAWASAKI KX 65 2005
KAWASAKI KX 65 2004
KAWASAKI KX 65 2003
KAWASAKI KX 65 2002
KAWASAKI KX 65 2001
KAWASAKI KX 65 2000
SUZUKI RM 65 2006
SUZUKI RM 65 2005
SUZUKI RM 65 2004
SUZUKI RM 65 2003
