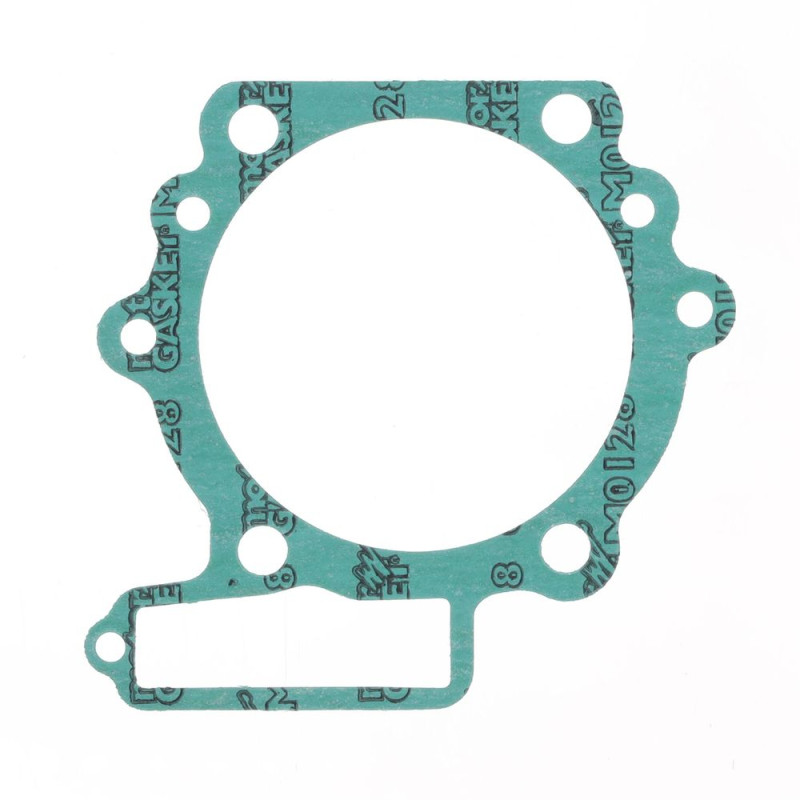

ATHENA Cylinder Base Gasket for KAWASAKI KL 600, KLR 650 1984-2010

ATHENA offers this cylinder base gasket for KAWASAKI KL 600, KLR 650 1984-2010. The base gasket sits under the cylinder, on the crankcase. Crushed when tightened, it cannot be reused: replace it every time the cylinder comes off.

Why does the thickness matter?

The benefits:

• The OE thickness keeps the cylinder height intended by the manufacturer.
• Another thickness lets you correct piston-to-head clearance after machining or adjust the port timing of a 2-stroke.
• A new gasket keeps the bottom end sealed against oil and gases.

Why choose ATHENA?

Athena, founded in 1973 by Giovanni Mancassola near Vicenza and based in Alonte (Italy), designs gaskets, pistons and cylinder kits; it supplies original equipment to manufacturers such as KTM, Ducati, Fantic and Triumph.

When should you replace the base gasket on your KAWASAKI KLR 650?

Every time the cylinder comes off: piston change, top-end rebuild or cylinder inspection. Oil or mixture seeping at the base of the cylinder also points to a tired gasket.

No manufacturer figure in hours for this model. Cross-Mania guideline: compression check every 20 h of hard use and every 40 h of leisure riding.

Specifications and fitting tips

• Thickness : OE
• Manufacturer part number: S410250006012

Cross-Mania tip: Choose the OE thickness if the cylinder and head have not been machined; if in doubt, measure the squish with solder wire before final assembly.

Spare parts and items to plan

• Top-end gasket kit : ATHENA S410250015001 · ATHENA S410250015026
• Piston : see the selection
• Piston rings : see the selection
• Coolant : LIQUI MOLY 1 L · TWIN AIR

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
KAWASAKI KL 600 1990
KAWASAKI KL 600 1989
KAWASAKI KL 600 1988
KAWASAKI KL 600 1987
KAWASAKI KL 600 1986
KAWASAKI KL 600 1985
KAWASAKI KL 600 1984
KAWASAKI KLR 650 2010
KAWASAKI KLR 650 2009
KAWASAKI KLR 650 2008
KAWASAKI KLR 650 2007
KAWASAKI KLR 650 2006
KAWASAKI KLR 650 2005
KAWASAKI KLR 650 2004
KAWASAKI KLR 650 2003
KAWASAKI KLR 650 2002
KAWASAKI KLR 650 2001
KAWASAKI KLR 650 2000
KAWASAKI KLR 650 1999
KAWASAKI KLR 650 1998
KAWASAKI KLR 650 1997
KAWASAKI KLR 650 1996
KAWASAKI KLR 650 1995
