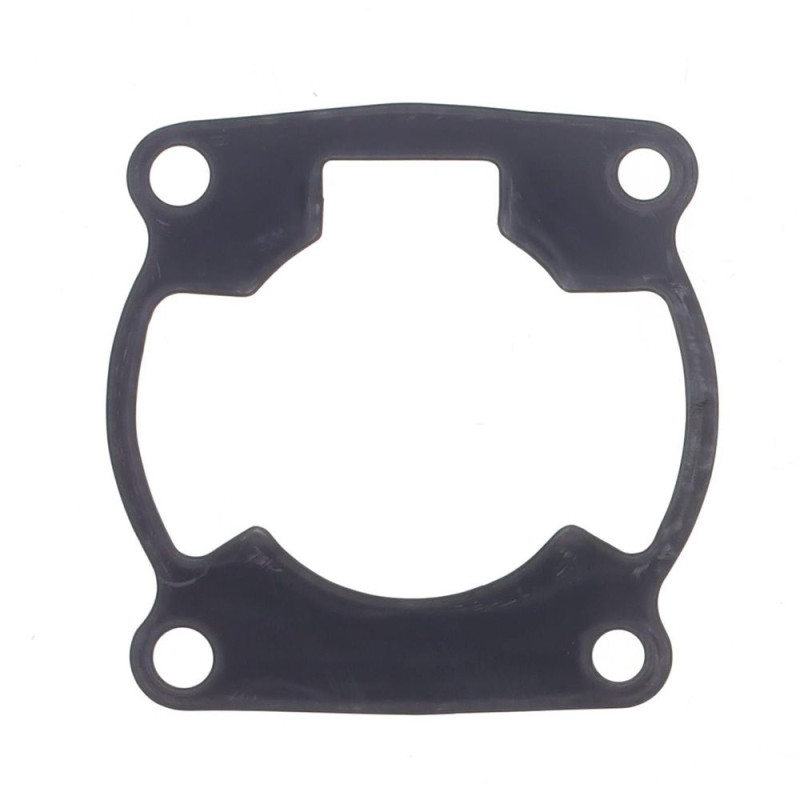

ATHENA Cylinder Base Gasket for KAWASAKI KX 80, KX 85, KX 100, KX 112 and SUZUKI RM 100 1998-2025

ATHENA offers this cylinder base gasket for KAWASAKI KX 80, KX 85, KX 100, KX 112 and SUZUKI RM 100 1998-2025. The base gasket sits under the cylinder, on the crankcase. Crushed when tightened, it cannot be reused: replace it every time the cylinder comes off.

Why does the thickness matter?

The benefits:

• The OE thickness keeps the cylinder height intended by the manufacturer.
• Another thickness lets you correct piston-to-head clearance after machining or adjust the port timing of a 2-stroke.
• A new gasket keeps the bottom end sealed against oil and gases.

Why choose ATHENA?

Athena, founded in 1973 by Giovanni Mancassola near Vicenza and based in Alonte (Italy), designs gaskets, pistons and cylinder kits; it supplies original equipment to manufacturers such as KTM, Ducati, Fantic and Triumph.

When should you replace the base gasket on your KAWASAKI KX 85?

Every time the cylinder comes off: piston change, top-end rebuild or cylinder inspection. Oil or mixture seeping at the base of the cylinder also points to a tired gasket.

No manufacturer figure in hours for this model. Cross-Mania guideline: compression check every 15 h of hard use and every 30 h of leisure riding.

Specifications and fitting tips

• Manufacturer part numbers: S410250006085 (OE), S410250006104 (0.10 mm), S410250006105 (0.20 mm), S410250006092 (0.30 mm), S410250006093 (0.40 mm), S410250006106 (0.50 mm)

Choose the thickness from the list. "OE" is the factory thickness; another thickness is used to set the cylinder height after a rebuild (piston-to-head clearance, port timing on a 2-stroke).

Cross-Mania tip: Choose the OE thickness if the cylinder and head have not been machined; if in doubt, measure the squish with solder wire before final assembly.

Spare parts and items to plan

• Top-end gasket kit : ATHENA S410250001058 · ATHENA P400250600089
• Piston : VERTEX · METEOR
• Piston rings : WISECO · WOSSNER
• Coolant : LIQUI MOLY 1 L · TWIN AIR

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
KAWASAKI KX 80 2012
KAWASAKI KX 80 2011
KAWASAKI KX 80 2010
KAWASAKI KX 80 2009
KAWASAKI KX 80 2008
KAWASAKI KX 80 2007
KAWASAKI KX 80 2006
KAWASAKI KX 80 2005
KAWASAKI KX 80 2004
KAWASAKI KX 80 2003
KAWASAKI KX 80 2002
KAWASAKI KX 80 2001
KAWASAKI KX 80 2000
KAWASAKI KX 80 1999
KAWASAKI KX 80 1998
KAWASAKI KX 85 2025
KAWASAKI KX 85 2024
KAWASAKI KX 85 2023
KAWASAKI KX 85 2022
KAWASAKI KX 85 2021
KAWASAKI KX 85 2020
KAWASAKI KX 85 2019
KAWASAKI KX 85 2018
KAWASAKI KX 85 2017
KAWASAKI KX 85 2016
KAWASAKI KX 85 2015
KAWASAKI KX 85 2014
KAWASAKI KX 85 2013
KAWASAKI KX 85 2012
KAWASAKI KX 85 2011
KAWASAKI KX 85 2010
KAWASAKI KX 85 2009
KAWASAKI KX 85 2008
KAWASAKI KX 85 2007
KAWASAKI KX 85 2006
KAWASAKI KX 85 2005
KAWASAKI KX 85 2004
KAWASAKI KX 85 2003
KAWASAKI KX 85 2002
KAWASAKI KX 85 2001
KAWASAKI KX 100 2021
KAWASAKI KX 100 2020
KAWASAKI KX 100 2019
KAWASAKI KX 100 2018
KAWASAKI KX 100 2017
KAWASAKI KX 100 2016
KAWASAKI KX 100 2015
KAWASAKI KX 100 2014
KAWASAKI KX 100 2013
KAWASAKI KX 100 2012
KAWASAKI KX 100 2011
KAWASAKI KX 100 2010
KAWASAKI KX 100 2009
KAWASAKI KX 100 2008
KAWASAKI KX 100 2007
KAWASAKI KX 100 2006
KAWASAKI KX 100 2005
KAWASAKI KX 100 2004
KAWASAKI KX 100 2003
KAWASAKI KX 100 2002
KAWASAKI KX 100 2001
KAWASAKI KX 100 2000
KAWASAKI KX 100 1999
KAWASAKI KX 100 1998
KAWASAKI KX 112 2025
KAWASAKI KX 112 2024
KAWASAKI KX 112 2023
KAWASAKI KX 112 2022
SUZUKI RM 100 2008
SUZUKI RM 100 2007
SUZUKI RM 100 2006
SUZUKI RM 100 2005
SUZUKI RM 100 2004
SUZUKI RM 100 2003
