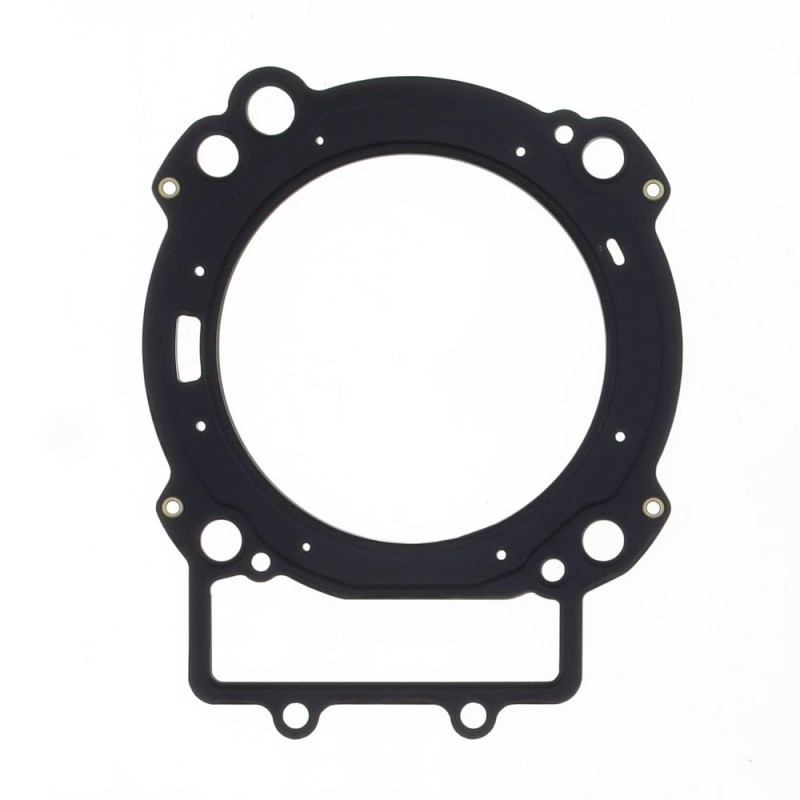

ATHENA Cylinder Head Gasket for HUSQVARNA 701, KTM ENDURO 690 and GAS GAS ES 700 2017-2027

The ATHENA S410270001061 head gasket is designed for KTM ENDURO 690, HUSQVARNA 701 and GAS GAS ES 700 from 2017 to 2027. The head gasket seals between the cylinder head and the cylinder: it holds in the combustion pressure and, depending on the engine, the coolant. Crushed when tightened, it can never be reused.

Specifications

• Brand: ATHENA
• Manufacturer part number: S410270001061
• Thickness: OE
• Weight: 120 g
• Engine: 4-stroke

When to replace it?

• Loss of compression, less lively engine.
• Black marks or hissing at the head/cylinder joint.
• Coolant level dropping, bubbles in the radiator.

Every time the cylinder head is removed, and therefore at every piston change.

Fitting tips

1. Clean the cylinder head and cylinder faces without scratching them.
2. Fit the gasket dry, the right way round, centred on the studs and the coolant holes.
3. No sealant on the gasket.
4. Tighten the cylinder head in a criss-cross pattern, in several stages, to the manufacturer's torque.
5. Refill the coolant and take the opportunity to replace the spark plug.

Why ATHENA?

Athena, an Italian company founded in 1973 near Vicenza, designs gaskets, pistons and cylinder kits for motorcycles. An OEM supplier to KTM, Ducati, Fantic, Piaggio and Triumph and a partner of the MXGP world championship, it develops its parts on the test bench and on the track with racing teams.

Spare parts and items to plan

• Top-end gasket kit : see the selection
• Piston : see the selection
• Coolant : LIQUI MOLY 1 L · TWIN AIR
• Spark plug : NGK

Frequently asked questions

Is the gasket enough to refit the cylinder head?
It replaces the head gasket only. If you also remove the cylinder, go for a complete top end gasket kit instead.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
GAS GAS ES 700 2024
GAS GAS ES 700 2023
GAS GAS ES 700 2022
HUSQVARNA 701 2027
HUSQVARNA 701 2026
HUSQVARNA 701 2024
HUSQVARNA 701 2023
HUSQVARNA 701 2022
HUSQVARNA 701 2021
HUSQVARNA 701 2020
HUSQVARNA 701 2019
HUSQVARNA 701 2018
HUSQVARNA 701 2017
KTM ENDURO 690 2026
KTM ENDURO 690 2024
KTM ENDURO 690 2023
KTM ENDURO 690 2022
KTM ENDURO 690 2021
KTM ENDURO 690 2020
KTM ENDURO 690 2019
