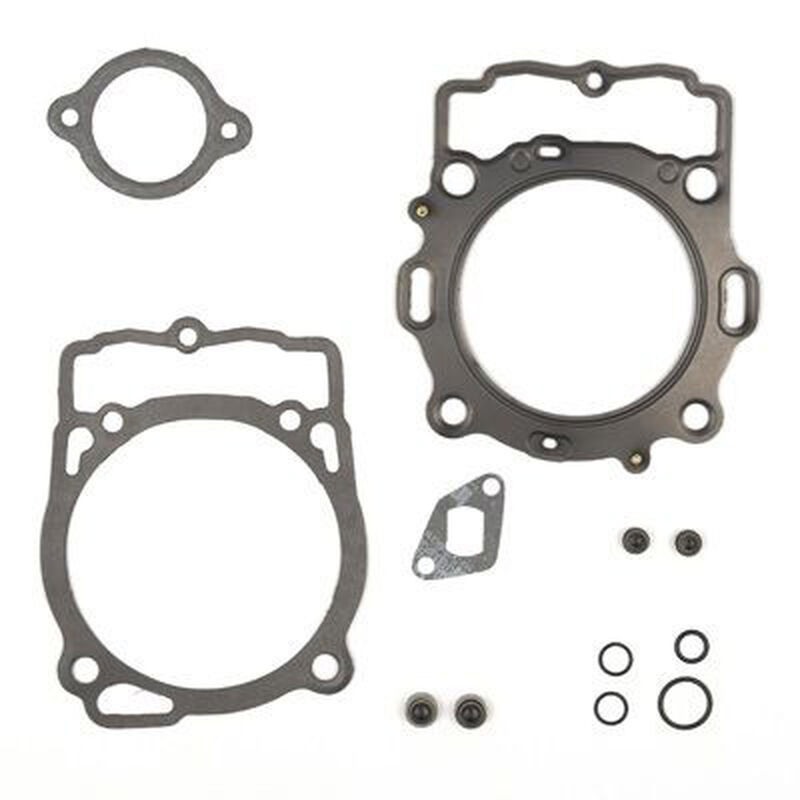

PROX Top End Gasket Kit for HUSQVARNA FE 450, FE 501 and KTM EXCF 450, EXCF 500 2017-2018

On KTM EXCF 450, EXCF 500 and HUSQVARNA FE 450, FE 501 from 2017 to 2018, the PROX 35.6417 top end gasket kit fits in place of the original part. As soon as the cylinder head or cylinder is removed, their gaskets must be replaced: crushed when tightened, they have taken the shape of the parts and will no longer seal. This kit groups under one part number the gaskets needed to reassemble the top end.

Specifications

• Brand: PROX
• Manufacturer part number: 35.6417
• Engine: 4-stroke

When to replace it?

• Coolant or oil seeping at the head/cylinder or cylinder/crankcase joint.
• Coolant level dropping, bubbles in the radiator.
• Hissing or black marks where the exhaust leaves the cylinder.

At every piston change and every time the cylinder head or cylinder is removed, even for a simple inspection. Gaskets cost little compared with the work of stripping the engine.

Fitting tips

1. Clean the gasket faces without scratching them (plastic scraper, solvent): they must be clean, dry and free of burrs.
2. Fit the gaskets dry, without sealant, unless the workshop manual says otherwise.
3. Refit a base gasket of the same thickness as the old one, unless you are deliberately adjusting the squish.
4. Tighten the cylinder head in a criss-cross pattern, in several stages, up to the manufacturer's torque.
5. While it's apart, replace the spark plug and refill the coolant.
6. After break-in, check the torque with the engine cold and make sure there are no leaks.

Why PROX?

ProX Racing Parts has been supplying engine and clutch parts to motocross riders since 1975, from its headquarters near Amsterdam. According to its catalogue, most of its parts are made in Japan, by manufacturers that also produce parts for the Japanese motorcycle makers.

Spare parts and items to plan

• Piston : see the selection
• Piston rings : PROX · VERTEX
• Spark plug : see the selection
• Coolant : LIQUI MOLY 1 L · TWIN AIR
• 4-stroke engine oil : LIQUI MOLY 10W40 1 L · MOTUL 10W50

Frequently asked questions

What does the kit contain?
Depends on the model. Compare with your original gaskets if in doubt.

Should I replace it along with the piston?
Yes: as soon as the cylinder head and cylinder are off, new gaskets go back on. It's the right time to fit a new piston kit and new rings if the engine has some hours on it.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
HUSQVARNA FE 450 2018
HUSQVARNA FE 450 2017
HUSQVARNA FE 501 2018
HUSQVARNA FE 501 2017
KTM EXCF 450 2018
KTM EXCF 450 2017
KTM EXCF 500 2018
KTM EXCF 500 2017
