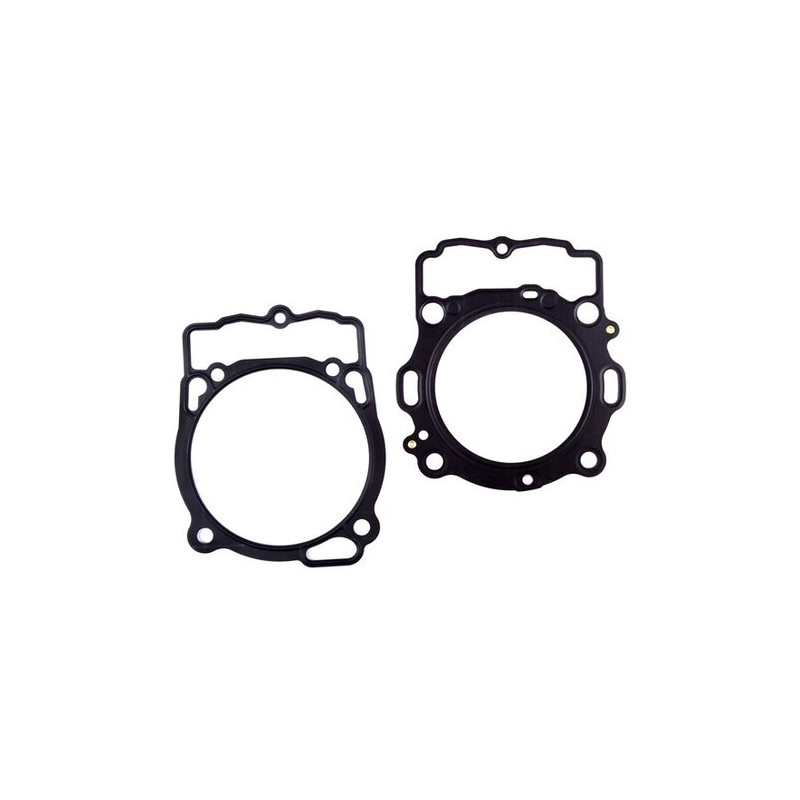

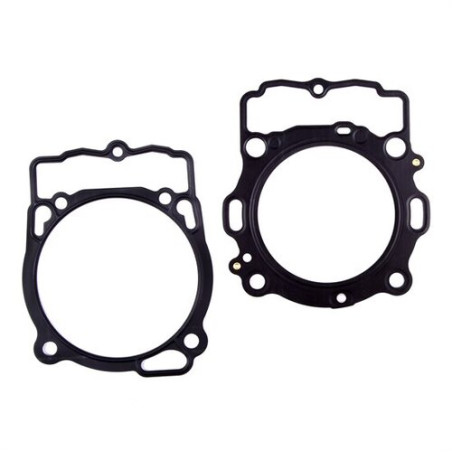

PROX Top End Gasket Kit (base + head) for HUSQVARNA FC, FE 250, KTM EXCF, SXF 250 and GAS GAS ECF, EXF, MCF 250 2016-2023

The PROX (embase + culasse) 36.6316 top end gasket kit is designed for GAS GAS ECF 250, EXF 250, MCF 250, KTM EXCF 250, SXF 250 and HUSQVARNA FC 250, FE 250 from 2016 to 2023. The top end gasket kit brings together the gaskets to replace every time the cylinder head or cylinder comes off. A gasket crushed by tightening never gets its shape back: refitting it means risking a compression, coolant or oil leak, and having to strip everything down again.

Specifications

• Brand: PROX
• Manufacturer part number: 36.6316
• Weight: 100 g
• Engine: 4-stroke

When to replace it?

• Coolant or oil seeping at the head/cylinder or cylinder/crankcase joint.
• Coolant level dropping, bubbles in the radiator.
• Hissing or black marks where the exhaust leaves the cylinder.

At every piston change and every time the cylinder head or cylinder is removed, even for a simple inspection. Gaskets cost little compared with the work of stripping the engine.

Fitting tips

1. Clean the gasket faces without scratching them (plastic scraper, solvent): they must be clean, dry and free of burrs.
2. Fit the gaskets dry, without sealant, unless the workshop manual says otherwise.
3. Refit a base gasket of the same thickness as the old one, unless you are deliberately adjusting the squish.
4. Tighten the cylinder head in a criss-cross pattern, in several stages, up to the manufacturer's torque.
5. While it's apart, replace the spark plug and refill the coolant.
6. After break-in, check the torque with the engine cold and make sure there are no leaks.

Why PROX?

Founded in 1975 and based near Amsterdam, ProX specialises in engine and clutch wear parts for off-road bikes. The brand has most of its range made in Japan, by OEM suppliers, for quality on a par with the original parts.

Spare parts and items to plan

• Piston : PROX 01.6333.A · PROX 01.6333.A
• Piston rings : VERTEX · PROX
• Spark plug : NGK 2305 · NGK 3521
• Coolant : LIQUI MOLY 1 L · TWIN AIR
• 4-stroke engine oil : LIQUI MOLY 10W40 1 L · MOTUL 10W50

Frequently asked questions

What does the kit contain?
The base gasket and the head gasket.

Should I replace it along with the piston?
Yes: as soon as the cylinder head and cylinder are off, new gaskets go back on. It's the right time to fit a new piston kit and new rings if the engine has some hours on it.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
GAS GAS ECF 250 2023
GAS GAS ECF 250 2022
GAS GAS ECF 250 2021
GAS GAS EXF 250 2023
GAS GAS EXF 250 2022
GAS GAS EXF 250 2021
GAS GAS MCF 250 2023
GAS GAS MCF 250 2022
GAS GAS MCF 250 2021
HUSQVARNA FC 250 2022
HUSQVARNA FC 250 2021
HUSQVARNA FC 250 2020
HUSQVARNA FC 250 2019
HUSQVARNA FC 250 2018
HUSQVARNA FC 250 2017
HUSQVARNA FC 250 2016
HUSQVARNA FE 250 2019
HUSQVARNA FE 250 2018
HUSQVARNA FE 250 2017
KTM EXCF 250 2019
KTM EXCF 250 2018
KTM EXCF 250 2017
KTM SXF 250 2022
KTM SXF 250 2021
KTM SXF 250 2020
KTM SXF 250 2019
KTM SXF 250 2018
KTM SXF 250 2017
KTM SXF 250 2016
