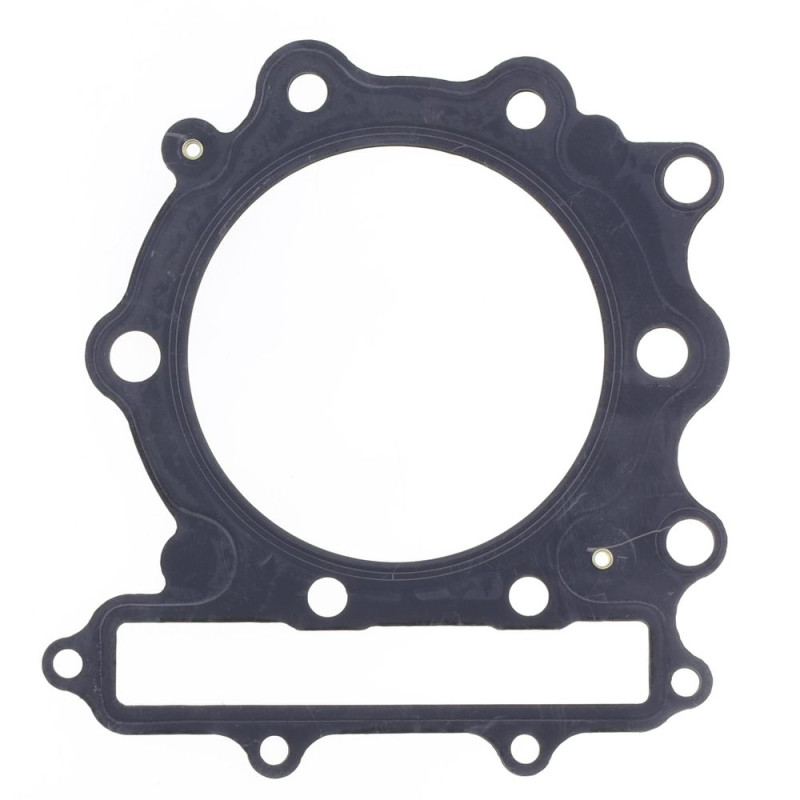

ATHENA Cylinder Head Gasket for HONDA NX 125 1988-2002

On HONDA NX 125 from 1988 to 2002, the ATHENA S410210001044 head gasket fits in place of the original part. Between the cylinder head and the cylinder, the head gasket contains the pressure of every explosion. Once tightened, it takes the shape of the parts: on reassembly you need a new gasket to keep full compression.

Specifications

• Brand: ATHENA
• Manufacturer part number: S410210001044
• EAN code: 8051757077830
• Weight: 100 g
• Engine: 2-stroke

When to replace it?

• Loss of compression, less lively engine.
• Black marks or hissing at the head/cylinder joint.
• Coolant level dropping, bubbles in the radiator.

Every time the cylinder head is removed, and therefore at every piston change.

Fitting tips

1. Clean the cylinder head and cylinder faces without scratching them.
2. Fit the gasket dry, the right way round, centred on the studs and the coolant holes.
3. No sealant on the gasket.
4. Tighten the cylinder head in a criss-cross pattern, in several stages, to the manufacturer's torque.
5. Refill the coolant and take the opportunity to replace the spark plug.

Why ATHENA?

Founded in 1973 near Vicenza, Athena is an Italian engine gasket specialist that has made its gaskets on its own production lines since day one, as well as a renowned manufacturer of pistons and cylinder kits. The brand supplies original equipment to manufacturers such as KTM, Ducati, Fantic, Piaggio and Triumph, and is a partner of the MXGP motocross world championship.

Spare parts and items to plan

• Top-end gasket kit : ATHENA
• Piston : see the selection
• Coolant : LIQUI MOLY 1 L · TWIN AIR
• Spark plug : NGK 2923 · NGK 6681

Frequently asked questions

Is the gasket enough to refit the cylinder head?
It replaces the head gasket only. If you also remove the cylinder, go for a complete top end gasket kit instead.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
HONDA NX 125 2002
HONDA NX 125 2001
HONDA NX 125 2000
HONDA NX 125 1999
HONDA NX 125 1998
HONDA NX 125 1997
HONDA NX 125 1996
HONDA NX 125 1995
HONDA NX 125 1994
HONDA NX 125 1993
HONDA NX 125 1992
HONDA NX 125 1991
HONDA NX 125 1990
HONDA NX 125 1989
HONDA NX 125 1988
