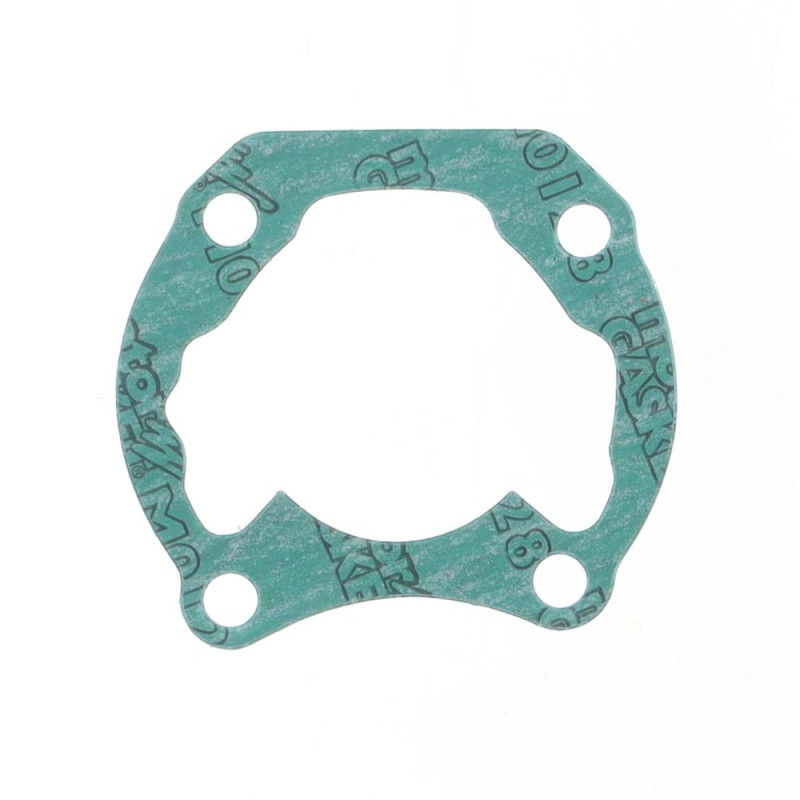

ATHENA Cylinder Base Gasket for HONDA MT 50, MTX 50 1980-1993

ATHENA offers this cylinder base gasket for HONDA MT 50, MTX 50 1980-1993. The base gasket sits under the cylinder, on the crankcase. Crushed when tightened, it cannot be reused: replace it every time the cylinder comes off.

Why does the thickness matter?

The benefits:

• The OE thickness keeps the cylinder height intended by the manufacturer.
• Another thickness lets you correct piston-to-head clearance after machining or adjust the port timing of a 2-stroke.
• A new gasket keeps the bottom end sealed against oil and gases.

Why choose ATHENA?

Athena, founded in 1973 by Giovanni Mancassola near Vicenza and based in Alonte (Italy), designs gaskets, pistons and cylinder kits; it supplies original equipment to manufacturers such as KTM, Ducati, Fantic and Triumph.

When should you replace the base gasket on your HONDA MT 50?

Every time the cylinder comes off: piston change, top-end rebuild or cylinder inspection. Oil or mixture seeping at the base of the cylinder also points to a tired gasket.

No manufacturer figure in hours for this model. Cross-Mania guideline: compression check every 15 h of hard use and every 30 h of leisure riding.

Specifications and fitting tips

• Thickness : OE
• Manufacturer part number: S410210006053

Cross-Mania tip: Choose the OE thickness if the cylinder and head have not been machined; if in doubt, measure the squish with solder wire before final assembly.

Spare parts and items to plan

• Top-end gasket kit : see the selection
• Piston : see the selection
• Piston rings : see the selection
• Coolant : LIQUI MOLY 1 L · TWIN AIR

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
HONDA MT 50 1993
HONDA MT 50 1992
HONDA MT 50 1991
HONDA MT 50 1990
HONDA MT 50 1989
HONDA MT 50 1988
HONDA MT 50 1987
HONDA MT 50 1986
HONDA MT 50 1985
HONDA MT 50 1984
HONDA MT 50 1983
HONDA MT 50 1982
HONDA MT 50 1981
HONDA MT 50 1980
HONDA MTX 50 1983
HONDA MTX 50 1982
