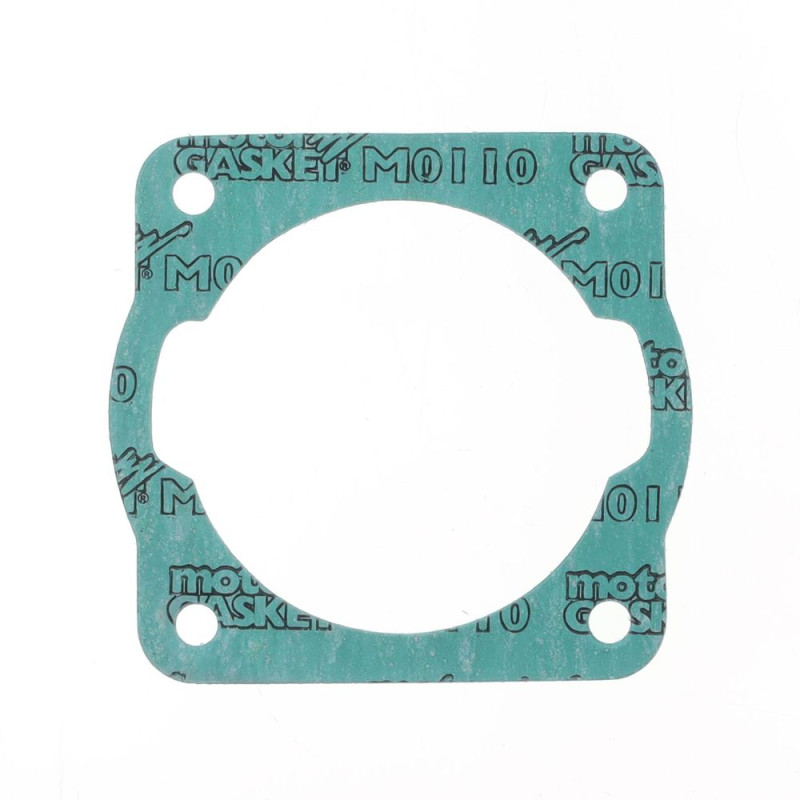

ATHENA Cylinder Base Gasket for BETA TR 33 240 1984-1995

ATHENA offers this cylinder base gasket for BETA TR 33 240 1984-1995. The base gasket sits under the cylinder, on the crankcase. Crushed when tightened, it cannot be reused: replace it every time the cylinder comes off.

Why does the thickness matter?

The benefits:

• The OE thickness keeps the cylinder height intended by the manufacturer.
• Another thickness lets you correct piston-to-head clearance after machining or adjust the port timing of a 2-stroke.
• A new gasket keeps the bottom end sealed against oil and gases.

Why choose ATHENA?

Athena, founded in 1973 by Giovanni Mancassola near Vicenza and based in Alonte (Italy), designs gaskets, pistons and cylinder kits; it supplies original equipment to manufacturers such as KTM, Ducati, Fantic and Triumph.

When should you replace the base gasket on your BETA TR 33 240?

Every time the cylinder comes off: piston change, top-end rebuild or cylinder inspection. Oil or mixture seeping at the base of the cylinder also points to a tired gasket.

No manufacturer figure in hours for this model. Cross-Mania guideline: compression check every 15 h of hard use and every 30 h of leisure riding.

Specifications and fitting tips

• Thickness : OE
• Manufacturer part number: S410060006009

Cross-Mania tip: Choose the OE thickness if the cylinder and head have not been machined; if in doubt, measure the squish with solder wire before final assembly.

Spare parts and items to plan

• Top-end gasket kit : see the selection
• Piston : see the selection
• Coolant : LIQUI MOLY 1 L · TWIN AIR

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
BETA TR 33 240 1995
BETA TR 33 240 1994
BETA TR 33 240 1993
BETA TR 33 240 1992
BETA TR 33 240 1991
BETA TR 33 240 1990
BETA TR 33 240 1989
BETA TR 33 240 1988
BETA TR 33 240 1987
BETA TR 33 240 1986
BETA TR 33 240 1985
BETA TR 33 240 1984
