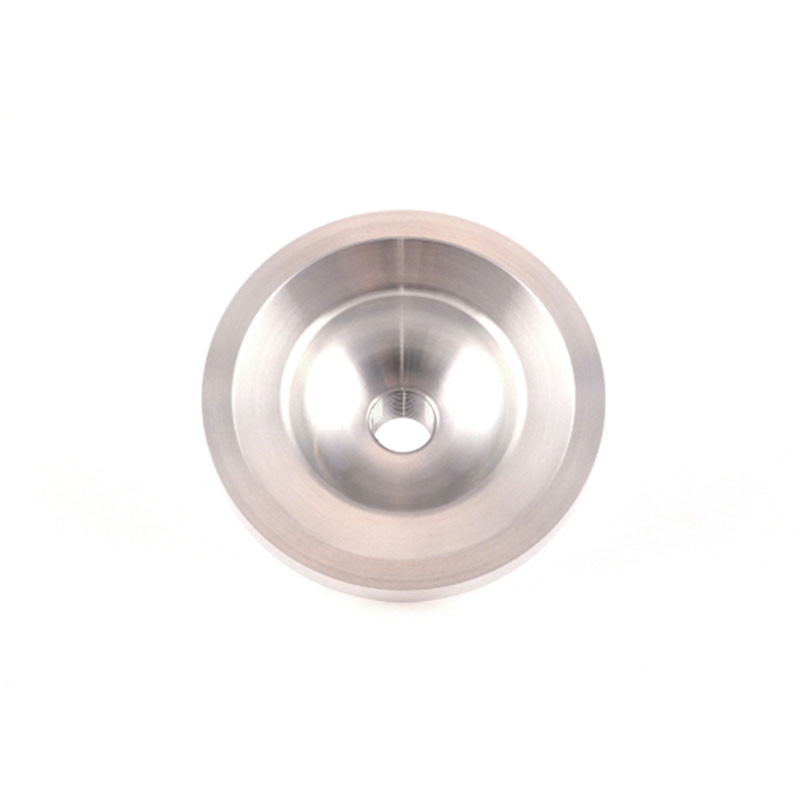

VHM Cylinder Head Insert ref. AE32021-092 for YAMAHA YZ 250 1999-2027

The VHM AE32021-092 cylinder head insert is designed for YAMAHA YZ 250 from 1999 to 2027. On a VHM cylinder head, the combustion chamber is an interchangeable insert (or dome). Changing the insert changes the chamber volume, and therefore the compression ratio, without modifying the head: you adapt the engine to the fuel, the terrain and your riding.

Key features

• Each version shows its three key figures: chamber volume, piston height and squish.
• Change the compression without machining the head, to suit the fuel and the terrain.
• Part number engraved on the insert.
• Fits VHM cylinder heads only.

Specifications

• Brand: VHM
• Manufacturer part number: AE32021-092
• Version: Version 092 (21.80 cc)
• Engine: 2-stroke

When to change the insert?

• Switch to a different fuel (98 or race fuel with a higher octane rating).
• Engine knocking (pinking) or running hot: compression too high for the fuel.
• You want more torque on tight or sandy terrain.

Change the insert when you change fuel or type of riding, or if the engine pinks. The insert's three dimensions (volume, piston height, squish) must match your engine.

Fitting tips

1. The insert is changed with the cylinder head removed.
2. Check that the actual height of your piston at top dead centre matches the figure given for the insert.
3. Replace the VHM head O-rings every time you take it apart.
4. Check the squish with solder wire before riding.
5. Tighten the head to the recommended torque, in a criss-cross pattern and in several stages, then fit a new spark plug.

Why VHM?

Since 1995, VHM has been designing racing engine parts for two-strokes: cylinder heads with interchangeable inserts, combustion chamber inserts, crankshafts and connecting rods. A specialist brand, used to fine-tune an engine's power without transforming it.

Spare parts and items to plan

• VHM head O-rings : ATHENA M752007800074 · ATHENA M752007800004
• Spark plug : NGK 3430 · NGK 3130
• Coolant : LIQUI MOLY 1 L · TWIN AIR

Frequently asked questions

Will it fit my original cylinder head?
No: VHM inserts only fit VHM cylinder heads.

Which version should I choose?
Choose according to your engine and fuel. : 21.80 cc, piston height +2.80 mm, squish 1.60 mm.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
YAMAHA YZ 250 2027
YAMAHA YZ 250 2026
YAMAHA YZ 250 2025
YAMAHA YZ 250 2024
YAMAHA YZ 250 2023
YAMAHA YZ 250 2022
YAMAHA YZ 250 2021
YAMAHA YZ 250 2020
YAMAHA YZ 250 2019
YAMAHA YZ 250 2018
YAMAHA YZ 250 2017
YAMAHA YZ 250 2016
YAMAHA YZ 250 2015
YAMAHA YZ 250 2014
YAMAHA YZ 250 2013
YAMAHA YZ 250 2012
YAMAHA YZ 250 2011
YAMAHA YZ 250 2010
YAMAHA YZ 250 2009
YAMAHA YZ 250 2008
YAMAHA YZ 250 2007
YAMAHA YZ 250 2006
YAMAHA YZ 250 2005
YAMAHA YZ 250 2004
YAMAHA YZ 250 2003
YAMAHA YZ 250 2002
YAMAHA YZ 250 2001
YAMAHA YZ 250 2000
YAMAHA YZ 250 1999
