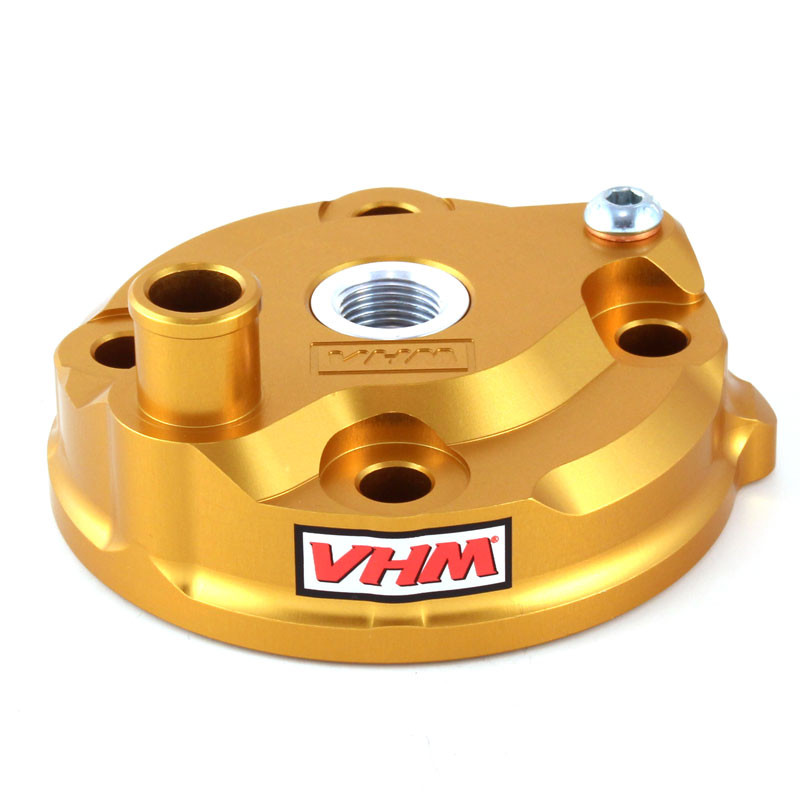

VHM Cylinder Head for KAWASAKI KX 65 and SUZUKI RM 65 2000-2026

The VHM AA33026 cylinder head is designed for KAWASAKI KX 65 and SUZUKI RM 65 from 2000 to 2026. A VHM cylinder head is made up of an aluminium body and an interchangeable insert that forms the combustion chamber. By swapping the insert, you set the engine's compression and character to suit the fuel and the terrain, without modifying the head.

Key features

• Two-piece cylinder head: body and interchangeable combustion chamber insert.
• Compression adjustable by swapping the insert, without removing the cylinder.

Specifications

• Brand: VHM
• Manufacturer part number: AA33026
• Engine: 2-stroke

Who is it for?

• Original head damaged by pinking (detonation), cracked or warped.
• You want to match the compression to the fuel, the terrain or a tuned engine.
• You're after a smoother or snappier engine without changing the cylinder.

Good to know

The insert is chosen to suit your engine and your fuel: a smaller chamber volume raises compression, which may call for a higher-octane fuel. Always check the squish when fitting.

Fitting tips

1. Clean the cylinder mating face without scratching it.
2. Fit new O-rings and grease them lightly so they stay in place.
3. Check the squish (gap between piston and head) with solder wire before riding.
4. Tighten the head in a criss-cross pattern, in several stages, to the recommended torque.
5. Fit a new spark plug and refill the coolant.

Why VHM?

Since 1995, VHM has been designing racing engine parts for two-strokes: cylinder heads with interchangeable inserts, combustion chamber inserts, crankshafts and connecting rods. A specialist brand, used to fine-tune an engine's power without transforming it.

Spare parts and items to plan

• Top-end gasket kit : ATHENA · PROX
• Spark plug : NGK 6801 · NGK 3830
• Coolant : LIQUI MOLY 1 L · TWIN AIR

Frequently asked questions

Can I change the compression later?
Yes: just swap the VHM insert, without removing the cylinder.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
KAWASAKI KX 65 2026
KAWASAKI KX 65 2025
KAWASAKI KX 65 2024
KAWASAKI KX 65 2023
KAWASAKI KX 65 2022
KAWASAKI KX 65 2021
KAWASAKI KX 65 2020
KAWASAKI KX 65 2019
KAWASAKI KX 65 2018
KAWASAKI KX 65 2017
KAWASAKI KX 65 2016
KAWASAKI KX 65 2015
KAWASAKI KX 65 2014
KAWASAKI KX 65 2013
KAWASAKI KX 65 2012
KAWASAKI KX 65 2011
KAWASAKI KX 65 2010
KAWASAKI KX 65 2009
KAWASAKI KX 65 2008
KAWASAKI KX 65 2007
KAWASAKI KX 65 2006
KAWASAKI KX 65 2005
KAWASAKI KX 65 2004
KAWASAKI KX 65 2003
KAWASAKI KX 65 2002
KAWASAKI KX 65 2001
KAWASAKI KX 65 2000
SUZUKI RM 65 2005
SUZUKI RM 65 2004
SUZUKI RM 65 2003
