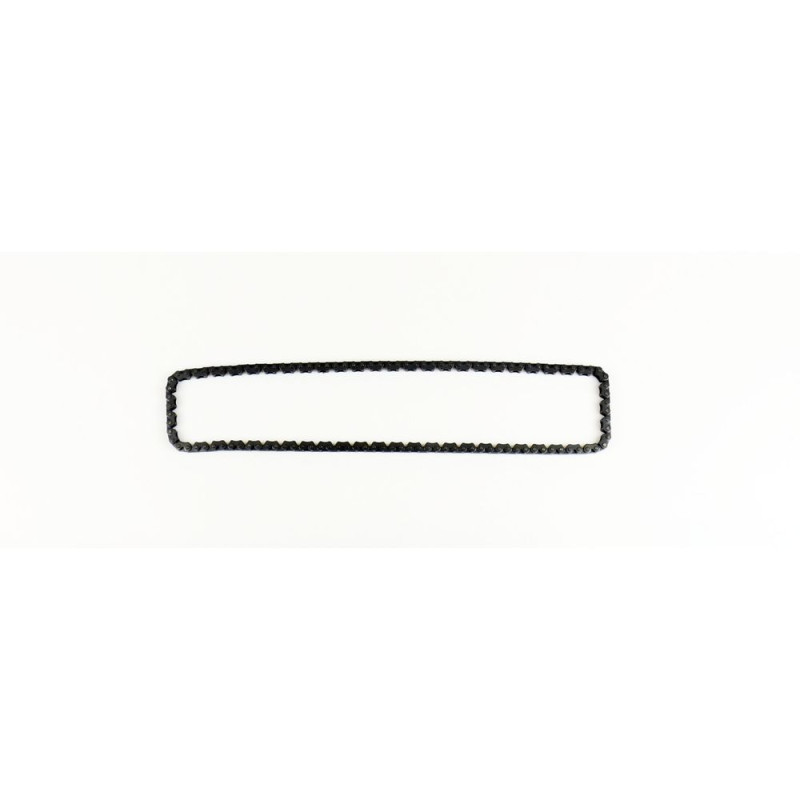

ATHENA Timing Chain for YAMAHA WRF 250, YZF 250, SUZUKI RMZ 250, KAWASAKI KXF 250 and GAS GAS ECF 250 2001-2027

On YAMAHA WRF 250, YZF 250, KAWASAKI KXF 250, SUZUKI RMZ 250 and GAS GAS ECF 250 from 2001 to 2027, the ATHENA S41400003 timing chain fits in place of the original part. On a four-stroke, the timing chain links the crankshaft to the camshafts. A tired chain gets noisy, upsets the timing and can jump a tooth: with valves hitting the piston, the damage is severe.

Specifications

• Brand: ATHENA
• Manufacturer part number: S41400003
• EAN code: 8057018265763
• Weight: 190 g
• Engine: 4-stroke

When to replace it?

• Rattling or chain noise on the timing side, especially at idle.
• Tensioner at the end of its travel.
• Timing marks that no longer line up.

At the intervals in the service manual, and as soon as the tensioner reaches the end of its travel. Check the sprockets and the guides at the same time.

Fitting tips

1. Set the engine at top dead centre on the compression stroke, marks aligned, before removing anything.
2. On most motocross engines the chain is endless, with no master link: replacing it means removing the crankshaft sprocket or a camshaft, as described in the manual.
3. Line the camshafts up with their timing marks again, then put the tensioner back under tension.
4. Turn the engine over two full turns by hand and check the timing again before starting.
5. Refit with a valve cover gasket in good condition.

Why ATHENA?

Founded in 1973 near Vicenza, Athena is an Italian engine gasket specialist that has made its gaskets on its own production lines since day one, as well as a renowned manufacturer of pistons and cylinder kits. The brand supplies original equipment to manufacturers such as KTM, Ducati, Fantic, Piaggio and Triumph, and is a partner of the MXGP motocross world championship.

Spare parts and items to plan

• Cam chain tensioner : GE.CO 300.040.001 · GE.CO 200.040.004
• Valve cover gasket : ATHENA · MOOSE
• Valve shims : PROX · HOT CAMS
• 4-stroke engine oil : LIQUI MOLY 10W40 1 L · MOTUL 10W50

Frequently asked questions

Should I replace the tensioner?
Check it: a worn tensioner, or one at the end of its travel, must be replaced along with the chain.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
GAS GAS ECF 250 2015
GAS GAS ECF 250 2014
GAS GAS ECF 250 2013
GAS GAS ECF 250 2012
GAS GAS ECF 250 2011
GAS GAS ECF 250 2010
KAWASAKI KXF 250 2016
KAWASAKI KXF 250 2015
KAWASAKI KXF 250 2014
KAWASAKI KXF 250 2013
KAWASAKI KXF 250 2012
KAWASAKI KXF 250 2011
KAWASAKI KXF 250 2010
KAWASAKI KXF 250 2009
KAWASAKI KXF 250 2008
KAWASAKI KXF 250 2007
KAWASAKI KXF 250 2006
KAWASAKI KXF 250 2005
KAWASAKI KXF 250 2004
SUZUKI RMZ 250 2027
SUZUKI RMZ 250 2026
SUZUKI RMZ 250 2025
SUZUKI RMZ 250 2024
SUZUKI RMZ 250 2023
SUZUKI RMZ 250 2022
SUZUKI RMZ 250 2021
SUZUKI RMZ 250 2020
SUZUKI RMZ 250 2019
SUZUKI RMZ 250 2018
SUZUKI RMZ 250 2017
SUZUKI RMZ 250 2016
SUZUKI RMZ 250 2015
SUZUKI RMZ 250 2014
SUZUKI RMZ 250 2013
SUZUKI RMZ 250 2012
SUZUKI RMZ 250 2011
SUZUKI RMZ 250 2010
SUZUKI RMZ 250 2009
SUZUKI RMZ 250 2008
SUZUKI RMZ 250 2007
SUZUKI RMZ 250 2006
SUZUKI RMZ 250 2005
SUZUKI RMZ 250 2004
YAMAHA WRF 250 2014
YAMAHA WRF 250 2013
YAMAHA WRF 250 2012
YAMAHA WRF 250 2011
YAMAHA WRF 250 2010
YAMAHA WRF 250 2009
YAMAHA WRF 250 2008
YAMAHA WRF 250 2007
YAMAHA WRF 250 2006
YAMAHA WRF 250 2005
YAMAHA WRF 250 2004
YAMAHA WRF 250 2003
YAMAHA WRF 250 2002
YAMAHA WRF 250 2001
YAMAHA YZF 250 2013
YAMAHA YZF 250 2012
YAMAHA YZF 250 2011
YAMAHA YZF 250 2010
YAMAHA YZF 250 2009
YAMAHA YZF 250 2008
YAMAHA YZF 250 2007
YAMAHA YZF 250 2006
YAMAHA YZF 250 2005
YAMAHA YZF 250 2004
YAMAHA YZF 250 2003
YAMAHA YZF 250 2002
YAMAHA YZF 250 2001
