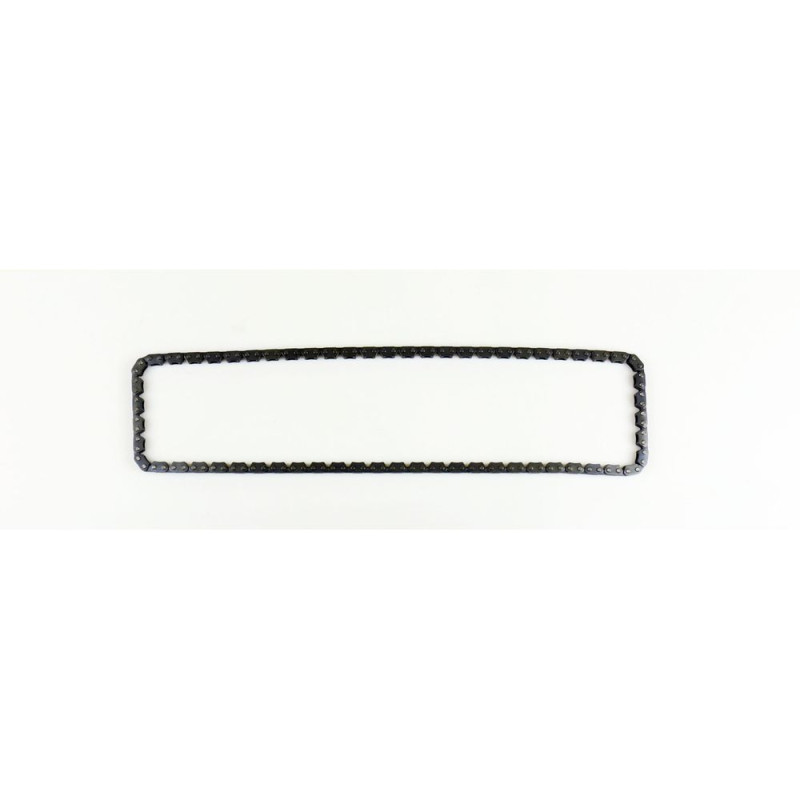

ATHENA Timing Chain for SUZUKI RMX 450, RMZ 450 2005-2027

On SUZUKI RMX 450, RMZ 450 from 2005 to 2027, the ATHENA S41400001 timing chain fits in place of the original part. On a four-stroke, the timing chain links the crankshaft to the camshafts. A tired chain gets noisy, upsets the timing and can jump a tooth: with valves hitting the piston, the damage is severe.

Specifications

• Brand: ATHENA
• Manufacturer part number: S41400001
• EAN code: 8057018265749
• Weight: 210 g
• Engine: 4-stroke

When to replace it?

• Rattling or chain noise on the timing side, especially at idle.
• Tensioner at the end of its travel.
• Timing marks that no longer line up.

At the intervals in the service manual, and as soon as the tensioner reaches the end of its travel. Check the sprockets and the guides at the same time.

Fitting tips

1. Set the engine at top dead centre on the compression stroke, marks aligned, before removing anything.
2. On most motocross engines the chain is endless, with no master link: replacing it means removing the crankshaft sprocket or a camshaft, as described in the manual.
3. Line the camshafts up with their timing marks again, then put the tensioner back under tension.
4. Turn the engine over two full turns by hand and check the timing again before starting.
5. Refit with a valve cover gasket in good condition.

Why ATHENA?

Founded in 1973 near Vicenza, Athena is an Italian engine gasket specialist that has made its gaskets on its own production lines since day one, as well as a renowned manufacturer of pistons and cylinder kits. The brand supplies original equipment to manufacturers such as KTM, Ducati, Fantic, Piaggio and Triumph, and is a partner of the MXGP motocross world championship.

Spare parts and items to plan

• Cam chain tensioner : see the selection
• Valve cover gasket : ATHENA S410510015042 · ATHENA S410510015059
• Valve shims : PROX 29.948 · PROX 29.VSA948
• 4-stroke engine oil : LIQUI MOLY 10W40 1 L · MOTUL 10W50

Frequently asked questions

Should I replace the tensioner?
Check it: a worn tensioner, or one at the end of its travel, must be replaced along with the chain.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
SUZUKI RMX 450 2019
SUZUKI RMX 450 2018
SUZUKI RMX 450 2017
SUZUKI RMX 450 2016
SUZUKI RMX 450 2015
SUZUKI RMX 450 2014
SUZUKI RMX 450 2013
SUZUKI RMX 450 2012
SUZUKI RMX 450 2011
SUZUKI RMX 450 2010
SUZUKI RMZ 450 2027
SUZUKI RMZ 450 2026
SUZUKI RMZ 450 2025
SUZUKI RMZ 450 2024
SUZUKI RMZ 450 2023
SUZUKI RMZ 450 2022
SUZUKI RMZ 450 2021
SUZUKI RMZ 450 2020
SUZUKI RMZ 450 2019
SUZUKI RMZ 450 2018
SUZUKI RMZ 450 2017
SUZUKI RMZ 450 2016
SUZUKI RMZ 450 2015
SUZUKI RMZ 450 2014
SUZUKI RMZ 450 2013
SUZUKI RMZ 450 2012
SUZUKI RMZ 450 2011
SUZUKI RMZ 450 2010
SUZUKI RMZ 450 2009
SUZUKI RMZ 450 2008
SUZUKI RMZ 450 2007
SUZUKI RMZ 450 2006
SUZUKI RMZ 450 2005
