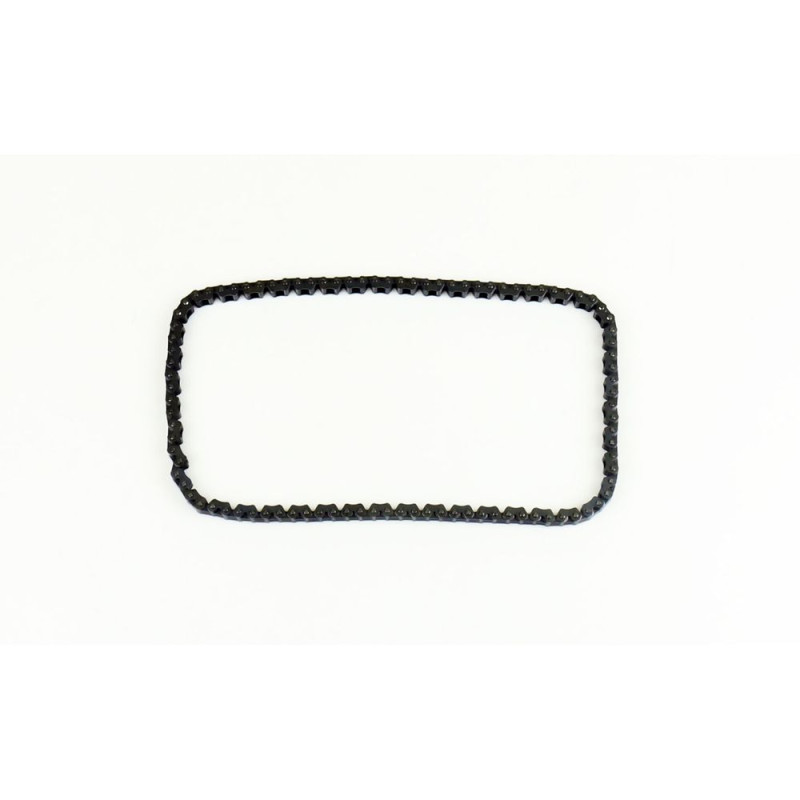

ATHENA Timing Chain for HONDA CRF 150 2007-2026

The ATHENA S41400004 timing chain is designed for HONDA CRF 150 from 2007 to 2026. The timing chain drives the camshafts from the crankshaft and keeps the valves in sync with the piston. As it stretches, it throws the valve timing out and pushes the tensioner to the end of its travel.

Specifications

• Brand: ATHENA
• Manufacturer part number: S41400004
• EAN code: 8057018265770
• Weight: 210 g
• Engine: 4-stroke

When to replace it?

• Rattling or chain noise on the timing side, especially at idle.
• Tensioner at the end of its travel.
• Timing marks that no longer line up.

At the intervals in the service manual, and as soon as the tensioner reaches the end of its travel. Check the sprockets and the guides at the same time.

Fitting tips

1. Set the engine at top dead centre on the compression stroke, marks aligned, before removing anything.
2. On most motocross engines the chain is endless, with no master link: replacing it means removing the crankshaft sprocket or a camshaft, as described in the manual.
3. Line the camshafts up with their timing marks again, then put the tensioner back under tension.
4. Turn the engine over two full turns by hand and check the timing again before starting.
5. Refit with a valve cover gasket in good condition.

Why ATHENA?

Athena, an Italian company founded in 1973 near Vicenza, designs gaskets, pistons and cylinder kits for motorcycles. An OEM supplier to KTM, Ducati, Fantic, Piaggio and Triumph and a partner of the MXGP world championship, it develops its parts on the test bench and on the track with racing teams.

Spare parts and items to plan

• Cam chain tensioner : see the selection
• Valve cover gasket : ATHENA · AIRSAL
• Valve shims : PROX 29.748 · PROX 29.VSA748
• 4-stroke engine oil : MOTUL 10W50 · LIQUI MOLY 10W40 1 L

Frequently asked questions

Should I replace the tensioner?
Check it: a worn tensioner, or one at the end of its travel, must be replaced along with the chain.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
HONDA CRF 150 2026
HONDA CRF 150 2025
HONDA CRF 150 2024
HONDA CRF 150 2023
HONDA CRF 150 2022
HONDA CRF 150 2021
HONDA CRF 150 2020
HONDA CRF 150 2019
HONDA CRF 150 2018
HONDA CRF 150 2017
HONDA CRF 150 2016
HONDA CRF 150 2015
HONDA CRF 150 2014
HONDA CRF 150 2013
HONDA CRF 150 2012
HONDA CRF 150 2011
HONDA CRF 150 2010
HONDA CRF 150 2009
HONDA CRF 150 2008
HONDA CRF 150 2007
