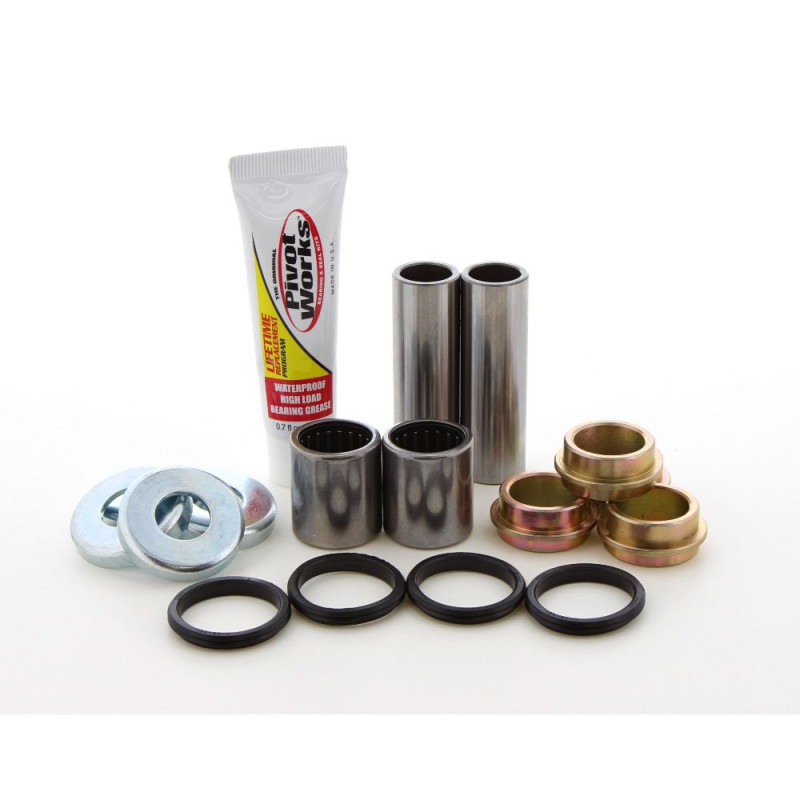

PIVOT WORKS Swingarm Bearing Kit for HONDA ATCR 250, TRX 250 1985-1987

The PIVOT WORKS PWSAKH15020 swingarm bearing kit is designed for HONDA ATCR 250, TRX 250 from 1985 to 1987. The needle bearings and bushings of the swingarm work every time the suspension compresses, in the middle of water and mud. Worn or seized, they make the suspension harsh and vague and end up wearing the bolts. This kit brings together the bearings, seals and bushings needed for the rebuild.

Specifications

• Brand: PIVOT WORKS
• Manufacturer part number: PWSAKH15020

When to replace it?

• Play when you lift the rear wheel, bike on a stand.
• Suspension that creaks, sticks or reacts less well over small bumps.
• Rusty needles, torn seals or marked bushings on teardown.

Your bike's service manual gives the exact interval. As a Cross-Mania guideline: strip, clean and grease every 20 to 30 hours of racing or after very muddy rides, once a season for leisure riding; replace as soon as play or a tight spot appears.

Fitting tips

1. Note the position of each part as you strip it, side by side.
2. Press the needle bearings out, or use a suitable puller, without making the bores oval.
3. Press the new bearings in squarely, to the same depth as the old ones.
4. Pack bearings, bushings and seal lips with grease before reassembly.
5. Tighten the bolts to the manufacturer's torque and check that the suspension moves freely, without play.

Why PIVOT WORKS?

Pivot Works specialises in chassis rebuild kits for off-road bikes and quads: bearings, seals, bushings and spacers grouped by model. The brand claims original-equipment quality, durability and fit, and since 2012 has offered a lifetime replacement of its kits in case of failure (once per kit).

Spare parts and items to plan

• Grease : MOTUL 400 g

Frequently asked questions

Are the bolts supplied?
The kit contains the model's bearings, seals and wear bushings; the bolts and hardware stay original if they are not marked. Compare with the photo if in doubt.

Which grease should I use?
A thick, water-resistant grease, applied generously: it protects the needles from mud.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
HONDA ATCR 250 1986
HONDA ATCR 250 1985
HONDA TRX 250 1987
HONDA TRX 250 1986
