- New
ALL BALLS Swing Arm Bearing Kit for SUZUKI LTZ 400, ARCTIC CAT DVX 400 and KAWASAKI KFX 400 2003-2018
€70.90
Tax Included
The bearings that let the swingarm pivot freely so the rear suspension works properly.
ALL BALLS offers this swingarm bearing kit for SUZUKI LTZ 400, ARCTIC CAT DVX 400 and KAWASAKI KFX 400 2003-2018. The swingarm pivots on needle bearings protected by seals. Water and mud make them seize: the suspension gets stiff and play appears.
What is this bearing made of?
Races and balls in hardened chrome steel, 100Cr6 type, very hard and fatigue-resistant, protected by rubber seals.
- Double seal (2RS): a seal on each side, very well sealed against water and mud, essential off-road.
- Limit: slightly more drag than a metal-shielded bearing (ZZ), which spins more freely but seals far less well.
- Fitting: press or drift it in on the outer race, never hammer on the seal; keep the pressure washer away from the hubs.
Why choose ALL BALLS?
Complete All Balls kits: low-friction bearings and steel-spring nitrile seals, everything you need in one box.
When should you replace this part?
Side play when you rock the swingarm with the rear wheel removed, or a notchy movement: the bearings need changing.
Specifications and fitting tips

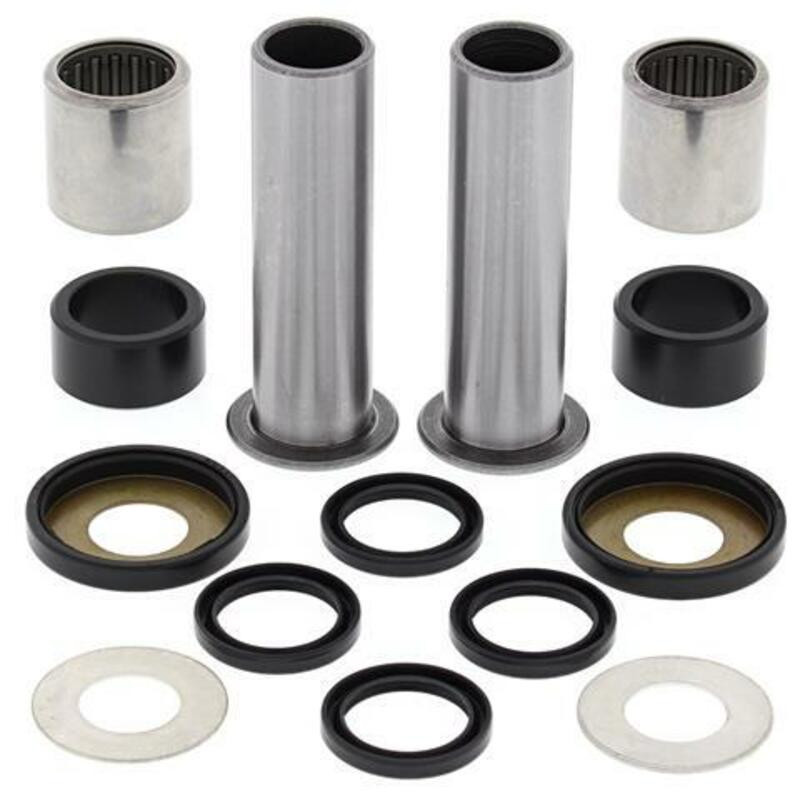

- Kit includes bearings, needle roller cages and spacers
- Refurbishes the articulation between the frame and the swing arm
- Manufacturer part number: 28-1094
Cross-Mania tip: Press out the old bearings, grease the new ones and check the swingarm pivot: if it is marked, replace it too.
Also needed with this part
- Grease : SHOWA 500 g · KYB
Compatibility
Check the exact model and year of your bike in the list below before ordering.
Fits:
ARCTIC CAT DVX 400 2008
ARCTIC CAT DVX 400 2007
ARCTIC CAT DVX 400 2006
ARCTIC CAT DVX 400 2005
ARCTIC CAT DVX 400 2004
ARCTIC CAT DVX 400 2003
KAWASAKI KFX 400 2006
KAWASAKI KFX 400 2005
KAWASAKI KFX 400 2004
KAWASAKI KFX 400 2003
SUZUKI LTZ 400 2018
SUZUKI LTZ 400 2017
SUZUKI LTZ 400 2016
SUZUKI LTZ 400 2015
SUZUKI LTZ 400 2014
SUZUKI LTZ 400 2013
SUZUKI LTZ 400 2012
SUZUKI LTZ 400 2011
SUZUKI LTZ 400 2010
SUZUKI LTZ 400 2009
SUZUKI LTZ 400 2008
SUZUKI LTZ 400 2007
SUZUKI LTZ 400 2006
SUZUKI LTZ 400 2005
SUZUKI LTZ 400 2004
SUZUKI LTZ 400 2003
28-1094
