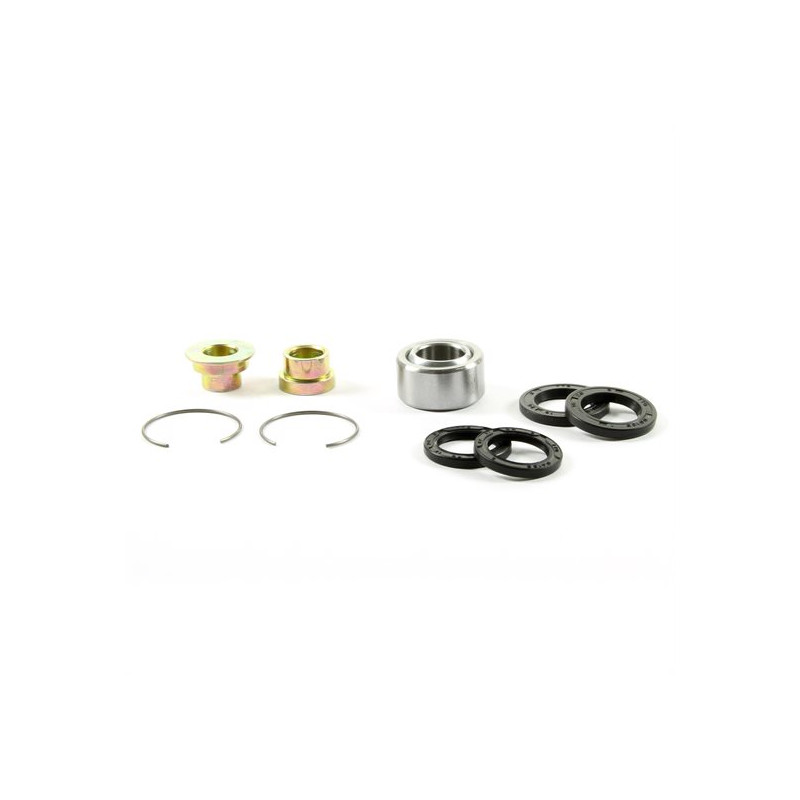

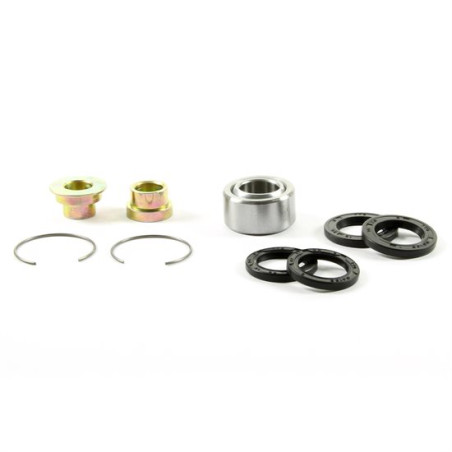

PROX Upper Shock Bearing Kit for SUZUKI DRZ 400, RM 125, RM 250 1996-2025

On SUZUKI DRZ 400, RM 125, RM 250 from 1996 to 2025, the PROX 26.350054 shock bearing kit fits in place of the original part. The shock is mounted at both ends on bearings or spherical bearings. Seized or worn, they create play and hold the shock back: the rear end becomes harsh and the suspension loses its sensitivity.

Specifications

• Brand: PROX
• Manufacturer part number: 26.350054

When to replace it?

• Play at the rear when you lift the wheel.
• Spherical bearing or bearing that binds, clunking noise at the rear.
• Rusty bearing or marked sleeve at disassembly.

Check these bearings every time you remove the shock and at the same time as the linkage. Check whether it is the upper or the lower mount (given in the name).

Fitting tips

1. Remove the shock as per the manual.
2. Press out the old bearing or spherical bearing and clean the mounting eye.
3. Press in the new bearing, with the seals and sleeves packed with waterproof grease.
4. Refit the shock and tighten the pivot bolts to the manual's torque.

Why PROX?

ProX Racing Parts has been supplying engine and clutch parts to motocross riders since 1975, from its headquarters near Amsterdam. According to its catalogue, most of its parts are made in Japan, by manufacturers that also produce parts for the Japanese motorcycle makers.

Spare parts and items to plan

• Linkage bearings : INNTECK · ALL BALLS
• Grease : MOTUL 400 g

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
SUZUKI DRZ 400 2025
SUZUKI DRZ 400 2024
SUZUKI DRZ 400 2023
SUZUKI DRZ 400 2022
SUZUKI DRZ 400 2021
SUZUKI DRZ 400 2020
SUZUKI DRZ 400 2019
SUZUKI DRZ 400 2018
SUZUKI DRZ 400 2017
SUZUKI DRZ 400 2016
SUZUKI DRZ 400 2015
SUZUKI DRZ 400 2014
SUZUKI DRZ 400 2013
SUZUKI DRZ 400 2012
SUZUKI DRZ 400 2011
SUZUKI DRZ 400 2010
SUZUKI DRZ 400 2009
SUZUKI DRZ 400 2008
SUZUKI DRZ 400 2007
SUZUKI DRZ 400 2006
SUZUKI DRZ 400 2005
SUZUKI DRZ 400 2004
SUZUKI DRZ 400 2003
SUZUKI DRZ 400 2002
SUZUKI DRZ 400 2001
SUZUKI DRZ 400 2000
SUZUKI RM 125 2000
SUZUKI RM 125 1999
SUZUKI RM 125 1998
SUZUKI RM 125 1997
SUZUKI RM 125 1996
SUZUKI RM 250 2000
SUZUKI RM 250 1999
SUZUKI RM 250 1998
SUZUKI RM 250 1997
SUZUKI RM 250 1996
