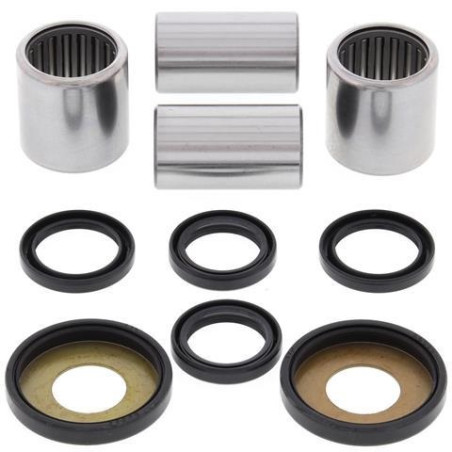

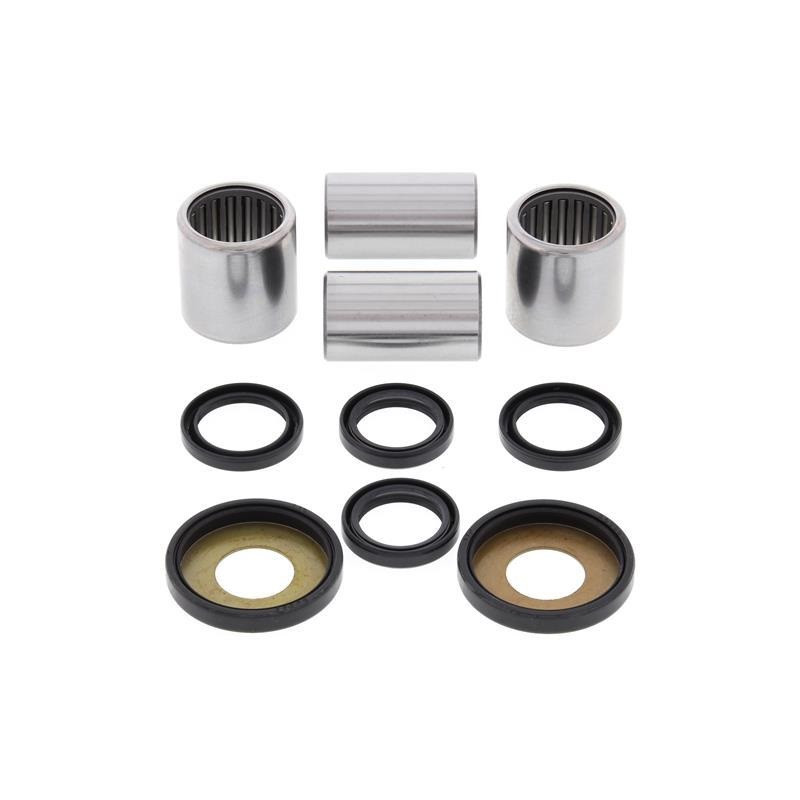

PROX Swingarm Bearing Kit for SUZUKI DR 250, DR 350, DRZ 250 1990-2007

The PROX 26.210105 swingarm bearing kit is designed for SUZUKI DR 250, DR 350, DRZ 250 from 1990 to 2007. The swingarm pivots on its shaft on every movement of the rear suspension. Its bearings, often needle bearings, wear from water and mud: a swingarm pivot that binds or has play makes the rear end vague and wears out the drivetrain.

Specifications

• Brand: PROX
• Manufacturer part number: 26.210105
• Weight: 230 g

When to replace it?

• Side play at the rear when you shake the wheel from left to right.
• Pivot that binds when you move the swingarm up and down with the shock removed.
• Rusty needles or marked sleeves when opened.

Grease the pivot regularly and replace the bearings as soon as they have play or bind. While you are at it, check the linkage.

Fitting tips

1. Support the bike, then remove the rear wheel, the chain and the swingarm pivot shaft.
2. Drive out the old bearings and sleeves and clean the bores.
3. Press in the new ones, straight, with the seals and sleeves packed with waterproof grease.
4. Refit the shaft and tighten to the manual's torque, then check that the swingarm pivots freely, with no play.

Why PROX?

Founded in 1975 and based near Amsterdam, ProX specialises in engine and clutch wear parts for off-road bikes. The brand has most of its range made in Japan, by OEM suppliers, for quality on a par with the original parts.

Spare parts and items to plan

• Linkage bearings : PROX 26.110061 · PROX 26.450033
• Grease : MOTUL 400 g

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
SUZUKI DR 250 1995
SUZUKI DR 250 1994
SUZUKI DR 250 1993
SUZUKI DR 250 1992
SUZUKI DR 250 1991
SUZUKI DR 250 1990
SUZUKI DR 350 1999
SUZUKI DR 350 1998
SUZUKI DR 350 1997
SUZUKI DR 350 1996
SUZUKI DR 350 1995
SUZUKI DR 350 1994
SUZUKI DR 350 1993
SUZUKI DR 350 1992
SUZUKI DR 350 1991
SUZUKI DR 350 1990
SUZUKI DRZ 250 2007
SUZUKI DRZ 250 2006
SUZUKI DRZ 250 2005
SUZUKI DRZ 250 2004
SUZUKI DRZ 250 2003
SUZUKI DRZ 250 2002
SUZUKI DRZ 250 2001
