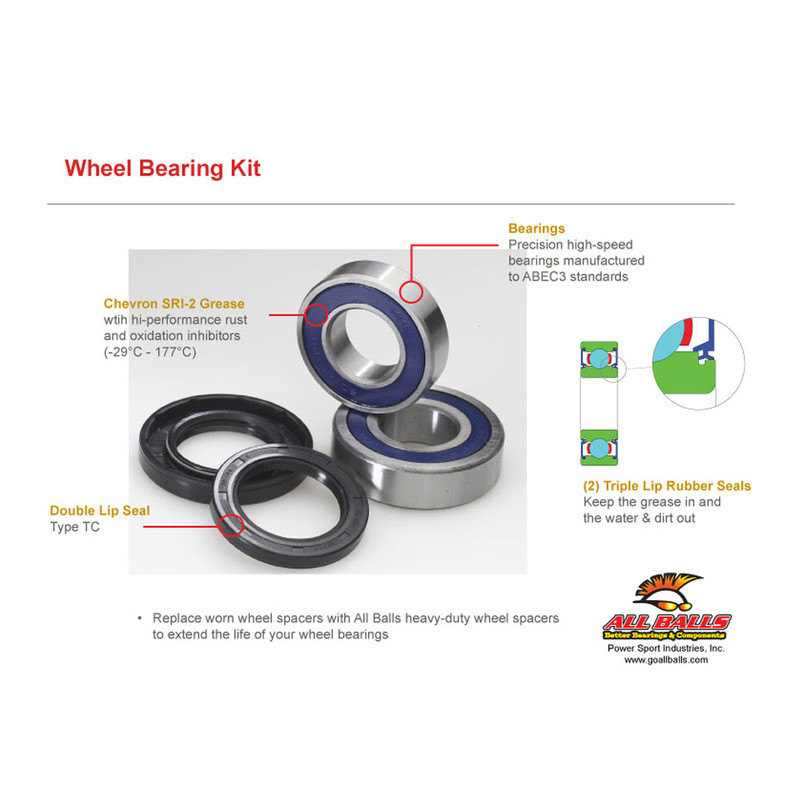

ALL BALLS Wheel Bearing Kit for SUZUKI DR-Z 125 LL, DRZ 125, DS 80, JR 80, RM 50 and KAWASAKI KLX 125, KX 80 1975-2025

ALL BALLS offers this wheel bearing for SUZUKI DR-Z 125 LL, DRZ 125, DS 80, JR 80, RM 50 and KAWASAKI KLX 125, KX 80 1975-2025. Each wheel spins on two bearings in the hub, separated by a spacer. Water and mud eventually damage them: play, rough spots, noise.

What is this bearing made of?

Races and balls in hardened chrome steel, 100Cr6 type, very hard and fatigue-resistant, protected by rubber seals.

• Double seal (2RS): a seal on each side, very well sealed against water and mud, essential off-road.
• Limit: slightly more drag than a metal-shielded bearing (ZZ), which spins more freely but seals far less well.
• Fitting: press or drift it in on the outer race, never hammer on the seal; keep the pressure washer away from the hubs.

Why choose ALL BALLS?

Complete All Balls kits: low-friction bearings and steel-spring nitrile seals, everything you need in one box.

When should you replace the bearings?

Check the wheels for play at every wash with the wheel off the ground: a failing bearing can lock the wheel. Pressure washing forces water in and speeds up wear.

Specifications and fitting tips

• Packing: by unit
• Wheel bearing kit
• For long term replacement
• Manufacturer part number: 25-1166

Cross-Mania tip: Always replace the bearings of a wheel together and check the spacer.

Also needed with this part

• Grease : MOTUL 400 g 108664 · MOTUL 400 g 108672

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
KAWASAKI KLX 125 2006
KAWASAKI KLX 125 2005
KAWASAKI KLX 125 2004
KAWASAKI KLX 125 2003
KAWASAKI KX 80 1985
KAWASAKI KX 80 1984
KAWASAKI KX 80 1983
SUZUKI DR-Z 125 LL 2019
SUZUKI DR-Z 125 LL 2018
SUZUKI DR-Z 125 LL 2017
SUZUKI DR-Z 125 LL 2016
SUZUKI DR-Z 125 LL 2015
SUZUKI DR-Z 125 LL 2014
SUZUKI DR-Z 125 LL 2013
SUZUKI DRZ 125 2025
SUZUKI DRZ 125 2024
SUZUKI DRZ 125 2023
SUZUKI DRZ 125 2022
SUZUKI DRZ 125 2021
SUZUKI DRZ 125 2020
SUZUKI DRZ 125 2019
SUZUKI DRZ 125 2018
SUZUKI DRZ 125 2017
SUZUKI DRZ 125 2016
SUZUKI DRZ 125 2015
SUZUKI DRZ 125 2014
SUZUKI DRZ 125 2013
SUZUKI DRZ 125 2012
SUZUKI DRZ 125 2011
SUZUKI DRZ 125 2010
SUZUKI DRZ 125 2009
SUZUKI DRZ 125 2008
SUZUKI DRZ 125 2007
SUZUKI DRZ 125 2006
SUZUKI DRZ 125 2005
SUZUKI DRZ 125 2004
SUZUKI DRZ 125 2003
SUZUKI DS 80 2000
SUZUKI DS 80 1999
SUZUKI DS 80 1998
SUZUKI DS 80 1997
SUZUKI DS 80 1996
SUZUKI DS 80 1995
SUZUKI DS 80 1994
SUZUKI DS 80 1993
SUZUKI DS 80 1992
SUZUKI DS 80 1991
SUZUKI DS 80 1990
SUZUKI DS 80 1989
SUZUKI DS 80 1988
SUZUKI DS 80 1987
SUZUKI DS 80 1986
SUZUKI DS 80 1985
SUZUKI DS 80 1984
SUZUKI DS 80 1983
SUZUKI JR 80 2004
SUZUKI JR 80 2003
SUZUKI JR 80 2002
SUZUKI RM 50 1981
SUZUKI RM 50 1980
SUZUKI RM 50 1979
SUZUKI RM 50 1978
SUZUKI RM 60 1980
SUZUKI RM 60 1979
SUZUKI TS 75 1977
SUZUKI TS 75 1976
SUZUKI TS 75 1975
