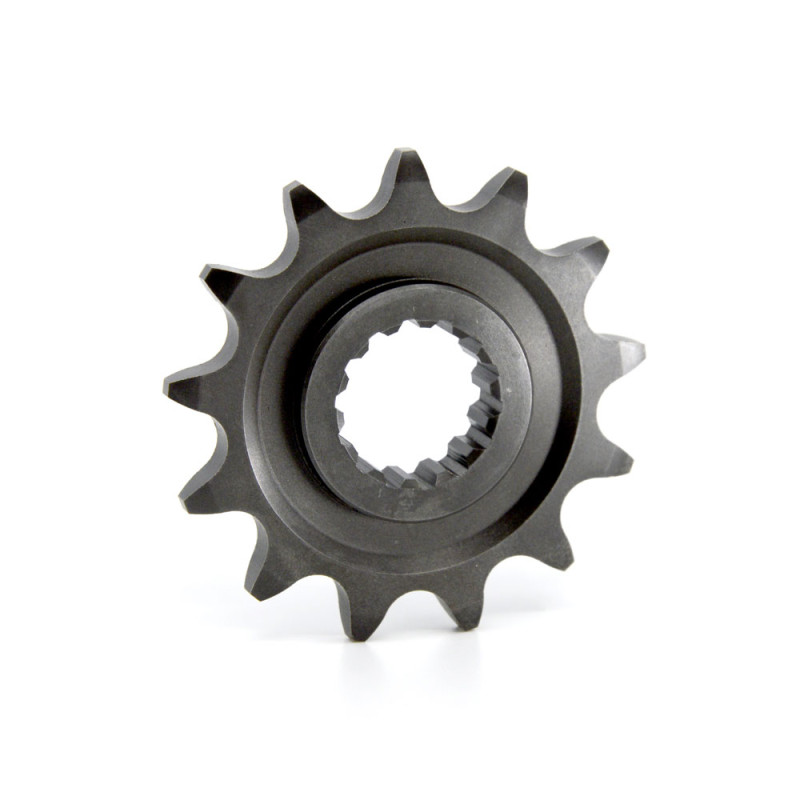

INNTECK Front Sprocket 13 Teeth for SUZUKI DRZ 400, RM 250 1986-2020

On SUZUKI DRZ 400, RM 250 from 1986 to 2020, the INNTECK 13 dents 432KC-13 front sprocket fits in place of the original part. Mounted on the gearbox output shaft (countershaft), the front sprocket passes the engine's torque on to the chain. Every tooth is loaded on every turn of the wheel: a worn front sprocket makes the chain jump and speeds up wear on the whole drivetrain.

Specifications

• Brand: INNTECK
• Manufacturer part number: 432KC-13

When to replace it?

• Teeth thinned, pointed or hooked.
• Chain that jumps or slaps under acceleration.
• Play between the sprocket and the shaft, or marked splines.

Check it every time you service the chain and replace it along with the rear sprocket and the chain. Many riders change the front sprocket with every new chain, because it wears much faster than the rear sprocket.

Fitting tips

1. Loosen the sprocket nut or bolt while holding the rear wheel with the brake, before slackening the chain.
2. Clean the countershaft and check the oil seal behind the sprocket.
3. Fit the sprocket the right way round, with a lock washer or threadlocker as on the original assembly, and tighten to the manufacturer's torque.
4. Set the chain tension and lube it with chain lube.

Spare parts and items to plan

• Rear sprocket : MOOSE 1210-808-49-STL · MOOSE 1211-808-48-10
• Drive chain : RENTHAL
• Chain lube : LIQUI MOLY 400 ml · SCOTTOILER

Frequently asked questions

Should the rear sprocket be changed too?
If it's worn, yes: a new front sprocket running on a tired rear sprocket and chain is worn out within a few hours.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
SUZUKI DRZ 400 2020
SUZUKI DRZ 400 2019
SUZUKI DRZ 400 2018
SUZUKI DRZ 400 2017
SUZUKI DRZ 400 2016
SUZUKI DRZ 400 2015
SUZUKI DRZ 400 2014
SUZUKI DRZ 400 2013
SUZUKI DRZ 400 2012
SUZUKI DRZ 400 2011
SUZUKI DRZ 400 2010
SUZUKI DRZ 400 2009
SUZUKI DRZ 400 2008
SUZUKI DRZ 400 2007
SUZUKI DRZ 400 2006
SUZUKI DRZ 400 2005
SUZUKI DRZ 400 2004
SUZUKI DRZ 400 2003
SUZUKI DRZ 400 2002
SUZUKI DRZ 400 2001
SUZUKI DRZ 400 2000
SUZUKI RM 250 2008
SUZUKI RM 250 2007
SUZUKI RM 250 2006
SUZUKI RM 250 2005
SUZUKI RM 250 2004
SUZUKI RM 250 2003
SUZUKI RM 250 2002
SUZUKI RM 250 2001
SUZUKI RM 250 2000
SUZUKI RM 250 1999
SUZUKI RM 250 1998
SUZUKI RM 250 1997
SUZUKI RM 250 1996
SUZUKI RM 250 1995
SUZUKI RM 250 1994
SUZUKI RM 250 1993
SUZUKI RM 250 1992
SUZUKI RM 250 1991
SUZUKI RM 250 1990
SUZUKI RM 250 1989
SUZUKI RM 250 1988
SUZUKI RM 250 1987
SUZUKI RM 250 1986
