JT SPROCKETS steel front sprocket 12T, 520 pitch for SUZUKI TS 185, YAMAHA YZ 125, KAWASAKI KX 125 and CAGIVA WMX 125 1971-1994

JT SPROCKETS offers this front sprocket for SUZUKI TS 125, TS 185, TS 185 ER, YAMAHA IT 200, YZ 100, YZ 125, KAWASAKI KDX 200, KX 125 and CAGIVA WMX 125 1971-1994. The front sprocket sits on the gearbox output shaft and passes the engine’s power to the chain, which turns the rear sprocket and the rear wheel.

Why replace the front sprocket?

The benefits:

• An inexpensive part that protects a new chain and rear sprocket.
• Made of steel to withstand much heavier wear than the rear sprocket.
• Changing the number of teeth is the simplest, cheapest way to alter the gearing.

When should you replace the front sprocket?

Dished or hooked teeth: replace it straight away, otherwise it will ruin a new chain within hours.

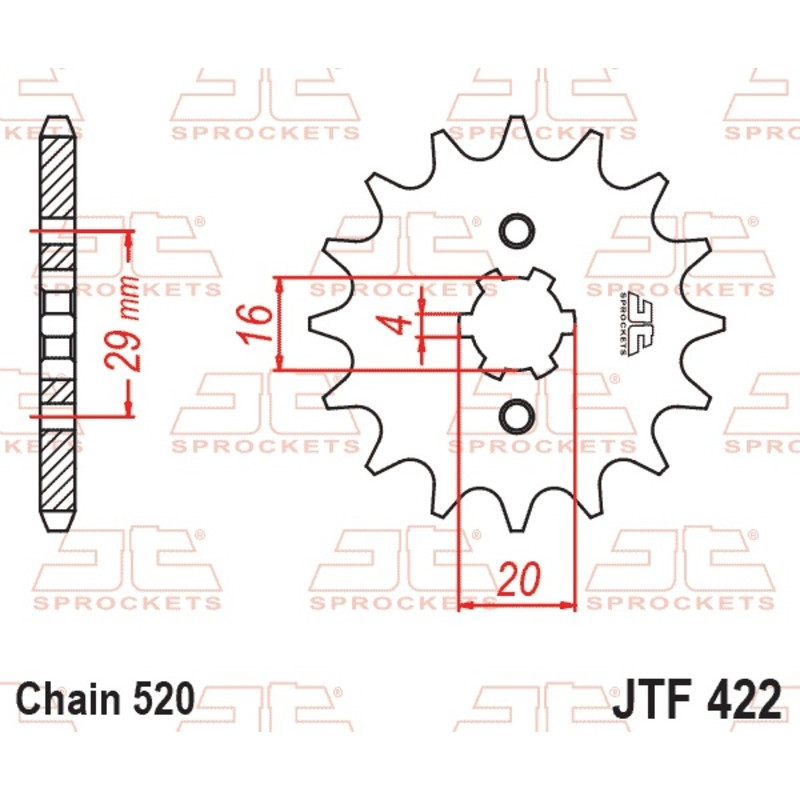

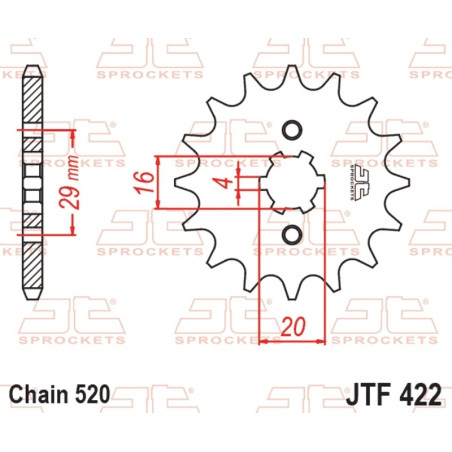

Specifications and fitting tips

• Chain pitch: 520
• Material: Steel
• Front sprocket teeth count: 12
• Front sprocket version: Standard
• Optimal lightweight design
• CNC machined for performance and lifespan
• Manufacturer part number: JTF422.12

Cross-Mania tip: Replace the front sprocket together with the chain and rear sprocket, renew the sprocket nut or circlip and check the output shaft seal.

Also needed with this part

• Rear sprocket : JT SPROCKETS for KAWASAKI, SUZUKI, KDX… · Rear sprocket JT SPROCKETS for KAWASAK…
• Drive chain : ALL BALLS 79-5008 · ALL BALLS 79-5007
• Chain lube : LIQUI MOLY 400 ml · MUC OFF

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
CAGIVA WMX 125 1988
CAGIVA WMX 125 1987
CAGIVA WMX 125 1986
CAGIVA WMX 125 1985
CAGIVA WMX 125 1984
KAWASAKI KDX 200 1983
KAWASAKI KX 125 1993
KAWASAKI KX 125 1992
KAWASAKI KX 125 1991
KAWASAKI KX 125 1990
KAWASAKI KX 125 1989
KAWASAKI KX 125 1988
KAWASAKI KX 125 1987
KAWASAKI KX 125 1986
KAWASAKI KX 125 1985
KAWASAKI KX 125 1984
KAWASAKI KX 125 1983
KAWASAKI KX 125 1982
KAWASAKI KX 125 1981
KAWASAKI KX 125 1980
SUZUKI TS 125 1994
SUZUKI TS 125 1993
SUZUKI TS 125 1992
SUZUKI TS 125 1991
SUZUKI TS 125 1990
SUZUKI TS 185 1978
SUZUKI TS 185 1977
SUZUKI TS 185 1976
SUZUKI TS 185 1975
SUZUKI TS 185 1974
SUZUKI TS 185 1973
SUZUKI TS 185 1972
SUZUKI TS 185 1971
SUZUKI TS 185 ER 1982
SUZUKI TS 185 ER 1981
SUZUKI TS 185 ER 1980
SUZUKI TS 185 ER 1979
YAMAHA IT 200 1986
YAMAHA IT 200 1985
YAMAHA IT 200 1984
YAMAHA YZ 100 1983
YAMAHA YZ 100 1982
YAMAHA YZ 100 1981
YAMAHA YZ 125 1986
YAMAHA YZ 125 1985
YAMAHA YZ 125 1984
YAMAHA YZ 125 1983
YAMAHA YZ 125 1982
YAMAHA YZ 125 1981
YAMAHA YZ 125 1980
YAMAHA YZ 125 1979
YAMAHA YZ 125 1978
YAMAHA YZ 125 1977
