AFAM steel front sprocket 428 pitch for SUZUKI RM 80, RM 85, TS 125, YAMAHA DT 125 MX, TY 125, YZ 80 and SCORPA SY 125, SY 175

AFAM offers this front sprocket for SUZUKI RM 80, RM 85, TS 125, TS 125 ER, TS 125 X, YAMAHA DT 125, DT 125 MX, TY 125, YTM 200, YZ 80 and SCORPA SY 125, SY 175 1971-2023. The front sprocket sits on the gearbox output shaft and passes the engine’s power to the chain, which turns the rear sprocket and the rear wheel.

Why replace the front sprocket?

The benefits:

• An inexpensive part that protects a new chain and rear sprocket.
• Made of steel to withstand much heavier wear than the rear sprocket.
• Changing the number of teeth is the simplest, cheapest way to alter the gearing.

When should you replace the front sprocket?

Dished or hooked teeth: replace it straight away, otherwise it will ruin a new chain within hours.

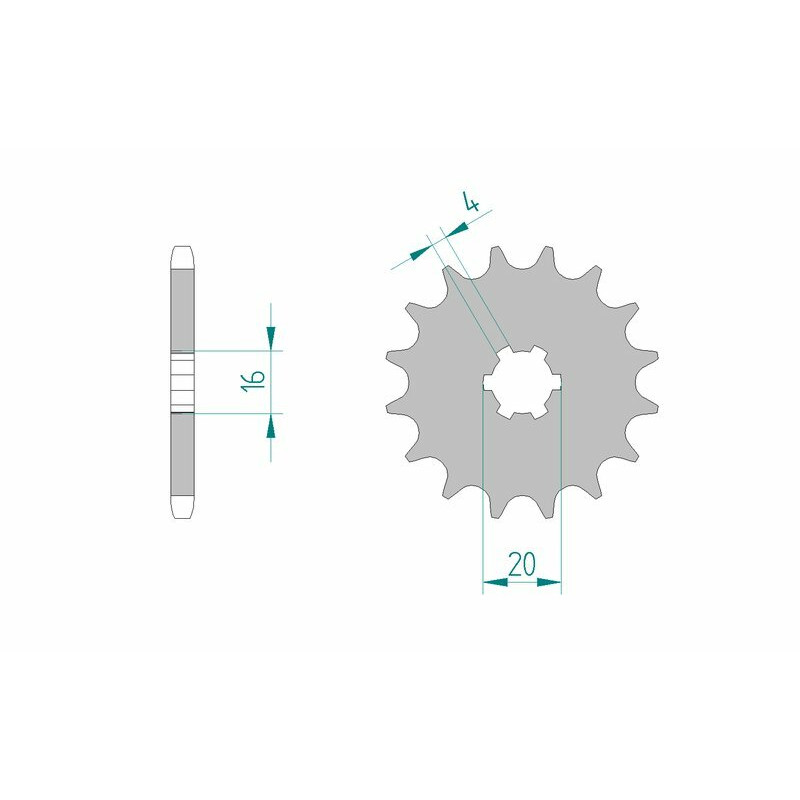

Specifications and fitting tips

• Chain pitch: 428
• Material: Steel
• Front sprocket version: Standard
• Standard steel front-sprocket
• Top of range manufacturing and quality

Choose the number of teeth from the list: fewer teeth on the front sprocket (or more on the rear) gives more acceleration, the opposite gives a longer gearing.

Cross-Mania tip: Replace the front sprocket together with the chain and rear sprocket, renew the sprocket nut or circlip and check the output shaft seal.

Also needed with this part

• Rear sprocket : AFAM 38200 · AFAM 15104+
• Drive chain : AFAM · RENTHAL 428
• Chain lube : LIQUI MOLY 400 ml · LIQUI MOLY 250 ml

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
SCORPA SY 125 2004
SCORPA SY 175 2008
SCORPA SY 175 2007
SCORPA SY 175 2006
SCORPA SY 175 2005
SCORPA SY 175 2004
SUZUKI RM 80 2000
SUZUKI RM 80 1999
SUZUKI RM 80 1998
SUZUKI RM 80 1997
SUZUKI RM 80 1996
SUZUKI RM 80 1995
SUZUKI RM 80 1994
SUZUKI RM 80 1993
SUZUKI RM 80 1992
SUZUKI RM 80 1991
SUZUKI RM 80 1990
SUZUKI RM 80 1989
SUZUKI RM 80 1988
SUZUKI RM 80 1987
SUZUKI RM 80 1986
SUZUKI RM 80 1985
SUZUKI RM 80 1984
SUZUKI RM 80 1983
SUZUKI RM 80 1982
SUZUKI RM 80 1981
SUZUKI RM 80 1980
SUZUKI RM 85 2023
SUZUKI RM 85 2022
SUZUKI RM 85 2021
SUZUKI RM 85 2020
SUZUKI RM 85 2019
SUZUKI RM 85 2018
SUZUKI RM 85 2017
SUZUKI RM 85 2016
SUZUKI RM 85 2015
SUZUKI RM 85 2014
SUZUKI RM 85 2013
SUZUKI RM 85 2012
SUZUKI RM 85 2011
SUZUKI RM 85 2010
SUZUKI RM 85 2009
SUZUKI RM 85 2008
SUZUKI RM 85 2007
SUZUKI RM 85 2006
SUZUKI RM 85 2005
SUZUKI RM 85 2004
SUZUKI RM 85 2003
SUZUKI RM 85 2002
SUZUKI TS 125 1978
SUZUKI TS 125 1977
SUZUKI TS 125 1976
SUZUKI TS 125 1975
SUZUKI TS 125 1974
SUZUKI TS 125 1973
SUZUKI TS 125 1972
SUZUKI TS 125 1971
SUZUKI TS 125 ER 1983
SUZUKI TS 125 ER 1982
SUZUKI TS 125 ER 1981
SUZUKI TS 125 ER 1980
SUZUKI TS 125 ER 1979
SUZUKI TS 125 X 1988
SUZUKI TS 125 X 1987
SUZUKI TS 125 X 1986
SUZUKI TS 125 X 1985
SUZUKI TS 125 X 1984
SUZUKI TS 80 X 1987
SUZUKI TS 80 X 1986
SUZUKI TS 80 X 1985
SUZUKI TS 80 X 1984
YAMAHA DT 125 1979
YAMAHA DT 125 1978
YAMAHA DT 125 1977
YAMAHA DT 125 1976
YAMAHA DT 125 1975
YAMAHA DT 125 1974
YAMAHA DT 125 MX 1991
YAMAHA DT 125 MX 1990
YAMAHA DT 125 MX 1989
YAMAHA DT 125 MX 1988
YAMAHA DT 125 MX 1987
YAMAHA DT 125 MX 1986
YAMAHA DT 125 MX 1985
YAMAHA DT 125 MX 1984
YAMAHA DT 125 MX 1983
YAMAHA DT 125 MX 1982
YAMAHA DT 125 MX 1980
YAMAHA DT 125 MX 1979
YAMAHA DT 125 MX 1978
YAMAHA TY 125 1989
YAMAHA TY 125 1988
YAMAHA TY 125 1987
YAMAHA TY 125 1986
YAMAHA TY 125 1985
YAMAHA TY 125 1984
YAMAHA TY 125 1983
YAMAHA TY 125 1982
YAMAHA TY 125 1981
YAMAHA TY 125 1980
YAMAHA TY 125 1979
YAMAHA TY 125 1978
YAMAHA TY 125 1977
YAMAHA TY 125 1976
YAMAHA TY 175 1980
YAMAHA YTM 200 1991
YAMAHA YTM 200 1990
YAMAHA YTM 200 1989
YAMAHA YTM 200 1988
YAMAHA YTM 200 1987
YAMAHA YTM 200 1986
YAMAHA YTM 200 1985
YAMAHA YZ 80 2001
YAMAHA YZ 80 2000
YAMAHA YZ 80 1999
YAMAHA YZ 80 1998
YAMAHA YZ 80 1997
YAMAHA YZ 80 1996
YAMAHA YZ 80 1995
YAMAHA YZ 80 1994
YAMAHA YZ 80 1993
YAMAHA YZ 80 1991
YAMAHA YZ 80 1990
YAMAHA YZ 80 1989
YAMAHA YZ 80 1988
YAMAHA YZ 80 1987
YAMAHA YZ 80 1986
YAMAHA YZ 80 1985
YAMAHA YZ 80 1983
