PBR steel front sprocket 520 pitch for SUZUKI DR-Z 400 S, DR-Z 400 SM, DRZ 400, RMX 250, BETA JONATHAN 350 and KAWASAKI KLX 400

PBR offers this front sprocket for SUZUKI DR 350, DR-Z 400 S, DR-Z 400 SM, DRZ 400, RMX 250, BETA JONATHAN 350 and KAWASAKI KLX 400 1983-2017. The front sprocket sits on the gearbox output shaft and passes the engine’s power to the chain, which turns the rear sprocket and the rear wheel.

Why replace the front sprocket?

The benefits:

• An inexpensive part that protects a new chain and rear sprocket.
• Made of steel to withstand much heavier wear than the rear sprocket.
• Changing the number of teeth is the simplest, cheapest way to alter the gearing.

When should you replace the front sprocket?

Dished or hooked teeth: replace it straight away, otherwise it will ruin a new chain within hours.

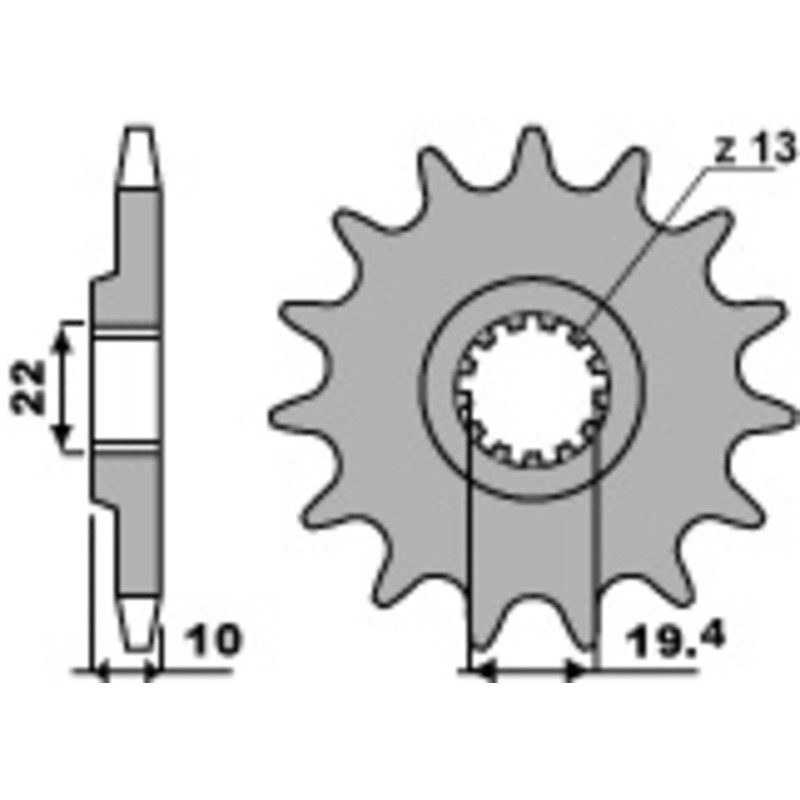

Specifications and fitting tips

• Chain pitch: 520
• Material: Steel
• Front sprocket version: Standard
• High quality steel alloy 18NCD5
• High wear resistance

Choose the number of teeth from the list: fewer teeth on the front sprocket (or more on the rear) gives more acceleration, the opposite gives a longer gearing.

Cross-Mania tip: Replace the front sprocket together with the chain and rear sprocket, renew the sprocket nut or circlip and check the output shaft seal.

Also needed with this part

• Rear sprocket : AFAM 15203+ · AFAM 15203N
• Drive chain : RENTHAL · AFAM
• Chain lube : LIQUI MOLY 400 ml · LIQUI MOLY 250 ml

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
BETA JONATHAN 350 2006
BETA JONATHAN 350 2005
BETA JONATHAN 350 2004
BETA JONATHAN 350 2003
BETA JONATHAN 350 2002
BETA JONATHAN 350 2001
KAWASAKI KLX 400 2004
KAWASAKI KLX 400 2003
SUZUKI DR 200 1991
SUZUKI DR 200 1990
SUZUKI DR 200 1989
SUZUKI DR 200 1988
SUZUKI DR 200 1987
SUZUKI DR 200 1986
SUZUKI DR 200 SE 2009
SUZUKI DR 200 SE 2008
SUZUKI DR 200 SE 2007
SUZUKI DR 200 SE 1995
SUZUKI DR 250 S 1994
SUZUKI DR 250 S 1993
SUZUKI DR 250 S 1992
SUZUKI DR 250 S 1991
SUZUKI DR 250 S 1990
SUZUKI DR 250 S 1989
SUZUKI DR 250 S 1988
SUZUKI DR 350 1999
SUZUKI DR 350 1998
SUZUKI DR 350 1997
SUZUKI DR 350 1996
SUZUKI DR 350 1995
SUZUKI DR 350 1994
SUZUKI DR 350 1993
SUZUKI DR 350 1992
SUZUKI DR 350 1991
SUZUKI DR 350 1990
SUZUKI DR 350 S 1994
SUZUKI DR 350 S 1993
SUZUKI DR 350 S 1992
SUZUKI DR 350 S 1991
SUZUKI DR 350 S 1990
SUZUKI DR 350 SE 1999
SUZUKI DR 350 SE 1998
SUZUKI DR 350 SE 1997
SUZUKI DR 350 SE 1996
SUZUKI DR 350 SE 1995
SUZUKI DR 350 SE 1994
SUZUKI DR 350 SE 1992
SUZUKI DR 350 SE 1991
SUZUKI DR 350 SE 1990
SUZUKI DR 350 SH 1994
SUZUKI DR 350 SH 1993
SUZUKI DR 350 SH 1992
SUZUKI DR-Z 400 S 2014
SUZUKI DR-Z 400 S 2013
SUZUKI DR-Z 400 S 2012
SUZUKI DR-Z 400 S 2011
SUZUKI DR-Z 400 S 2010
SUZUKI DR-Z 400 S 2009
SUZUKI DR-Z 400 S 2008
SUZUKI DR-Z 400 S 2007
SUZUKI DR-Z 400 S 2006
SUZUKI DR-Z 400 S 2005
SUZUKI DR-Z 400 S 2004
SUZUKI DR-Z 400 S 2003
SUZUKI DR-Z 400 S 2002
SUZUKI DR-Z 400 S 2001
SUZUKI DR-Z 400 S 2000
SUZUKI DR-Z 400 SM 2017
SUZUKI DR-Z 400 SM 2016
SUZUKI DR-Z 400 SM 2015
SUZUKI DR-Z 400 SM 2014
SUZUKI DR-Z 400 SM 2013
SUZUKI DR-Z 400 SM 2012
SUZUKI DR-Z 400 SM 2011
SUZUKI DR-Z 400 SM 2010
SUZUKI DR-Z 400 SM 2009
SUZUKI DR-Z 400 SM 2008
SUZUKI DR-Z 400 SM 2007
SUZUKI DR-Z 400 SM 2006
SUZUKI DR-Z 400 SM 2005
SUZUKI DRZ 250 2007
SUZUKI DRZ 250 2006
SUZUKI DRZ 250 2005
SUZUKI DRZ 250 2004
SUZUKI DRZ 250 2003
SUZUKI DRZ 250 2002
SUZUKI DRZ 250 2001
SUZUKI DRZ 400 2015
SUZUKI DRZ 400 2014
SUZUKI DRZ 400 2013
SUZUKI DRZ 400 2012
SUZUKI DRZ 400 2011
SUZUKI DRZ 400 2010
SUZUKI DRZ 400 2009
SUZUKI DRZ 400 2008
SUZUKI DRZ 400 2007
SUZUKI DRZ 400 2006
SUZUKI DRZ 400 2005
SUZUKI DRZ 400 2004
SUZUKI DRZ 400 2003
SUZUKI DRZ 400 2002
SUZUKI DRZ 400 2001
SUZUKI DRZ 400 2000
SUZUKI RMX 250 1999
SUZUKI RMX 250 1998
SUZUKI RMX 250 1997
SUZUKI RMX 250 1996
SUZUKI RMX 250 1995
SUZUKI RMX 250 1994
SUZUKI RMX 250 1993
SUZUKI RMX 250 1992
SUZUKI RMX 250 1991
SUZUKI RMX 250 1990
SUZUKI RMX 250 1989
SUZUKI TS 250 X 1989
SUZUKI TS 250 X 1988
SUZUKI TS 250 X 1987
SUZUKI TS 250 X 1986
SUZUKI TS 250 X 1985
SUZUKI TS 250 X 1984
SUZUKI TS 250 X 1983
