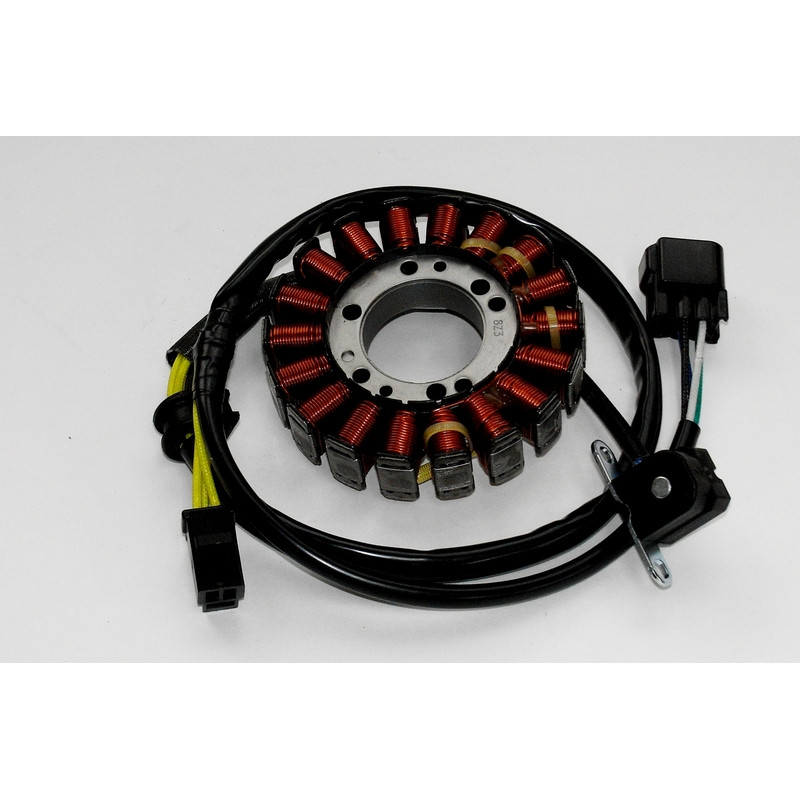

TOURMAX Stator for SUZUKI DR-Z 400 S, DR-Z 400 SM, DRZ 400 and KAWASAKI KLX 400 2000-2017

TOURMAX offers this stator for SUZUKI DR-Z 400 S, DR-Z 400 SM, DRZ 400 and KAWASAKI KLX 400 2000-2017. The stator produces the electricity the machine needs to run. It is fixed under the ignition cover, and the flywheel, with its magnets, spins around it with the engine.

Why replace the stator?

The benefits:

• Get a normal spark and battery charge back after a winding has burnt out.
• A part designed to fit in place of the original, with no modification.
• Repair the charging and ignition without replacing the whole alternator: the original flywheel is kept.

Why choose TOURMAX?

Tourmax has its parts made in Japan by suppliers to the major Japanese manufacturers, at OEM quality level according to the brand.

When should you replace this part?

Blackened windings or burnt varnish, a battery that no longer charges although the regulator is fine, an engine that cuts out when hot or no spark: test the windings with a multimeter.

Specifications and fitting tips

• OEM type stator
• Direct replacement for the OE stator
• Manufacturer part number: STA-301

Cross-Mania tip: Fit a new ignition cover gasket, secure the stator screws as the manufacturer specifies (threadlocker) and route the wiring through its grommet, well away from the flywheel.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
KAWASAKI KLX 400 2004
KAWASAKI KLX 400 2003
SUZUKI DR-Z 400 S 2014
SUZUKI DR-Z 400 S 2013
SUZUKI DR-Z 400 S 2012
SUZUKI DR-Z 400 S 2011
SUZUKI DR-Z 400 S 2010
SUZUKI DR-Z 400 S 2009
SUZUKI DR-Z 400 S 2008
SUZUKI DR-Z 400 S 2007
SUZUKI DR-Z 400 S 2006
SUZUKI DR-Z 400 S 2005
SUZUKI DR-Z 400 S 2004
SUZUKI DR-Z 400 S 2003
SUZUKI DR-Z 400 S 2002
SUZUKI DR-Z 400 S 2001
SUZUKI DR-Z 400 S 2000
SUZUKI DR-Z 400 SM 2017
SUZUKI DR-Z 400 SM 2016
SUZUKI DR-Z 400 SM 2015
SUZUKI DR-Z 400 SM 2014
SUZUKI DR-Z 400 SM 2013
SUZUKI DR-Z 400 SM 2012
SUZUKI DR-Z 400 SM 2011
SUZUKI DR-Z 400 SM 2010
SUZUKI DR-Z 400 SM 2009
SUZUKI DR-Z 400 SM 2008
SUZUKI DR-Z 400 SM 2007
SUZUKI DR-Z 400 SM 2006
SUZUKI DR-Z 400 SM 2005
SUZUKI DRZ 400 2015
SUZUKI DRZ 400 2014
SUZUKI DRZ 400 2013
SUZUKI DRZ 400 2012
SUZUKI DRZ 400 2011
SUZUKI DRZ 400 2010
SUZUKI DRZ 400 2009
SUZUKI DRZ 400 2008
SUZUKI DRZ 400 2007
SUZUKI DRZ 400 2006
SUZUKI DRZ 400 2005
SUZUKI DRZ 400 2004
SUZUKI DRZ 400 2003
SUZUKI DRZ 400 2002
SUZUKI DRZ 400 2001
SUZUKI DRZ 400 2000
