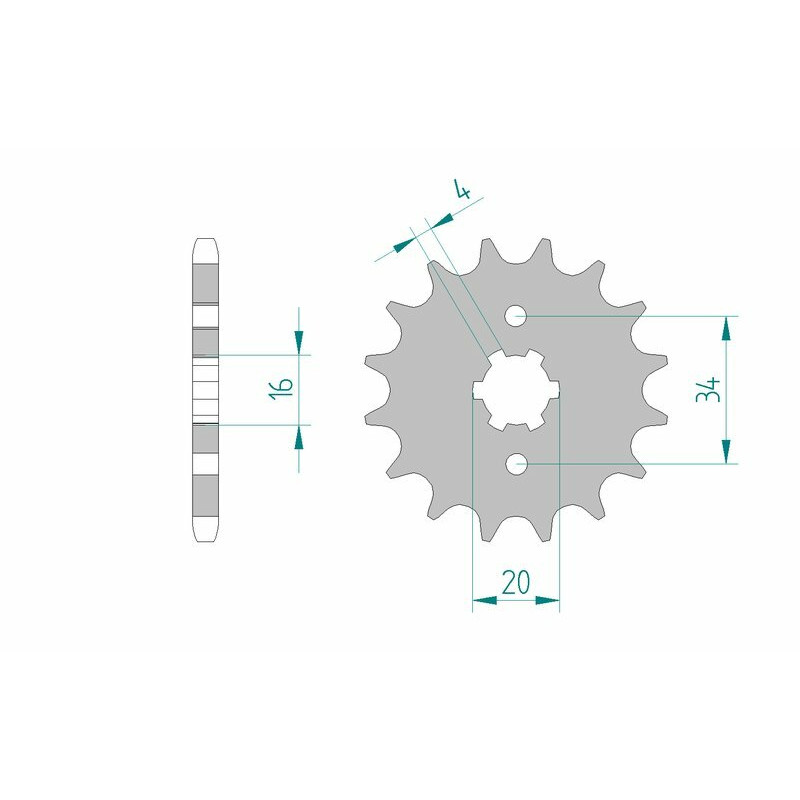

AFAM steel front sprocket 428 pitch for YAMAHA XT 125, SHERCO SE 125 CITYCORP, RIEJU SMX 125 and SCORPA TYS 125 1982-2023

AFAM offers this front sprocket for YAMAHA DT 125, TZR 125, XT 125, XT 125 X, YZF 125, SHERCO SE 125 CITYCORP, SM 125 CITYCORP, RIEJU SMX 125 and SCORPA TY-S 125 F, TYS 125 1982-2023. The front sprocket sits on the gearbox output shaft and passes the engine’s power to the chain, which turns the rear sprocket and the rear wheel.

Why replace the front sprocket?

The benefits:

• An inexpensive part that protects a new chain and rear sprocket.
• Made of steel to withstand much heavier wear than the rear sprocket.
• Changing the number of teeth is the simplest, cheapest way to alter the gearing.

When should you replace the front sprocket?

Dished or hooked teeth: replace it straight away, otherwise it will ruin a new chain within hours.

Specifications and fitting tips

• Chain pitch: 428
• Material: Steel
• Front sprocket version: Standard
• Standard steel front-sprocket
• Top of range manufacturing and quality

Choose the number of teeth from the list: fewer teeth on the front sprocket (or more on the rear) gives more acceleration, the opposite gives a longer gearing.

Cross-Mania tip: Replace the front sprocket together with the chain and rear sprocket, renew the sprocket nut or circlip and check the output shaft seal.

Also needed with this part

• Rear sprocket : AFAM 12207-5 · AFAM 12204
• Drive chain : AFAM A428R1-G 138L · AFAM A520MR2-G 1
• Chain lube : LIQUI MOLY 400 ml · LIQUI MOLY 250 ml

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
BETA RE 125 2009
BETA RE 125 2008
PEUGEOT XPS 125 4T TRAIL E2 2007
PEUGEOT XPS 125 4T TRAIL E2 2006
RIEJU SMX 125 2010
RIEJU SMX 125 2009
RIEJU SMX 125 2008
RIEJU SMX 125 2007
RIEJU SMX 125 2006
RIEJU SMX 125 2005
RIEJU SMX 125 2004
RIEJU SMX 125 2003
SCORPA TY-S 125 F 2008
SCORPA TY-S 125 F 2007
SCORPA TY-S 125 F 2006
SCORPA TYS 125 2008
SCORPA TYS 125 2007
SCORPA TYS 125 2006
SCORPA TYS 125 2005
SCORPA TYS 125 2004
SHERCO SE 125 CITYCORP 2010
SHERCO SE 125 CITYCORP 2009
SHERCO SE 125 CITYCORP 2008
SHERCO SE 125 CITYCORP 2007
SHERCO SE 125 CITYCORP 2006
SHERCO SE 125 CITYCORP 2005
SHERCO SE 125 CITYCORP 2004
SHERCO SE 125 CITYCORP 2003
SHERCO SM 125 CITYCORP 2010
SHERCO SM 125 CITYCORP 2009
SHERCO SM 125 CITYCORP 2008
SHERCO SM 125 CITYCORP 2007
SHERCO SM 125 CITYCORP 2006
SHERCO SM 125 CITYCORP 2005
SHERCO SM 125 CITYCORP 2004
SHERCO SM 125 CITYCORP 2003
SUZUKI DR 125 SM 2010
SUZUKI DR 125 SM 2009
YAMAHA DT 125 1988
YAMAHA DT 125 1987
YAMAHA DT 125 1986
YAMAHA DT 125 1985
YAMAHA DT 125 1984
YAMAHA DT 125 1983
YAMAHA DT 125 1982
YAMAHA TZR 125 1992
YAMAHA TZR 125 1991
YAMAHA TZR 125 1990
YAMAHA TZR 125 1989
YAMAHA TZR 125 1988
YAMAHA TZR 125 1987
YAMAHA XT 125 2010
YAMAHA XT 125 2009
YAMAHA XT 125 2008
YAMAHA XT 125 2007
YAMAHA XT 125 2006
YAMAHA XT 125 2005
YAMAHA XT 125 1991
YAMAHA XT 125 1990
YAMAHA XT 125 1989
YAMAHA XT 125 1988
YAMAHA XT 125 1987
YAMAHA XT 125 1986
YAMAHA XT 125 X 2010
YAMAHA XT 125 X 2009
YAMAHA XT 125 X 2008
YAMAHA XT 125 X 2007
YAMAHA XT 125 X 2006
YAMAHA XT 125 X 2005
YAMAHA XTZ 125 2006
YAMAHA XTZ 125 2005
YAMAHA XTZ 125 2004
YAMAHA YZF 125 2023
YAMAHA YZF 125 2022
YAMAHA YZF 125 2021
YAMAHA YZF 125 2020
YAMAHA YZF 125 2019
