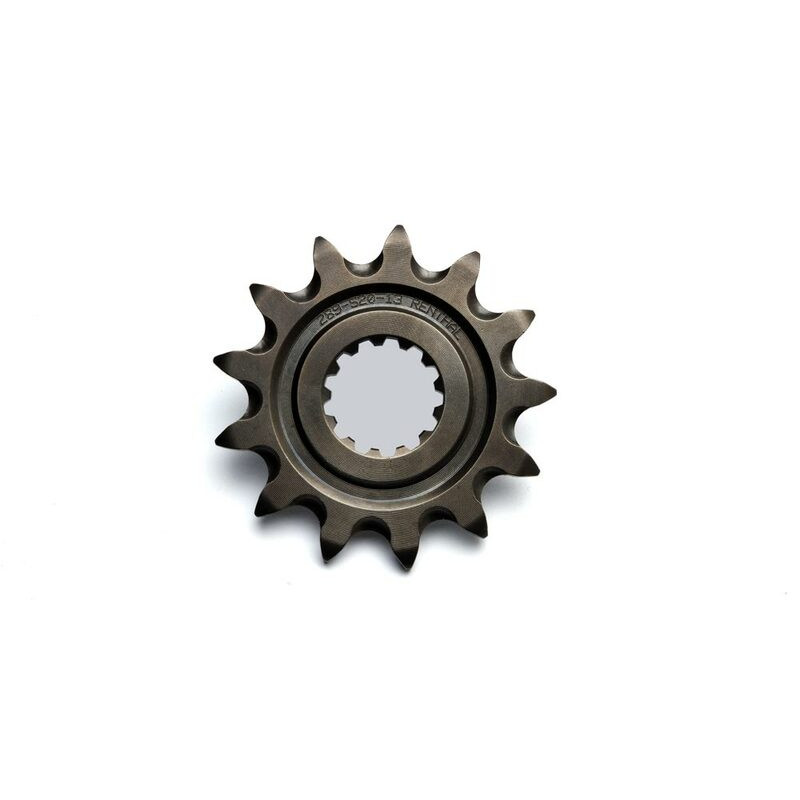

RENTHAL steel front sprocket 13T, 420 pitch for KTM SX 60, SX 65 1998-2011

RENTHAL offers this front sprocket for KTM SX 60, SX 65 1998-2011. The front sprocket sits on the gearbox output shaft and passes the engine’s power to the chain, which turns the rear sprocket and the rear wheel.

Why replace the front sprocket?

The benefits:

• An inexpensive part that protects a new chain and rear sprocket.
• Made of steel to withstand much heavier wear than the rear sprocket.
• Changing the number of teeth is the simplest, cheapest way to alter the gearing.

When should you replace the front sprocket on your KTM SX 65?

Dished or hooked teeth: replace it straight away, otherwise it will ruin a new chain within hours.

Specifications and fitting tips

• Chain pitch: 420
• Material: Steel
• Front sprocket teeth count: 13
• Front sprocket version: Self-cleaning
• Anti-mud: improved evacuation of mud for maximum and constant efficiency
• Made from a nickel-chrome-molybdenum alloy: greater strength
• Manufacturer part number: 307--420-13GP

Cross-Mania tip: Replace the front sprocket together with the chain and rear sprocket, renew the sprocket nut or circlip and check the output shaft seal.

Also needed with this part

• Rear sprocket : AFAM 72101N · AFAM 72101+
• Drive chain : AFAM A420MX2-G · AFAM A420R1-G
• Chain lube : LIQUI MOLY 400 ml · MUC OFF 400 ml

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
KTM SX 60 2000
KTM SX 60 1999
KTM SX 60 1998
KTM SX 65 2011
KTM SX 65 2010
KTM SX 65 2009
KTM SX 65 2008
KTM SX 65 2007
KTM SX 65 2006
KTM SX 65 2005
KTM SX 65 2004
KTM SX 65 2002
KTM SX 65 2001
KTM SX 65 2000
KTM SX 65 1999
KTM SX 65 1998
