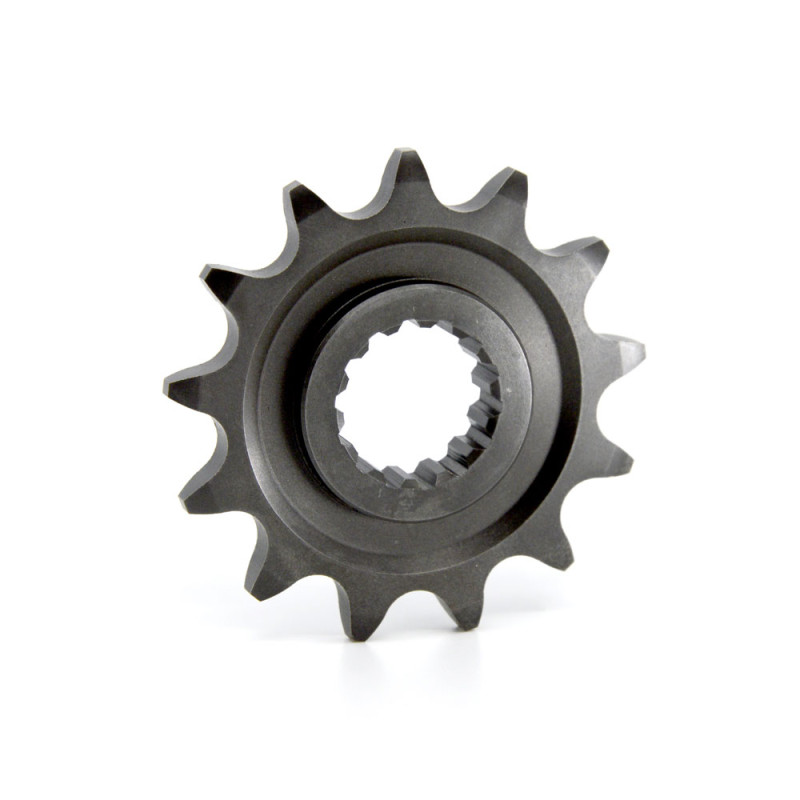

INNTECK Front Sprocket for KAWASAKI KX 60, KX 65, KX 80, KX 85, KX 100 and SUZUKI RM 65 1985-2027

On KAWASAKI KX 60, KX 65, KX 80, KX 85, KX 100 and SUZUKI RM 65 from 1985 to 2027, the INNTECK front sprocket fits in place of the original part. Mounted on the gearbox output shaft (countershaft), the front sprocket passes the engine's torque on to the chain. Every tooth is loaded on every turn of the wheel: a worn front sprocket makes the chain jump and speeds up wear on the whole drivetrain.

Specifications

• Brand: INNTECK
• Manufacturer part numbers: 560KC-13, 560KC-14
• Chain pitch: 420
• Available versions: 13 Teeth: ref. 560KC-13; 14 Teeth: ref. 560KC-14
• Engine: 2-stroke

Choosing the right number of teeth

Start from the stock number of teeth. One tooth less on the front sprocket shortens the gearing (more acceleration, ideal on tight terrain); one tooth more lengthens it (more speed on fast tracks). One tooth on the front sprocket is worth roughly three to four teeth on the rear sprocket.

When to replace it?

• Teeth thinned, pointed or hooked.
• Chain that jumps or slaps under acceleration.
• Play between the sprocket and the shaft, or marked splines.

Check it every time you service the chain and replace it along with the rear sprocket and the chain. Many riders change the front sprocket with every new chain, because it wears much faster than the rear sprocket.

Fitting tips

1. Loosen the sprocket nut or bolt while holding the rear wheel with the brake, before slackening the chain.
2. Clean the countershaft and check the oil seal behind the sprocket.
3. Fit the sprocket the right way round, with a lock washer or threadlocker as on the original assembly, and tighten to the manufacturer's torque.
4. Set the chain tension and lube it with chain lube.

Spare parts and items to plan

• Rear sprocket : RFX · PBR
• Drive chain : AFAM A420MX2-G · AFAM A420R1-G
• Chain lube : LIQUI MOLY 400 ml · MUC OFF 400 ml

Frequently asked questions

Should the rear sprocket be changed too?
If it's worn, yes: a new front sprocket running on a tired rear sprocket and chain is worn out within a few hours.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
KAWASAKI KX 60 2004
KAWASAKI KX 60 2003
KAWASAKI KX 60 2002
KAWASAKI KX 60 2001
KAWASAKI KX 60 2000
KAWASAKI KX 60 1999
KAWASAKI KX 60 1998
KAWASAKI KX 60 1997
KAWASAKI KX 60 1996
KAWASAKI KX 60 1995
KAWASAKI KX 60 1994
KAWASAKI KX 60 1993
KAWASAKI KX 60 1992
KAWASAKI KX 60 1991
KAWASAKI KX 60 1990
KAWASAKI KX 60 1989
KAWASAKI KX 60 1988
KAWASAKI KX 60 1987
KAWASAKI KX 60 1986
KAWASAKI KX 60 1985
KAWASAKI KX 65 2027
KAWASAKI KX 65 2026
KAWASAKI KX 65 2025
KAWASAKI KX 65 2024
KAWASAKI KX 65 2023
KAWASAKI KX 65 2022
KAWASAKI KX 65 2021
KAWASAKI KX 65 2020
KAWASAKI KX 65 2019
KAWASAKI KX 65 2018
KAWASAKI KX 65 2017
KAWASAKI KX 65 2016
KAWASAKI KX 65 2015
KAWASAKI KX 65 2014
KAWASAKI KX 65 2013
KAWASAKI KX 65 2012
KAWASAKI KX 65 2011
KAWASAKI KX 65 2010
KAWASAKI KX 65 2009
KAWASAKI KX 65 2008
KAWASAKI KX 65 2007
KAWASAKI KX 65 2006
KAWASAKI KX 65 2005
KAWASAKI KX 65 2004
KAWASAKI KX 65 2003
KAWASAKI KX 65 2002
KAWASAKI KX 65 2001
KAWASAKI KX 65 2000
KAWASAKI KX 80 2000
KAWASAKI KX 80 1999
KAWASAKI KX 80 1998
KAWASAKI KX 80 1997
KAWASAKI KX 80 1996
KAWASAKI KX 80 1995
KAWASAKI KX 80 1994
KAWASAKI KX 80 1993
KAWASAKI KX 80 1992
KAWASAKI KX 80 1991
KAWASAKI KX 80 1990
KAWASAKI KX 80 1989
KAWASAKI KX 80 1988
KAWASAKI KX 80 1987
KAWASAKI KX 80 1986
KAWASAKI KX 85 2027
KAWASAKI KX 85 2026
KAWASAKI KX 85 2025
KAWASAKI KX 85 2024
KAWASAKI KX 85 2023
KAWASAKI KX 85 2022
KAWASAKI KX 85 2021
KAWASAKI KX 85 2020
KAWASAKI KX 85 2019
KAWASAKI KX 85 2018
KAWASAKI KX 85 2017
KAWASAKI KX 85 2016
KAWASAKI KX 85 2015
KAWASAKI KX 85 2014
KAWASAKI KX 85 2013
KAWASAKI KX 85 2012
KAWASAKI KX 85 2011
KAWASAKI KX 85 2010
KAWASAKI KX 85 2009
KAWASAKI KX 85 2008
KAWASAKI KX 85 2007
KAWASAKI KX 85 2006
KAWASAKI KX 85 2005
KAWASAKI KX 85 2004
KAWASAKI KX 85 2003
KAWASAKI KX 85 2002
KAWASAKI KX 85 2001
KAWASAKI KX 100 2026
KAWASAKI KX 100 2025
KAWASAKI KX 100 2024
KAWASAKI KX 100 2023
KAWASAKI KX 100 2022
KAWASAKI KX 100 2021
KAWASAKI KX 100 2020
KAWASAKI KX 100 2019
KAWASAKI KX 100 2018
KAWASAKI KX 100 2017
KAWASAKI KX 100 2016
KAWASAKI KX 100 2015
KAWASAKI KX 100 2014
KAWASAKI KX 100 2013
KAWASAKI KX 100 2012
KAWASAKI KX 100 2011
KAWASAKI KX 100 2010
KAWASAKI KX 100 2009
KAWASAKI KX 100 2008
KAWASAKI KX 100 2007
KAWASAKI KX 100 2006
KAWASAKI KX 100 2005
KAWASAKI KX 100 2004
KAWASAKI KX 100 2003
KAWASAKI KX 100 2002
KAWASAKI KX 100 2001
KAWASAKI KX 100 2000
KAWASAKI KX 100 1999
KAWASAKI KX 100 1998
KAWASAKI KX 100 1997
KAWASAKI KX 100 1996
KAWASAKI KX 100 1995
SUZUKI RM 65 2006
SUZUKI RM 65 2005
SUZUKI RM 65 2004
SUZUKI RM 65 2003
