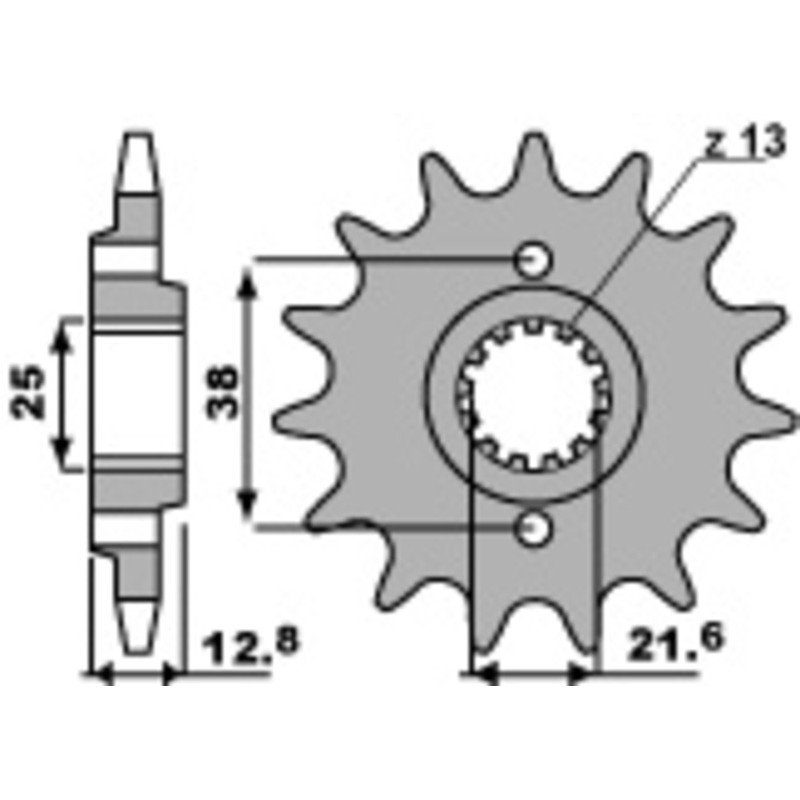

PBR steel front sprocket 520 pitch for KAWASAKI KLR 650, KLX 650 1990-2019

PBR offers this front sprocket for KAWASAKI KLR 650, KLX 650 1990-2019. The front sprocket sits on the gearbox output shaft and passes the engine’s power to the chain, which turns the rear sprocket and the rear wheel.

Why replace the front sprocket?

The benefits:

• An inexpensive part that protects a new chain and rear sprocket.
• Made of steel to withstand much heavier wear than the rear sprocket.
• Changing the number of teeth is the simplest, cheapest way to alter the gearing.

When should you replace the front sprocket on your KAWASAKI KLR 650?

Dished or hooked teeth: replace it straight away, otherwise it will ruin a new chain within hours.

Specifications and fitting tips

• Chain pitch: 520
• Material: Steel
• Front sprocket version: Standard
• High quality steel alloy 18NCD5
• High wear resistance

Choose the number of teeth from the list: fewer teeth on the front sprocket (or more on the rear) gives more acceleration, the opposite gives a longer gearing.

Cross-Mania tip: Replace the front sprocket together with the chain and rear sprocket, renew the sprocket nut or circlip and check the output shaft seal.

Also needed with this part

• Rear sprocket : JT SPROCKETS · PBR
• Drive chain : see the selection
• Chain lube : LIQUI MOLY 400 ml · SCOTTOILER

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
KAWASAKI KLR 650 2019
KAWASAKI KLR 650 2018
KAWASAKI KLR 650 2017
KAWASAKI KLR 650 2016
KAWASAKI KLR 650 2015
KAWASAKI KLR 650 2014
KAWASAKI KLR 650 2013
KAWASAKI KLR 650 2012
KAWASAKI KLR 650 2011
KAWASAKI KLR 650 2010
KAWASAKI KLR 650 2009
KAWASAKI KLR 650 2008
KAWASAKI KLR 650 2004
KAWASAKI KLR 650 2003
KAWASAKI KLR 650 2002
KAWASAKI KLR 650 2001
KAWASAKI KLR 650 2000
KAWASAKI KLR 650 1999
KAWASAKI KLR 650 1998
KAWASAKI KLR 650 1997
KAWASAKI KLR 650 1996
KAWASAKI KLR 650 1995
KAWASAKI KLR 650 1994
KAWASAKI KLR 650 1993
KAWASAKI KLR 650 1992
KAWASAKI KLR 650 1991
KAWASAKI KLR 650 1990
KAWASAKI KLX 650 2001
KAWASAKI KLX 650 2000
KAWASAKI KLX 650 1999
KAWASAKI KLX 650 1998
KAWASAKI KLX 650 1997
KAWASAKI KLX 650 1996
KAWASAKI KLX 650 1995
KAWASAKI KLX 650 1994
KAWASAKI KLX 650 1993
