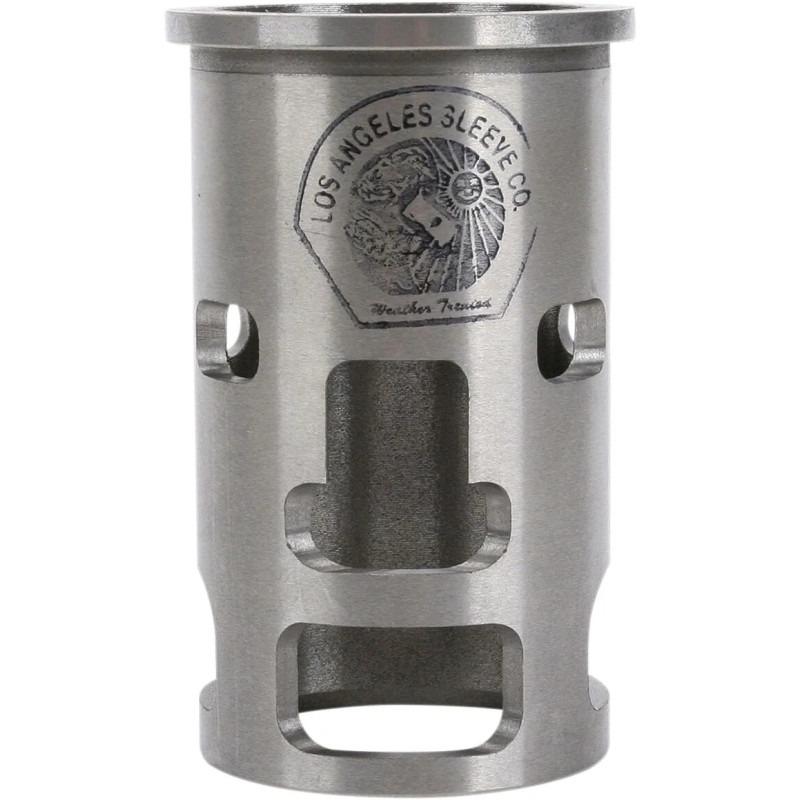

LA SLEEVE cylinder sleeve for KAWASAKI KX 65 A and SUZUKI RM 65 from 2002 to 2020

LA SLEEVE offers this cylinder sleeve for KAWASAKI KX 65 A and SUZUKI RM 65 from 2002 to 2020. The sleeve is the wall the piston moves up and down in. When it is worn or scored, it can be replaced in the original cylinder instead of buying a complete cylinder.

Why re-sleeve a cylinder?

The benefits:

• Save a cylinder that is scored or worn beyond its last oversize.
• Cast iron allows several rebores later: an oversize piston can be fitted at the next rebuilds.
• Often cheaper than a new cylinder.

Why choose LA SLEEVE?

L.A. Sleeve has been sleeving cylinders since 1945: its sleeves are centrifugally cast from a chrome-molybdenum alloy, hard and wear-resistant.

When should you replace the cylinder?

A scored or oval cylinder, or one with damaged plating, loses compression and wears the piston quickly. Measure the bore at every top-end rebuild: beyond the wear limit the cylinder must be replaced or resleeved.

Specifications and fitting tips

• Bore: 44.50 mm
• Displacement: 64.7 cm³
• Material: Chromoly steel
• Engine: 2-stroke
• Precision-cut ports for easy installation and alignment
• Precision-ground outside diameter

Cross-Mania tip: Check the diameter of the supplied or required piston and replace the top-end gaskets. A big bore may require carburation or fuel-injection adjustment.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
KAWASAKI KX 65 A 2020
KAWASAKI KX 65 A 2019
KAWASAKI KX 65 A 2018
KAWASAKI KX 65 A 2017
KAWASAKI KX 65 A 2016
KAWASAKI KX 65 A 2015
KAWASAKI KX 65 A 2014
KAWASAKI KX 65 A 2013
KAWASAKI KX 65 A 2012
KAWASAKI KX 65 A 2011
KAWASAKI KX 65 A 2010
KAWASAKI KX 65 A 2009
KAWASAKI KX 65 A 2008
KAWASAKI KX 65 A 2007
KAWASAKI KX 65 A 2006
KAWASAKI KX 65 A 2005
KAWASAKI KX 65 A 2004
KAWASAKI KX 65 A 2003
KAWASAKI KX 65 A 2002
SUZUKI RM 65 2005
SUZUKI RM 65 2004
SUZUKI RM 65 2003
