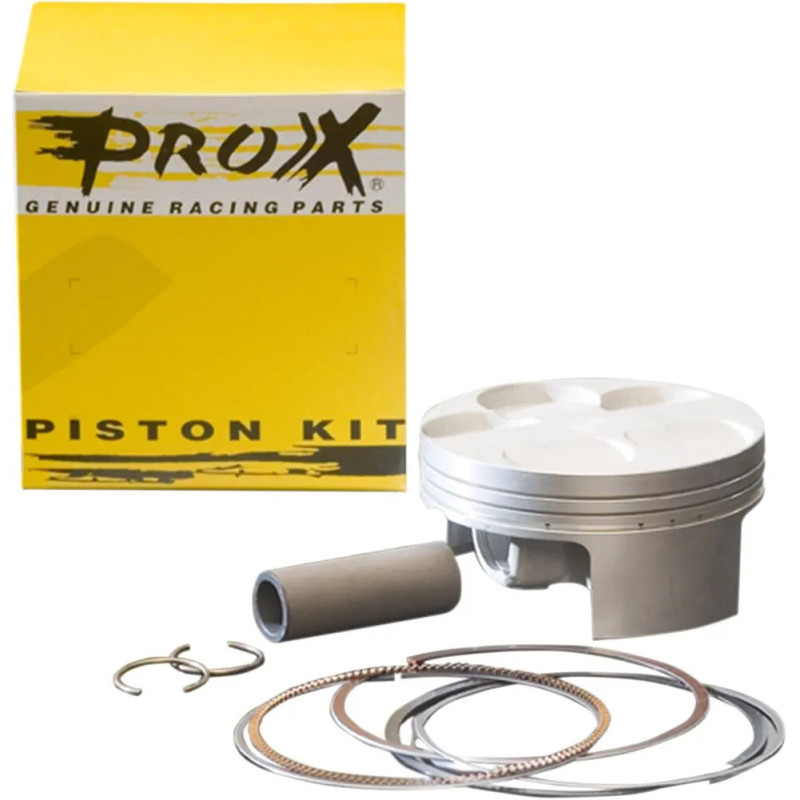

PROX piston kit for YAMAHA TT 600, TT 600 E, TT 600 R, XT 600, XT 600 E, XT 600 Z from 1983 to 2004 - 01.2601.000

PROX offers this piston kit for YAMAHA TT 600, TT 600 E, TT 600 R, XT 600, XT 600 E, XT 600 Z from 1983 to 2004. The piston slides in the cylinder and takes the force of the air-fuel combustion, passing it to the connecting rod and crankshaft.

Why choose a cast piston?

A cast piston is made by pouring liquid aluminium into a mould: it is what most manufacturers fit as standard, especially on two-strokes.

• High-silicon alloy: it expands little, is fitted with tight clearance and stays quiet when cold.
• Good wear resistance of the skirt and ring grooves.
• Lower price than a forged piston, for OEM quality in normal use.
• Limit: less tolerant of overheating and highly tuned engines.

Why choose PROX?

ProX has its pistons made in Japan and the USA, with Japanese rings (Riken, TP or NPR) and tolerances at least equal to OEM; most of its four-stroke pistons are forged.

When should you replace the piston on your YAMAHA XT 600 E?

Harder starting, loss of power, blue smoke, oil consumption or a knock when cold: these are the signs of a tired top end.

No manufacturer hour figure for this model. Cross-Mania guideline: compression check every 50 h in hard use and every 100 h for leisure.

Specifications and fitting tips

• Bore: 95.00 mm
• Piston material: Aluminium alloy, Cast
• Ring material: Steel
• Style: Cast Replica
• Piston size: Standard
• ProX cast pistons offer high stability

Cross-Mania tip: Measure the cylinder bore before ordering: the piston must match your cylinder size. Follow the manufacturer's break-in procedure and replace the top-end gaskets at the same time.

Also needed with this part

• Top-end gasket kit : ATHENA · PROX
• Spark plug : see the selection
• 4-stroke engine oil : LIQUI MOLY 10W40 1 L · MOTUL 10W50
• Air filter : TECNIUM

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
YAMAHA TT 600 1991
YAMAHA TT 600 1990
YAMAHA TT 600 1989
YAMAHA TT 600 1988
YAMAHA TT 600 1987
YAMAHA TT 600 1986
YAMAHA TT 600 1985
YAMAHA TT 600 1984
YAMAHA TT 600 E 2000
YAMAHA TT 600 E 1999
YAMAHA TT 600 E 1998
YAMAHA TT 600 E 1997
YAMAHA TT 600 E 1996
YAMAHA TT 600 E 1995
YAMAHA TT 600 E 1994
YAMAHA TT 600 R 2003
YAMAHA TT 600 R 2002
YAMAHA TT 600 R 2001
YAMAHA TT 600 R 2000
YAMAHA TT 600 R 1999
YAMAHA TT 600 R 1998
YAMAHA TT 600 R 1997
YAMAHA TT 600 RE 2004
YAMAHA TT 600 S 1997
YAMAHA TT 600 S 1996
YAMAHA TT 600 S 1995
YAMAHA TT 600 S 1994
YAMAHA TT 600 S 1993
YAMAHA XT 600 1990
YAMAHA XT 600 1989
YAMAHA XT 600 1988
YAMAHA XT 600 1987
YAMAHA XT 600 1986
YAMAHA XT 600 1985
YAMAHA XT 600 1984
YAMAHA XT 600 E 2003
YAMAHA XT 600 E 2002
YAMAHA XT 600 E 2001
YAMAHA XT 600 E 2000
YAMAHA XT 600 E 1999
YAMAHA XT 600 E 1998
YAMAHA XT 600 E 1997
YAMAHA XT 600 E 1996
YAMAHA XT 600 E 1995
YAMAHA XT 600 E 1994
YAMAHA XT 600 E 1993
YAMAHA XT 600 E 1992
YAMAHA XT 600 E 1991
YAMAHA XT 600 E 1990
YAMAHA XT 600 K 1995
YAMAHA XT 600 K 1994
YAMAHA XT 600 K 1993
YAMAHA XT 600 K 1992
YAMAHA XT 600 K 1991
YAMAHA XT 600 Z 1991
YAMAHA XT 600 Z 1990
YAMAHA XT 600 Z 1989
YAMAHA XT 600 Z 1988
YAMAHA XT 600 Z 1987
YAMAHA XT 600 Z 1986
YAMAHA XT 600 Z 1985
YAMAHA XT 600 Z 1984
YAMAHA XT 600 Z 1983
YAMAHA YFM 600 F 2000
YAMAHA YFM 600 FH 2001
YAMAHA YFM 600 FH 2000
YAMAHA YFM 600 FWA 1999
YAMAHA YFM 600 FWA 1998
