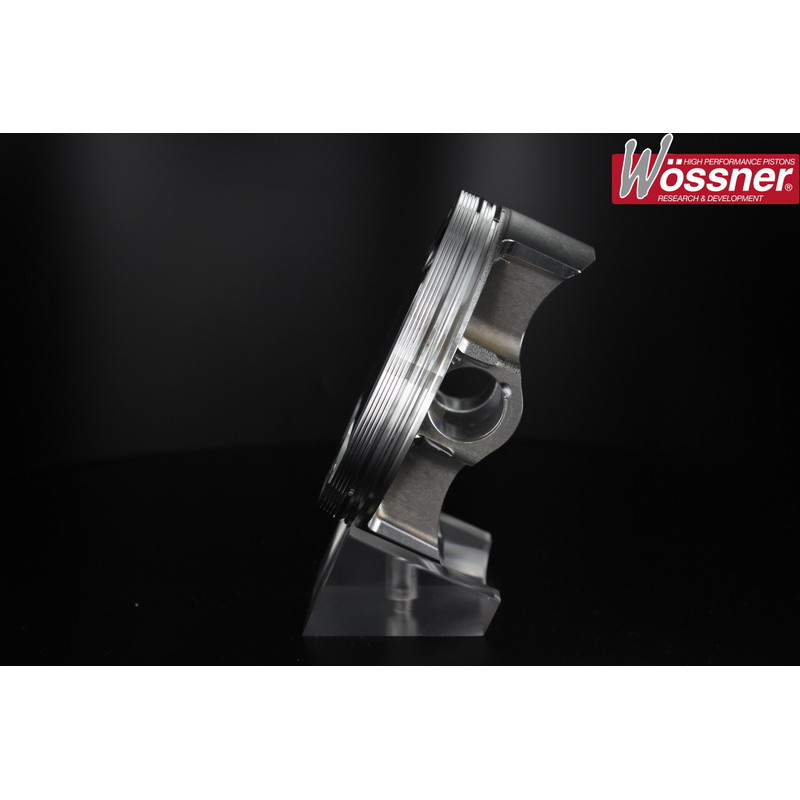

Wössner Forged Piston for SUZUKI RMX 450, RMZ 450 2008-2019
€222.90
Tax Included
The piston moves up and down in the cylinder to turn combustion into motion: this kit replaces it along with its rings, pin and clips.
WOSSNER offers this piston kit for SUZUKI RMX 450, RMZ 450 2008-2019. The piston slides in the cylinder and takes the force of the air-fuel combustion, passing it to the connecting rod and crankshaft.
Why choose a forged piston?
Instead of simply being cast, a forged piston is hot-pressed under very high pressure and then machined: its metal is denser and free of air pockets.
- Stronger when hot: it copes better with high revs, overheating and detonation.
- Lighter for the same strength: less stress on the connecting rod and bearings.
- Good to know: depending on the alloy, it expands a little more and is fitted with more clearance; slight noise when cold is normal.
- Why does it cost more? Forging tools, full machining and surface treatments cost more than simple casting.
Why choose WOSSNER?
Wössner has forged its own pistons since 1994: Molykote-coated skirt to reduce friction and ease running-in, kit supplied complete with rings, pin and clips.
When should you replace the piston on your SUZUKI RMX 450?
Harder starting, loss of power, blue smoke, oil consumption or a knock when cold: these are the signs of a tired top end.
Recommended hours for a top-end rebuild (manufacturer recommendation for the Suzuki RM-Z 250 / 450):
- Racing: every 12 h (about 6 races).
- Leisure: no Suzuki figure; Cross-Mania guideline: compression check at around 24 h.
Specifications and fitting tips
- Material: Aluminium
- Oversize Letter: A
- Rings Quantity: 2
- Stroke: 4T
- Forged piston
- Anti friction coated skirt
- Manufacturer part number: 8716DA
Cross-Mania tip: Measure the cylinder bore before ordering: the piston must match your cylinder size. Follow the manufacturer's break-in procedure and replace the top-end gaskets at the same time.
Also needed with this part
- Top-end gasket kit : PROX · ATHENA
- Spark plug : NGK 92743 · NGK 4948
- 4-stroke engine oil : LIQUI MOLY 10W40 1 L · MOTUL 10W50
- Air filter : TWIN AIR 153215 · TWIN AIR 153215DC
Compatibility
Check the exact model and year of your bike in the list below before ordering.
Fits:
SUZUKI RMX 450 2019
SUZUKI RMX 450 2018
SUZUKI RMX 450 2017
SUZUKI RMX 450 2016
SUZUKI RMX 450 2015
SUZUKI RMX 450 2014
SUZUKI RMX 450 2013
SUZUKI RMX 450 2012
SUZUKI RMX 450 2011
SUZUKI RMX 450 2010
SUZUKI RMZ 450 2012
SUZUKI RMZ 450 2011
SUZUKI RMZ 450 2010
SUZUKI RMZ 450 2009
SUZUKI RMZ 450 2008
