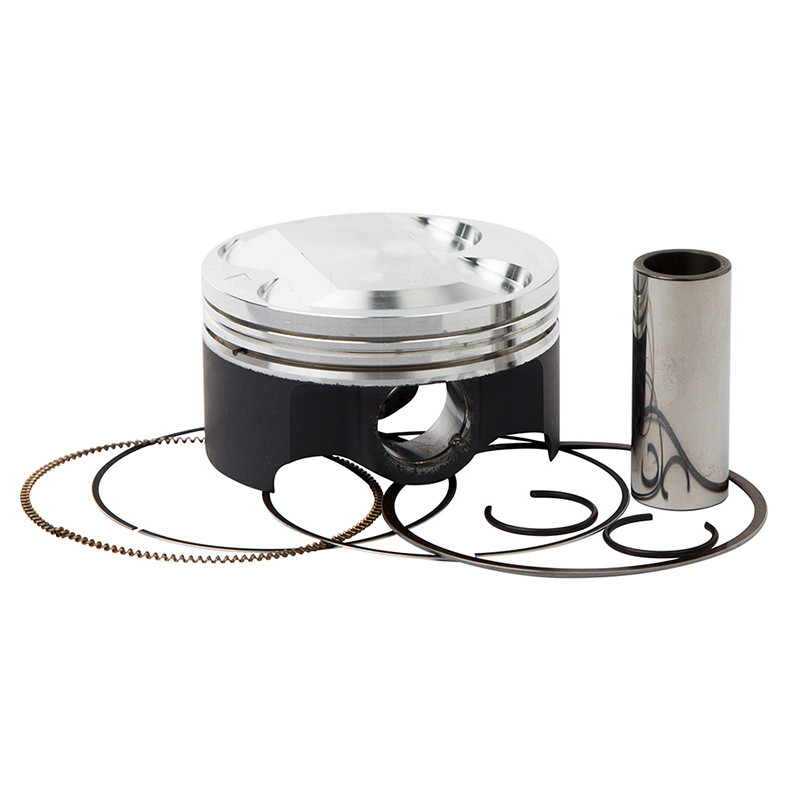

VERTEX Forged Piston for POLARIS SPORTSMAN 570, SPORTSMAN 570 6X6 EPS, SPORTSMAN 570 SP, SPORTSMAN 570 TRG EPS, SPORTSMAN 570 X2

VERTEX offers this piston kit for POLARIS SPORTSMAN 570, SPORTSMAN 570 6X6 EPS, SPORTSMAN 570 SP, SPORTSMAN 570 TRG EPS, SPORTSMAN 570 X2 2014-2021. The piston slides in the cylinder and takes the force of the air-fuel combustion, passing it to the connecting rod and crankshaft.

Why choose a forged piston?

Instead of simply being cast, a forged piston is hot-pressed under very high pressure and then machined: its metal is denser and free of air pockets.

• Stronger when hot: it copes better with high revs, overheating and detonation.
• Lighter for the same strength: less stress on the connecting rod and bearings.
• Good to know: depending on the alloy, it expands a little more and is fitted with more clearance; slight noise when cold is normal.
• Why does it cost more? Forging tools, full machining and surface treatments cost more than simple casting.

Why choose VERTEX?

Vertex has made its pistons in Italy since 1953 and has supplied KTM’s original pistons since 1996: molybdenum-disulphide coated skirt and Japanese rings. Its four-stroke pistons are forged from 2618 alloy.

When should you replace the piston on your POLARIS SPORTSMAN 570?

Harder starting, loss of power, blue smoke, oil consumption or a knock when cold: these are the signs of a tired top end.

No manufacturer hour figure for this model. Cross-Mania guideline: compression check every 50 h in hard use and every 100 h for leisure.

Specifications and fitting tips

• Material: Aluminium
• Piston compression: Standard
• Oversize Letter: B
• Rings Quantity: Set
• Stroke: 4T
• High precision forged piston
• Manufacturer part number: 24252B

Cross-Mania tip: Measure the cylinder bore before ordering: the piston must match your cylinder size. Follow the manufacturer's break-in procedure and replace the top-end gaskets at the same time.

Also needed with this part

• 4-stroke engine oil : LIQUI MOLY 10W40 1 L · MOTUL 10W50

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
POLARIS SPORTSMAN 570 2020
POLARIS SPORTSMAN 570 2019
POLARIS SPORTSMAN 570 2018
POLARIS SPORTSMAN 570 2017
POLARIS SPORTSMAN 570 2016
POLARIS SPORTSMAN 570 2015
POLARIS SPORTSMAN 570 2014
POLARIS SPORTSMAN 570 6X6 EPS 2021
POLARIS SPORTSMAN 570 6X6 EPS 2020
POLARIS SPORTSMAN 570 6X6 EPS 2019
POLARIS SPORTSMAN 570 6X6 EPS 2018
POLARIS SPORTSMAN 570 6X6 EPS 2017
POLARIS SPORTSMAN 570 EPS 2019
POLARIS SPORTSMAN 570 EPS 2018
POLARIS SPORTSMAN 570 EPS 2017
POLARIS SPORTSMAN 570 FOREST 2014
POLARIS SPORTSMAN 570 SP 2019
POLARIS SPORTSMAN 570 SP 2018
POLARIS SPORTSMAN 570 SP 2017
POLARIS SPORTSMAN 570 SP 2016
POLARIS SPORTSMAN 570 SP 2015
POLARIS SPORTSMAN 570 SP 2014
POLARIS SPORTSMAN 570 TRG 2016
POLARIS SPORTSMAN 570 TRG 2015
POLARIS SPORTSMAN 570 TRG 2014
POLARIS SPORTSMAN 570 TRG EPS 2020
POLARIS SPORTSMAN 570 TRG EPS 2019
POLARIS SPORTSMAN 570 TRG EPS 2018
POLARIS SPORTSMAN 570 TRG EPS 2017
POLARIS SPORTSMAN 570 X2 2021
POLARIS SPORTSMAN 570 X2 2020
POLARIS SPORTSMAN 570 X2 2019
POLARIS SPORTSMAN 570 X2 2018
POLARIS SPORTSMAN 570 X2 2017
POLARIS SPORTSMAN 570 X2 2015
