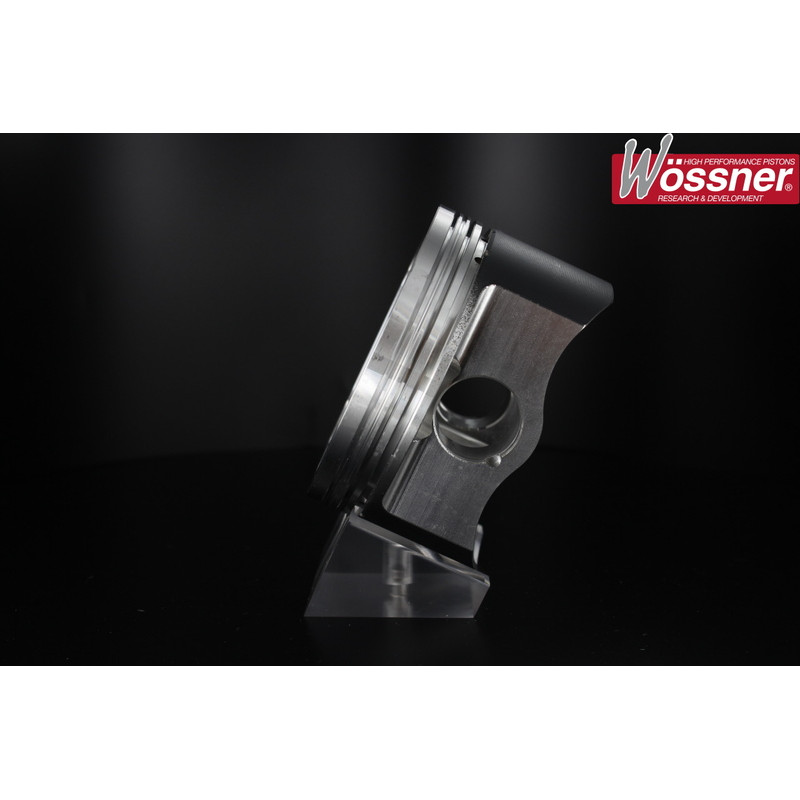

Wössner Forged Piston for POLARIS SCRAMBLER 500, SPORTSMAN 500, SPORTSMAN 500 6X6, SPORTSMAN 500 EBS 4X4, SPORTSMAN 500 HO

WOSSNER offers this piston kit for POLARIS SCRAMBLER 500, SPORTSMAN 500, SPORTSMAN 500 6X6, SPORTSMAN 500 EBS 4X4, SPORTSMAN 500 HO 1996-2014. The piston slides in the cylinder and takes the force of the air-fuel combustion, passing it to the connecting rod and crankshaft.

Why choose a forged piston?

Instead of simply being cast, a forged piston is hot-pressed under very high pressure and then machined: its metal is denser and free of air pockets.

• Stronger when hot: it copes better with high revs, overheating and detonation.
• Lighter for the same strength: less stress on the connecting rod and bearings.
• Good to know: depending on the alloy, it expands a little more and is fitted with more clearance; slight noise when cold is normal.
• Why does it cost more? Forging tools, full machining and surface treatments cost more than simple casting.

Why choose WOSSNER?

Wössner has forged its own pistons since 1994: Molykote-coated skirt to reduce friction and ease running-in, kit supplied complete with rings, pin and clips.

When should you replace the piston on your POLARIS SPORTSMAN 500?

Harder starting, loss of power, blue smoke, oil consumption or a knock when cold: these are the signs of a tired top end.

No manufacturer hour figure for this model. Cross-Mania guideline: compression check every 50 h in hard use and every 100 h for leisure.

Specifications and fitting tips

• Material: Aluminium
• Piston type: Forged
• Oversize Letter: A
• Forged piston
• Anti friction coated skirt
• Manufacturer part number: 8691DA

Cross-Mania tip: Measure the cylinder bore before ordering: the piston must match your cylinder size. Follow the manufacturer's break-in procedure and replace the top-end gaskets at the same time.

Also needed with this part

• 4-stroke engine oil : MOTUL 10W50 · LIQUI MOLY 10W40 1 L

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
POLARIS SCRAMBLER 500 2013
POLARIS SCRAMBLER 500 2012
POLARIS SCRAMBLER 500 2011
POLARIS SCRAMBLER 500 2010
POLARIS SCRAMBLER 500 2009
POLARIS SCRAMBLER 500 2008
POLARIS SCRAMBLER 500 2007
POLARIS SCRAMBLER 500 2006
POLARIS SCRAMBLER 500 2005
POLARIS SCRAMBLER 500 2004
POLARIS SCRAMBLER 500 2003
POLARIS SCRAMBLER 500 2002
POLARIS SCRAMBLER 500 2001
POLARIS SCRAMBLER 500 2000
POLARIS SCRAMBLER 500 1999
POLARIS SCRAMBLER 500 1998
POLARIS SCRAMBLER 500 1997
POLARIS SCRAMBLER 500 1996
POLARIS SPORTSMAN 500 2014
POLARIS SPORTSMAN 500 2013
POLARIS SPORTSMAN 500 2012
POLARIS SPORTSMAN 500 2011
POLARIS SPORTSMAN 500 2010
POLARIS SPORTSMAN 500 2009
POLARIS SPORTSMAN 500 2008
POLARIS SPORTSMAN 500 2007
POLARIS SPORTSMAN 500 2006
POLARIS SPORTSMAN 500 2005
POLARIS SPORTSMAN 500 2004
POLARIS SPORTSMAN 500 2003
POLARIS SPORTSMAN 500 2002
POLARIS SPORTSMAN 500 2001
POLARIS SPORTSMAN 500 2000
POLARIS SPORTSMAN 500 1999
POLARIS SPORTSMAN 500 1998
POLARIS SPORTSMAN 500 1997
POLARIS SPORTSMAN 500 1996
POLARIS SPORTSMAN 500 6X6 2011
POLARIS SPORTSMAN 500 6X6 2010
POLARIS SPORTSMAN 500 6X6 2009
POLARIS SPORTSMAN 500 6X6 2008
POLARIS SPORTSMAN 500 6X6 2007
POLARIS SPORTSMAN 500 6X6 2006
POLARIS SPORTSMAN 500 6X6 2005
POLARIS SPORTSMAN 500 6X6 2004
POLARIS SPORTSMAN 500 6X6 2003
POLARIS SPORTSMAN 500 6X6 2002
POLARIS SPORTSMAN 500 6X6 2001
POLARIS SPORTSMAN 500 6X6 2000
POLARIS SPORTSMAN 500 EBS 4X4 2002
POLARIS SPORTSMAN 500 EBS 4X4 2001
POLARIS SPORTSMAN 500 EBS 4X4 2000
POLARIS SPORTSMAN 500 EBS 4X4 1999
POLARIS SPORTSMAN 500 EBS 4X4 1998
POLARIS SPORTSMAN 500 EFI EBS 2007
POLARIS SPORTSMAN 500 HO 2014
POLARIS SPORTSMAN 500 HO 2013
POLARIS SPORTSMAN 500 HO 2012
POLARIS SPORTSMAN 500 HO 2011
POLARIS SPORTSMAN 500 HO 2010
POLARIS SPORTSMAN 500 HO 2009
POLARIS SPORTSMAN 500 HO 2008
POLARIS SPORTSMAN 500 HO 2007
POLARIS SPORTSMAN 500 HO 2006
POLARIS SPORTSMAN 500 HO 2005
POLARIS SPORTSMAN 500 HO 2004
POLARIS SPORTSMAN 500 HO 2003
POLARIS SPORTSMAN 500 HO 2002
POLARIS SPORTSMAN 500 HO 2001
POLARIS SPORTSMAN 500 HO 2000
POLARIS SPORTSMAN 500 HO CARB 2012
POLARIS SPORTSMAN 500 HO CARB 2011
POLARIS SPORTSMAN 500 HO CARB 2010
POLARIS SPORTSMAN 500 HO CARB 2009
POLARIS SPORTSMAN 500 HO CARB 2008
POLARIS SPORTSMAN 500 HO TRG 2013
POLARIS SPORTSMAN 500 HO TRG 2012
POLARIS SPORTSMAN 500 HO TRG 2011
POLARIS SPORTSMAN 500 HO TRG 2010
POLARIS SPORTSMAN 500 RSE 2001
POLARIS SPORTSMAN 500 RSE 2000
POLARIS SPORTSMAN 500 RSE 1999
POLARIS SPORTSMAN 500 TOURING 2012
POLARIS SPORTSMAN 500 TOURING 2011
POLARIS SPORTSMAN 500 TOURING 2010
POLARIS SPORTSMAN 500 TOURING 2009
POLARIS SPORTSMAN 500 X2 2009
POLARIS SPORTSMAN 500 X2 2008
POLARIS SPORTSMAN 500 X2 2007
POLARIS SPORTSMAN 500 X2 2006
POLARIS SPORTSMAN 500 X2 4X4 2006
