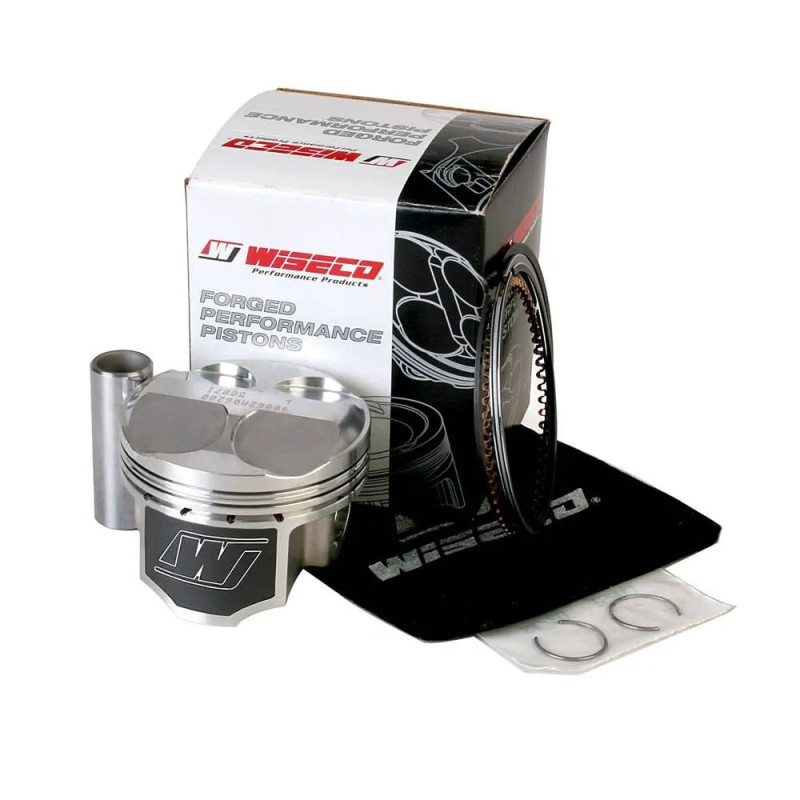

WISECO piston kit for KTM ADVENTURE 640, ADVENTURE 640 R, DUKE 640 E, EXC 620 LC4, LC4 640 E, SC 620 LC4 from 1994 to 2007

WISECO offers this piston kit for KTM ADVENTURE 640, ADVENTURE 640 R, DUKE 640 E, EXC 620 LC4, LC4 640 E, SC 620 LC4 from 1994 to 2007. The piston slides in the cylinder and takes the force of the air-fuel combustion, passing it to the connecting rod and crankshaft.

Why choose a forged piston?

Instead of simply being cast, a forged piston is hot-pressed under very high pressure and then machined: its metal is denser and free of air pockets.

• Stronger when hot: it copes better with high revs, overheating and detonation.
• Lighter for the same strength: less stress on the connecting rod and bearings.
• Good to know: depending on the alloy, it expands a little more and is fitted with more clearance; slight noise when cold is normal.
• Why does it cost more? Forging tools, full machining and surface treatments cost more than simple casting.

Why choose WISECO?

Wiseco has forged its pistons in Mentor (Ohio, USA) since 1941 and controls the whole process, from aluminium bar to the friction-reducing ArmorGlide skirt coating. Its pistons are developed with Team Honda HRC in Supercross (450 class since 2018).

When should you replace the piston on your KTM ADVENTURE 640 R?

Harder starting, loss of power, blue smoke, oil consumption or a knock when cold: these are the signs of a tired top end.

No manufacturer hour figure for this model. Cross-Mania guideline: compression check every 30 h in hard use and every 60 h for leisure.

Specifications and fitting tips

• Bore: 101.00 mm
• Oversize: Standard
• Stroke: 76.00 mm
• Piston material: Aluminium alloy, Forged
• Ring material: Molybdenum coating, Steel, Cast
• All Wiseco pistons are forged from aerospace aluminium alloy on Wiseco's state-of-the-art presses

Cross-Mania tip: Measure the cylinder bore before ordering: the piston must match your cylinder size. Follow the manufacturer's break-in procedure and replace the top-end gaskets at the same time.

Also needed with this part

• Top-end gasket kit : ATHENA
• Spark plug : see the selection
• 4-stroke engine oil : LIQUI MOLY 10W40 1 L · MOTUL 10W50
• Air filter : TWIN AIR · ATHENA

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
KTM ADVENTURE 640 2006
KTM ADVENTURE 640 2005
KTM ADVENTURE 640 2004
KTM ADVENTURE 640 2003
KTM ADVENTURE 640 2002
KTM ADVENTURE 640 2001
KTM ADVENTURE 640 2000
KTM ADVENTURE 640 1999
KTM ADVENTURE 640 R 2007
KTM ADVENTURE 640 R 2006
KTM ADVENTURE 640 R 2005
KTM ADVENTURE 640 R 2004
KTM ADVENTURE 640 R 2003
KTM ADVENTURE 640 R 2002
KTM ADVENTURE 640 R 2001
KTM ADVENTURE 640 R 2000
KTM ADVENTURE 640 R 1999
KTM DUKE 620 1995
KTM DUKE 620 1994
KTM DUKE 620 E 1998
KTM DUKE 620 E 1997
KTM DUKE 620 E 1996
KTM DUKE 640 E 2007
KTM DUKE 640 E 2006
KTM DUKE 640 E 2005
KTM DUKE 640 E 2004
KTM DUKE 640 E 2003
KTM DUKE 640 E 2002
KTM DUKE 640 E 2001
KTM DUKE 640 E 2000
KTM DUKE 640 E 1999
KTM EGS 620 LC4 1998
KTM EGS 620 LC4 1997
KTM EGS 620 LC4 1996
KTM EGS 620 LC4 1995
KTM EGS 620 LC4 1994
KTM EGS 620 LC4 E 1998
KTM EGS 620 LC4 E 1997
KTM EGS 620 LC4 LSE 1998
KTM EGS 620 LC4 LSE 1997
KTM EXC 620 LC4 1999
KTM EXC 620 LC4 1998
KTM EXC 620 LC4 1997
KTM EXC 620 LC4 1996
KTM EXC 620 LC4 1995
KTM EXC 620 LC4 1994
KTM LC4 640 E 2006
KTM LC4 640 E 2005
KTM LC4 640 E 2004
KTM LC4 640 E 2003
KTM LC4 640 E 2002
KTM LC4 640 E 2001
KTM LC4 640 E 2000
KTM LC4 640 E 1999
KTM RXC-E 620 LC4 1997
KTM RXC-E 620 LC4 1996
KTM RXC-E 620 LC4 1995
KTM SC 620 LC4 2001
KTM SC 620 LC4 2000
KTM SC 620 LC4 1999
KTM SC 620 LC4 1998
KTM SC 620 LC4 1997
KTM SC 620 LC4 1996
KTM SC 620 LC4 1995
KTM SC 620 LC4 1994
KTM SC 625 LC4 2002
KTM SMC 625 2006
KTM SMC 625 2005
KTM SMC 625 2004
KTM SX 620 LC4 1999
KTM SX 620 LC4 1998
KTM SX 620 LC4 1997
KTM SX 620 LC4 1996
KTM SX 620 LC4 1995
KTM SX 620 LC4 1994
KTM SXC 620 LC4 1997
KTM SXC 625 2006
KTM SXC 625 2005
KTM SXC 625 2004
KTM SXC 625 2003
KTM TXC 620 LC4 1998
