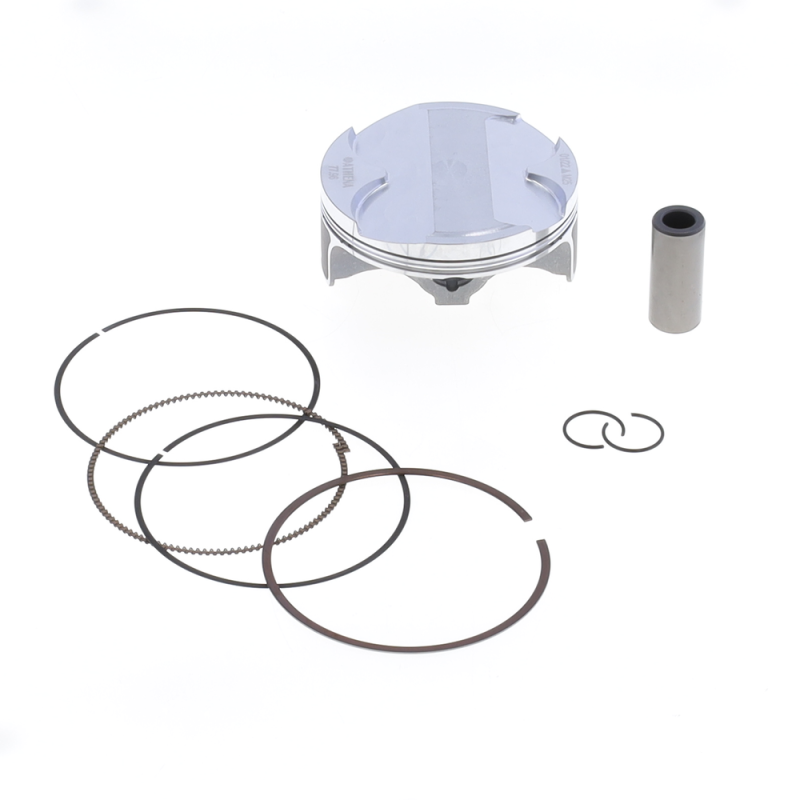

ATHENA Forged Piston for ATHENA cylinder for KAWASAKI KXF 250 2021-2024
€170.90
Tax Included
The piston moves up and down in the cylinder to turn combustion into motion: this kit replaces it along with its rings, pin and clips.
Available in several sizes.
ATHENA offers this piston kit for ATHENA cylinder for KAWASAKI KXF 250 2021-2024. The piston slides in the cylinder and takes the force of the air-fuel combustion, passing it to the connecting rod and crankshaft.
Why choose a forged piston?
Instead of simply being cast, a forged piston is hot-pressed under very high pressure and then machined: its metal is denser and free of air pockets.
- Stronger when hot: it copes better with high revs, overheating and detonation.
- Lighter for the same strength: less stress on the connecting rod and bearings.
- Good to know: depending on the alloy, it expands a little more and is fitted with more clearance; slight noise when cold is normal.
- Why does it cost more? Forging tools, full machining and surface treatments cost more than simple casting.
Why choose ATHENA?
Athena, the Italian manufacturer founded in 1973, is an original-equipment supplier to manufacturers such as KTM and Ducati: the same standards for your replacement parts.
When should you replace the piston on your KAWASAKI KXF 250?
Harder starting, loss of power, blue smoke, oil consumption or a knock when cold: these are the signs of a tired top end.
No manufacturer hour figure for this model. Cross-Mania guideline: compression check every 30 h in hard use and every 60 h for leisure.
Specifications and fitting tips
- Engine: 4-stroke
- Manufacturer part numbers: S5F07800004A (A), S5F07800004C (C)
Available in several sizes: choose the one that matches your cylinder (stamped size or measured bore). Diameters: A = 77.96 mm, C = 77.98 mm.
Spare parts and items to plan
- Piston rings : VERTEX · WISECO
- Top-end gasket kit : PROX 36.4351 · PROX 36.4350
- Spark plug : see the selection
- Coolant : LIQUI MOLY 1 L · TWIN AIR
- 4-stroke engine oil : MOTUL 10W50 · LIQUI MOLY 10W40 1 L
Compatibility
Check the exact model and year of your bike in the list below before ordering.
Fits:
KAWASAKI KXF 250 2024
KAWASAKI KXF 250 2023
KAWASAKI KXF 250 2022
KAWASAKI KXF 250 2021
S5F07800004A
