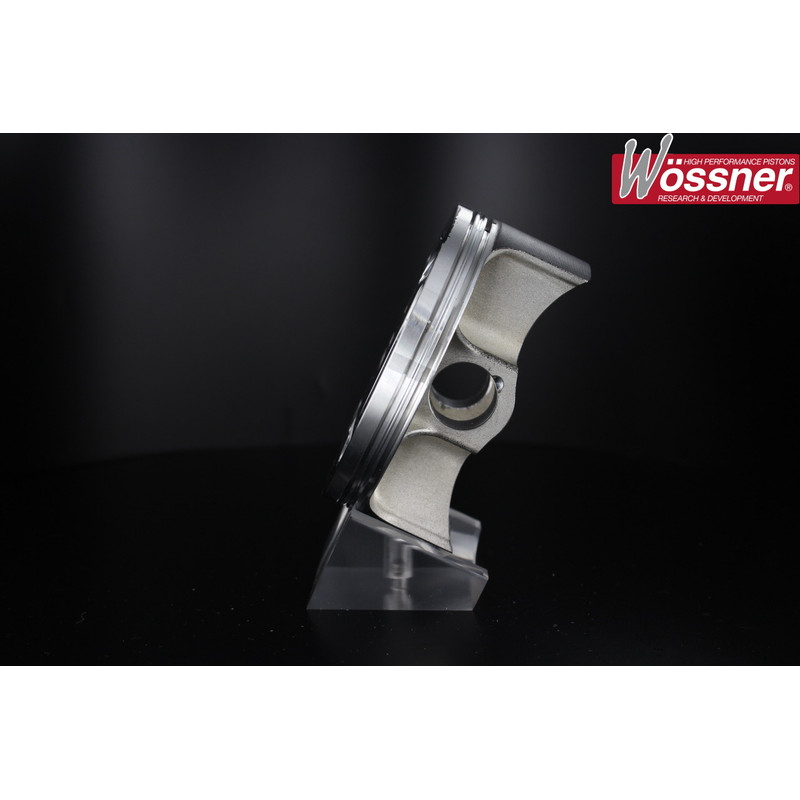

Wössner Forged Piston for KAWASAKI KLX 450, KXF 450 2006-2019

WOSSNER offers this piston kit for KAWASAKI KLX 450, KXF 450 2006-2019. The piston slides in the cylinder and takes the force of the air-fuel combustion, passing it to the connecting rod and crankshaft.

Why choose a forged piston?

Instead of simply being cast, a forged piston is hot-pressed under very high pressure and then machined: its metal is denser and free of air pockets.

• Stronger when hot: it copes better with high revs, overheating and detonation.
• Lighter for the same strength: less stress on the connecting rod and bearings.
• Good to know: depending on the alloy, it expands a little more and is fitted with more clearance; slight noise when cold is normal.
• Why does it cost more? Forging tools, full machining and surface treatments cost more than simple casting.

Why choose WOSSNER?

Wössner has forged its own pistons since 1994: Molykote-coated skirt to reduce friction and ease running-in, kit supplied complete with rings, pin and clips.

When should you replace the piston on your KAWASAKI KLX 450?

Harder starting, loss of power, blue smoke, oil consumption or a knock when cold: these are the signs of a tired top end.

Recommended hours for a top-end rebuild (manufacturer recommendation for the Kawasaki KX 250 F / KX 450 F (four-stroke)):

• Racing: every 15 h (about 6 races).
• Leisure: no Kawasaki figure; Cross-Mania guideline: compression check at around 30 h.

Specifications and fitting tips

• Material: Aluminium
• Specificity: Double Bridge Forging
• Rings Quantity: 2
• Stroke: 4T
• Forged piston
• Anti friction coated skirt

Available in several sizes: choose the one that matches your cylinder (stamped size or measured bore). Diameters: A = 95.95 mm, B = 95.96 mm.

Cross-Mania tip: Measure the cylinder bore before ordering: the piston must match your cylinder size. Follow the manufacturer's break-in procedure and replace the top-end gaskets at the same time.

Also needed with this part

• Top-end gasket kit : CENTAURO · ATHENA
• Spark plug : NGK 6607 · NGK 6508
• 4-stroke engine oil : MOTUL 10W50 · LIQUI MOLY 10W40 1 L
• Air filter : PROX · TWIN AIR

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
KAWASAKI KLX 450 2019
KAWASAKI KLX 450 2018
KAWASAKI KLX 450 2017
KAWASAKI KLX 450 2016
KAWASAKI KLX 450 2015
KAWASAKI KLX 450 2014
KAWASAKI KLX 450 2013
KAWASAKI KLX 450 2012
KAWASAKI KLX 450 2011
KAWASAKI KLX 450 2010
KAWASAKI KLX 450 2009
KAWASAKI KLX 450 2008
KAWASAKI KXF 450 2008
KAWASAKI KXF 450 2007
KAWASAKI KXF 450 2006
