ATHENA Piston Pin 22x14x51 mm for KTM LC4 620, LC4 640, SXC 625, YAMAHA TT 600, XT 600 and HUSQVARNA TC 610, TE 610 1984-2009

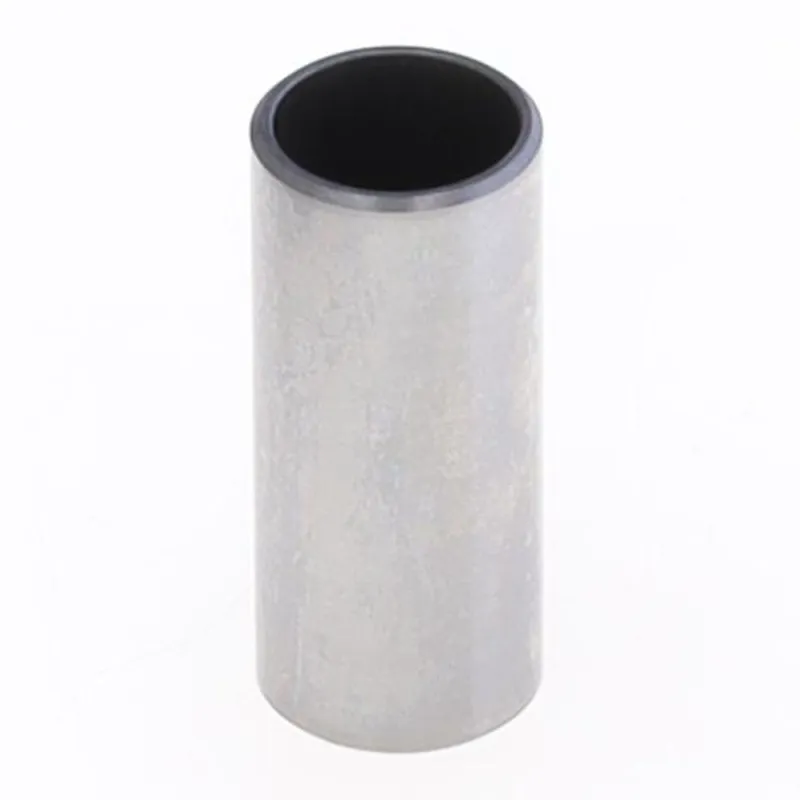

The ATHENA 22x14x51 mm S41317009 piston pin is designed for KTM LC4 620, LC4 640, SXC 625, YAMAHA TT 600, XT 600 and HUSQVARNA TC 610, TE 610 from 1984 to 2009. The piston pin connects the piston to the connecting rod and takes the full force of every combustion. It works in the small end and in the piston bosses: over the hours it wears or gets marked, and play appears.

Specifications

• Brand: ATHENA
• Manufacturer part number: S41317009
• EAN code: 8051757224418
• For ATHENA piston
• Weight: 80 g
• Engine: 4-stroke

When to replace it?

• Metallic knocking at idle or when closing the throttle.
• Pin marked, blued or scored on teardown.
• Noticeable play between the pin and the small end or the piston bosses.

Check the pin at every piston change and replace it as soon as it is marked, blued or has play. A new pin always goes in with new circlips.

Fitting tips

1. Check that the pin diameter and length match your piston (see specifications).
2. Oil the pin, the small end and the piston bosses, then push the pin in by hand, without forcing it.
3. Fit new piston pin circlips, gap opposite the notch, and check they sit properly in their groove.

Why ATHENA?

Athena, an Italian company founded in 1973 near Vicenza, designs gaskets, pistons and cylinder kits for motorcycles. An OEM supplier to KTM, Ducati, Fantic, Piaggio and Triumph and a partner of the MXGP world championship, it develops its parts on the test bench and on the track with racing teams.

Spare parts and items to plan

• Piston pin clips : WOSSNER CW22 · WOSSNER CW18
• Top-end gasket kit : CENTAURO 731A625TP · CENTAURO P655453

Frequently asked questions

Is the pin supplied with the piston?
Yes, a new piston comes with its pin. This part is for replacing a worn or lost pin, or for completing a piston sold on its own.

Are the circlips included?
No: plan for new piston pin circlips, as they are never reused.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
