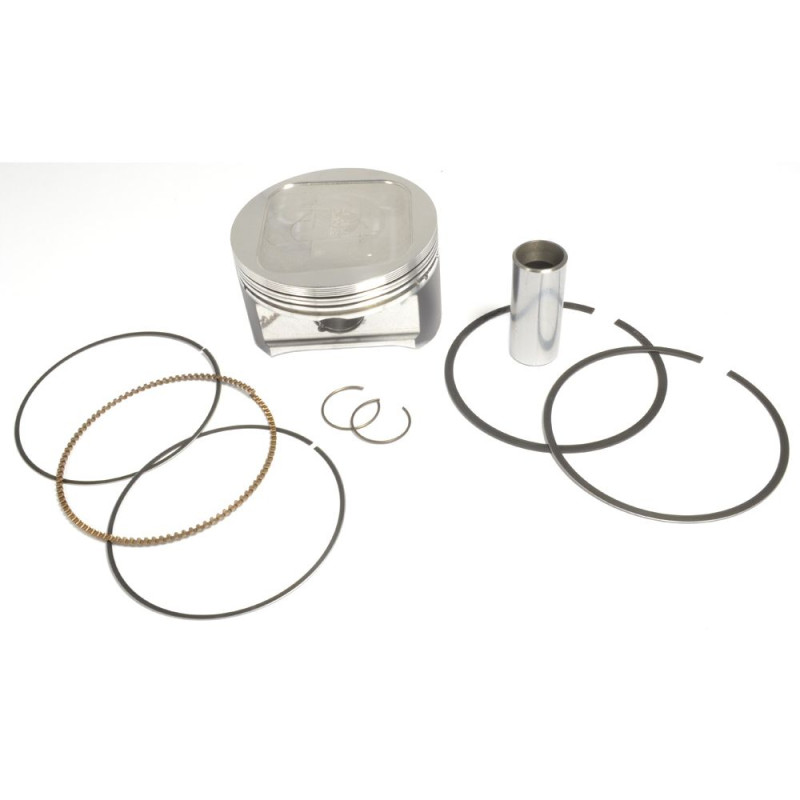

ATHENA Racing Forged Piston for HONDA XR 600 1985-2000
€243.90
Tax Included
The piston moves up and down in the cylinder to turn combustion into motion: this kit replaces it along with its rings, pin and clips.
ATHENA offers this piston kit for HONDA XR 600 1985-2000. The piston slides in the cylinder and takes the force of the air-fuel combustion, passing it to the connecting rod and crankshaft.
Why choose a forged piston?
Instead of simply being cast, a forged piston is hot-pressed under very high pressure and then machined: its metal is denser and free of air pockets.
- Stronger when hot: it copes better with high revs, overheating and detonation.
- Lighter for the same strength: less stress on the connecting rod and bearings.
- Good to know: depending on the alloy, it expands a little more and is fitted with more clearance; slight noise when cold is normal.
- Why does it cost more? Forging tools, full machining and surface treatments cost more than simple casting.
Why choose ATHENA?
Athena, the Italian manufacturer founded in 1973, is an original-equipment supplier to manufacturers such as KTM and Ducati: the same standards for your replacement parts.
When should you replace the piston on your HONDA XR 600?
Harder starting, loss of power, blue smoke, oil consumption or a knock when cold: these are the signs of a tired top end.
No manufacturer hour figure for this model. Cross-Mania guideline: compression check every 50 h in hard use and every 100 h for leisure.
Specifications and fitting tips
- Engine: 4-stroke
- Size : 97.44 mm
- Manufacturer part number: S4F097500020
Spare parts and items to plan
- Piston rings : see the selection
- Top-end gasket kit : CENTAURO · ATHENA
- Spark plug : NGK 650 L · NGK
- Coolant : LIQUI MOLY 1 L · TWIN AIR
- 4-stroke engine oil : LIQUI MOLY 10W40 1 L · MOTUL 10W50
Compatibility
Check the exact model and year of your bike in the list below before ordering.
Fits:
HONDA XR 600 2000
HONDA XR 600 1999
HONDA XR 600 1998
HONDA XR 600 1997
HONDA XR 600 1996
HONDA XR 600 1995
HONDA XR 600 1994
HONDA XR 600 1993
HONDA XR 600 1992
HONDA XR 600 1991
HONDA XR 600 1990
HONDA XR 600 1989
HONDA XR 600 1988
HONDA XR 600 1987
HONDA XR 600 1986
HONDA XR 600 1985
S4F097500020
5 Items
Specific References
Click on your bike to see all compatible parts.
No customer reviews for the moment.
