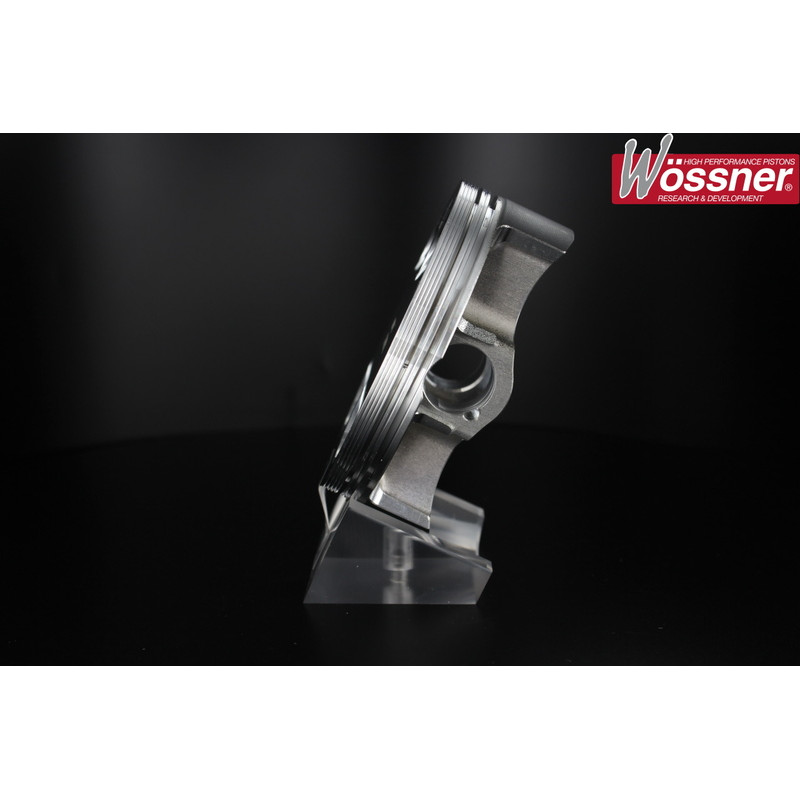

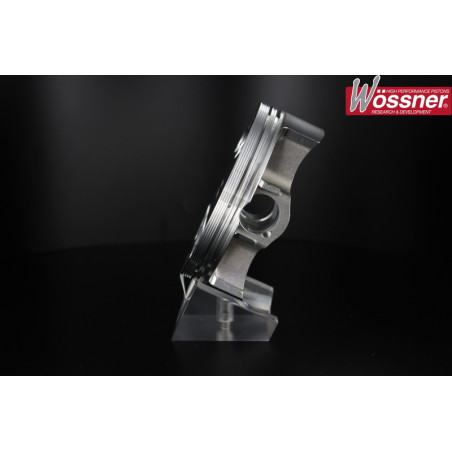

Wössner Forged Piston for HONDA CRF 450 2009-2012
€222.90
Tax Included
The piston moves up and down in the cylinder to turn combustion into motion: this kit replaces it along with its rings, pin and clips.
Available in several sizes.
WOSSNER offers this piston kit for HONDA CRF 450 2009-2012. The piston slides in the cylinder and takes the force of the air-fuel combustion, passing it to the connecting rod and crankshaft.
Why choose a forged piston?
Instead of simply being cast, a forged piston is hot-pressed under very high pressure and then machined: its metal is denser and free of air pockets.
- Stronger when hot: it copes better with high revs, overheating and detonation.
- Lighter for the same strength: less stress on the connecting rod and bearings.
- Good to know: depending on the alloy, it expands a little more and is fitted with more clearance; slight noise when cold is normal.
- Why does it cost more? Forging tools, full machining and surface treatments cost more than simple casting.
Why choose WOSSNER?
Wössner has forged its own pistons since 1994: Molykote-coated skirt to reduce friction and ease running-in, kit supplied complete with rings, pin and clips.
When should you replace the piston on your HONDA CRF 450?
Harder starting, loss of power, blue smoke, oil consumption or a knock when cold: these are the signs of a tired top end.
Recommended hours for a top-end rebuild (manufacturer recommendation for the Honda CRF R / RX / X):
- Racing: every 15 h (about 6 races).
- Leisure: no Honda figure; Cross-Mania guideline: compression check at around 30 h.
Specifications and fitting tips
- Material: Aluminium
- Rings Quantity: 2
- Stroke: 4T
- Forged piston
- Anti friction coated skirt
Available in several sizes: choose the one that matches your cylinder (stamped size or measured bore). Diameters: A = 95.96 mm, B = 95.97 mm, C = 95.98 mm.
Cross-Mania tip: Measure the cylinder bore before ordering: the piston must match your cylinder size. Follow the manufacturer's break-in procedure and replace the top-end gaskets at the same time.
Also needed with this part
- Top-end gasket kit : ITALKIT · CENTAURO
- Spark plug : NGK 7764 · NGK 6213
- 4-stroke engine oil : LIQUI MOLY 10W40 1 L · MOTUL 10W50
- Air filter : TECNIUM · PROX 450 L
Compatibility
Check the exact model and year of your bike in the list below before ordering.
Fits:
HONDA CRF 450 2012
HONDA CRF 450 2011
HONDA CRF 450 2010
HONDA CRF 450 2009
8739DA
