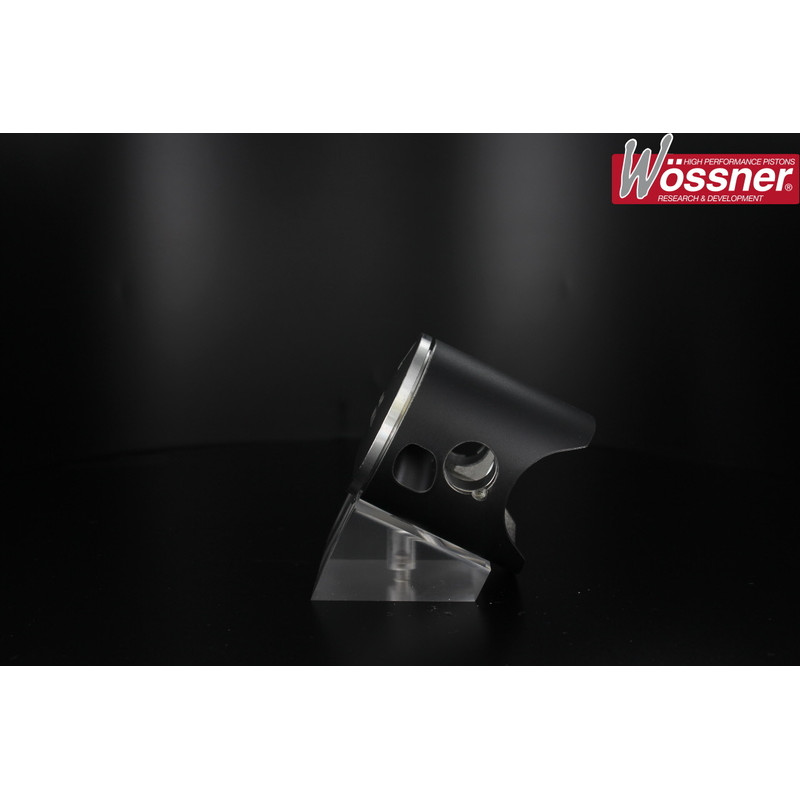

Wössner Forged Piston for HM CRE 125, MOTARD 125 and HONDA CR 125 2003-2008
€130.90
Tax Included
The piston moves up and down in the cylinder to turn combustion into motion: this kit replaces it along with its rings, pin and clips.
WOSSNER offers this piston kit for HM CRE 125, MOTARD 125 and HONDA CR 125 2003-2008. The piston slides in the cylinder and takes the force of the air-fuel combustion, passing it to the connecting rod and crankshaft.
Why choose a forged piston?
Instead of simply being cast, a forged piston is hot-pressed under very high pressure and then machined: its metal is denser and free of air pockets.
- Stronger when hot: it copes better with high revs, overheating and detonation.
- Lighter for the same strength: less stress on the connecting rod and bearings.
- Good to know: depending on the alloy, it expands a little more and is fitted with more clearance; slight noise when cold is normal.
- Why does it cost more? Forging tools, full machining and surface treatments cost more than simple casting.
Why choose WOSSNER?
Wössner has forged its own pistons since 1994: Molykote-coated skirt to reduce friction and ease running-in, kit supplied complete with rings, pin and clips.
When should you replace the piston?
Harder starting, loss of power, blue smoke, oil consumption or a knock when cold: these are the signs of a tired top end.
Recommended hours for a top-end rebuild (manufacturer recommendation for the Honda CR 125 R / CR 250 R):
- Racing: every 7.5 h.
- Leisure: no Honda figure; Cross-Mania guideline: compression check at around 15 h.
Specifications and fitting tips
- Material: Aluminium
- Piston type: Forged
- Oversize Letter: A
- Rings Quantity: 1
- Stroke: 2T
- Forged piston
- Manufacturer part number: 8100DA
Cross-Mania tip: Measure the cylinder bore before ordering: the piston must match your cylinder size. Follow the manufacturer's break-in procedure and replace the top-end gaskets at the same time.
Also needed with this part
- Top-end gasket kit : ATHENA · PROX
- Spark plug : NGK
- 2-stroke oil : LIQUI MOLY 1 L 3065 · LIQUI MOLY 1 L 3063
- Air filter : TWIN AIR 160000GP · TWIN AIR 150204
Compatibility
Check the exact model and year of your bike in the list below before ordering.
Fits:
HM CRE 125 2004
HM MOTARD 125 2008
HM MOTARD 125 2007
HM MOTARD 125 2006
HM MOTARD 125 2005
HM MOTARD 125 2004
HM MOTARD 125 2003
HONDA CR 125 2004
8100DA
